A9172107

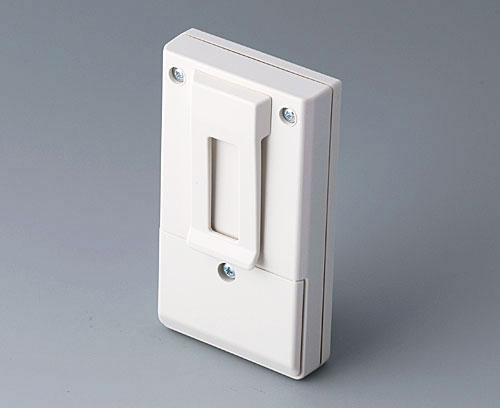

Belt/Pocket clip

Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply

1 belt/pocket clip, assembly kit

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9172107

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9010065

FLAT-PACK CASES 100 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
100x50x25mm
A9070107 DATEC-POCKET-BOX S

A9070107

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070107

DATEC-POCKET-BOX S
产品已添加到关注清单中

off-white RAL 9002
85x46x16mm
A9070117 DATEC-POCKET-BOX S

A9070117

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070117

DATEC-POCKET-BOX S
产品已添加到关注清单中

off-white RAL 9002
85x46x16mm
A9071107 DATEC-POCKET-BOX M

A9071107

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1,5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071107

DATEC-POCKET-BOX M
产品已添加到关注清单中

off-white RAL 9002
105x58x18.5mm
A9071117 DATEC-POCKET-BOX M

A9071117

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071117

DATEC-POCKET-BOX M
产品已添加到关注清单中

off-white RAL 9002
105x58x18.5mm
A9072107 DATEC-POCKET-BOX L

A9072107

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072107

DATEC-POCKET-BOX L
产品已添加到关注清单中

off-white RAL 9002
120x65x22mm
A9072117 DATEC-POCKET-BOX L

A9072117

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072117

DATEC-POCKET-BOX L
产品已添加到关注清单中

off-white RAL 9002
120x65x22mm
A9072127 DATEC-POCKET-BOX L

A9072127

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072127

DATEC-POCKET-BOX L
产品已添加到关注清单中

off-white RAL 9002
120x65x22mm

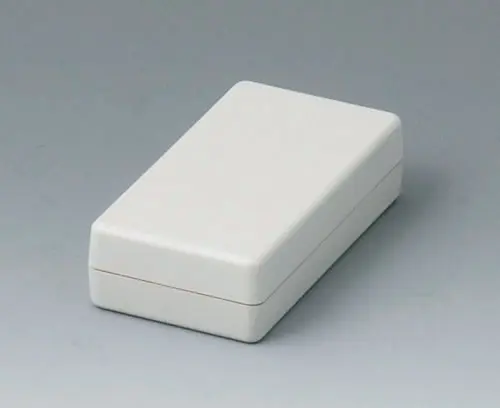

A9404331 SHELL-TYPE CASES G 85, Vers. I

A9404331

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9404331

SHELL-TYPE CASES G 85, Vers. I
产品已添加到关注清单中

off-white RAL 9002
45x85x22mm
A9404333 SHELL-TYPE CASES V 85, Vers. I

A9404333

SHELL-TYPE CASES V 85, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9404333

SHELL-TYPE CASES V 85, Vers. I
产品已添加到关注清单中

off-white RAL 9002
45x85x22mm
A9404341 SHELL-TYPE CASES G 85, Vers. I

A9404341

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version without battery compartment.

Supply 1 top and base part, assembly kit

A9404341

SHELL-TYPE CASES G 85, Vers. I
产品已添加到关注清单中

off-white RAL 9002
45x85x33mm

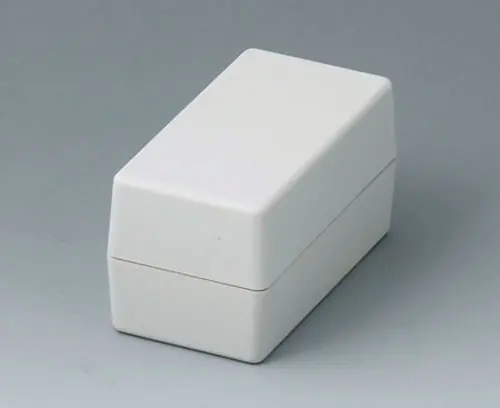

A9404441 SHELL-TYPE CASES G 85, Vers. I

A9404441

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9404441

SHELL-TYPE CASES G 85, Vers. I
产品已添加到关注清单中

off-white RAL 9002
45x85x45mm
A9406331 SHELL-TYPE CASES G 110, Vers. I

A9406331

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406331

SHELL-TYPE CASES G 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x33mm
A9406333 SHELL-TYPE CASES V 110, Vers. I

A9406333

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406333

SHELL-TYPE CASES V 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x33mm
A9406341 SHELL-TYPE CASES G 110, Vers. I

A9406341

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406341

SHELL-TYPE CASES G 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x45mm
A9406343 SHELL-TYPE CASES V 110, Vers. I

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406343

SHELL-TYPE CASES V 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x45mm
A9406351 SHELL-TYPE CASES G 110, Vers. I

A9406351

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406351

SHELL-TYPE CASES G 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x33.5mm
A9406441 SHELL-TYPE CASES G 110, Vers. I

A9406441

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406441

SHELL-TYPE CASES G 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x57mm
A9406443 SHELL-TYPE CASES V 110, Vers. I

A9406443

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406443

SHELL-TYPE CASES V 110, Vers. I
产品已添加到关注清单中

off-white RAL 9002
72x114x57mm

Customising options for A9172107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
off-white RAL 9002
标准根据
RoHS compliant
REACH compliant
长度
62 mm
宽度
30 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
4.5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
