A9172109

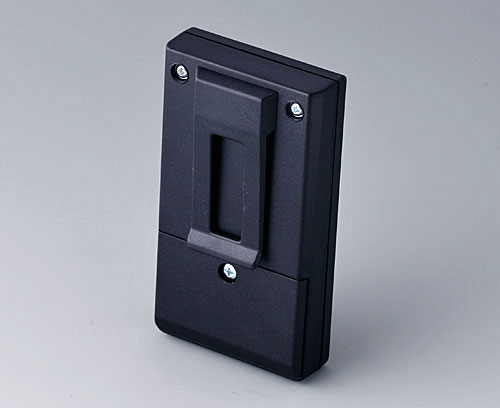

Belt/Pocket clip

Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply

1 belt/pocket clip, assembly kit

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9172109

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
A9070109 DATEC-POCKET-BOX S

A9070109

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070109

DATEC-POCKET-BOX S
产品已添加到关注清单中

black RAL 9005
85x46x16mm
A9070119 DATEC-POCKET-BOX S

A9070119

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070119

DATEC-POCKET-BOX S
产品已添加到关注清单中

black RAL 9005
85x46x16mm
A9070209 DATEC-POCKET-BOX S

A9070209

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070209

DATEC-POCKET-BOX S
产品已添加到关注清单中

black RAL 9005
85x46x16mm
A9070219 DATEC-POCKET-BOX S

A9070219

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

A9070219

DATEC-POCKET-BOX S
产品已添加到关注清单中

black RAL 9005
85x46x16mm
A9071109 DATEC-POCKET-BOX M

A9071109

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071109

DATEC-POCKET-BOX M
产品已添加到关注清单中

black RAL 9005
105x58x18.5mm
A9071119 DATEC-POCKET-BOX M

A9071119

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071119

DATEC-POCKET-BOX M
产品已添加到关注清单中

black RAL 9005
105x58x18.5mm
A9071209 DATEC-POCKET-BOX M

A9071209

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the ouside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071209

DATEC-POCKET-BOX M
产品已添加到关注清单中

black RAL 9005
105x58x18.5mm
A9071219 DATEC-POCKET-BOX M

A9071219

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

A9071219

DATEC-POCKET-BOX M
产品已添加到关注清单中

black RAL 9005
105x58x18.5mm
A9072109 DATEC-POCKET-BOX L

A9072109

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072109

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm
A9072119 DATEC-POCKET-BOX L

A9072119

DATEC-POCKET-BOX L Robust pocket box wit sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072119

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm
A9072129 DATEC-POCKET-BOX L

A9072129

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072129

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm
A9072209 DATEC-POCKET-BOX L

A9072209

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072209

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm
A9072219 DATEC-POCKET-BOX L

A9072219

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072219

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm
A9072229 DATEC-POCKET-BOX L

A9072229

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

A9072229

DATEC-POCKET-BOX L
产品已添加到关注清单中

black RAL 9005
120x65x22mm

Customising options for A9172109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
长度
62 mm
宽度
30 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
4.5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
