手柄

手柄

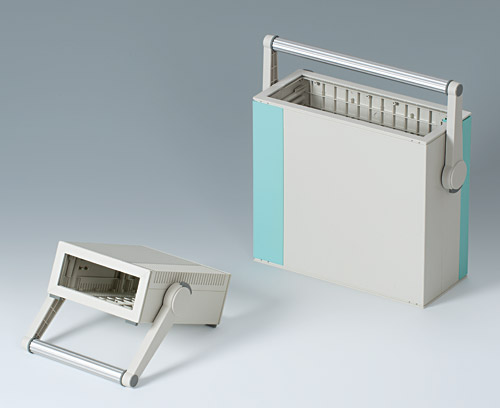

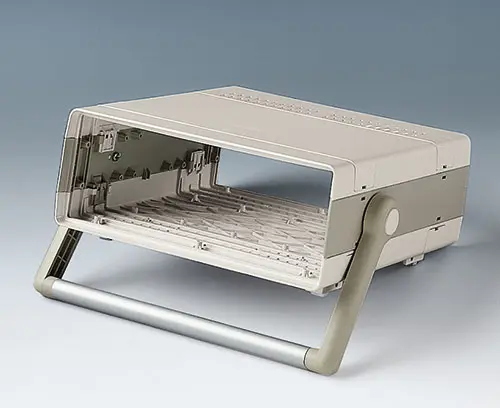

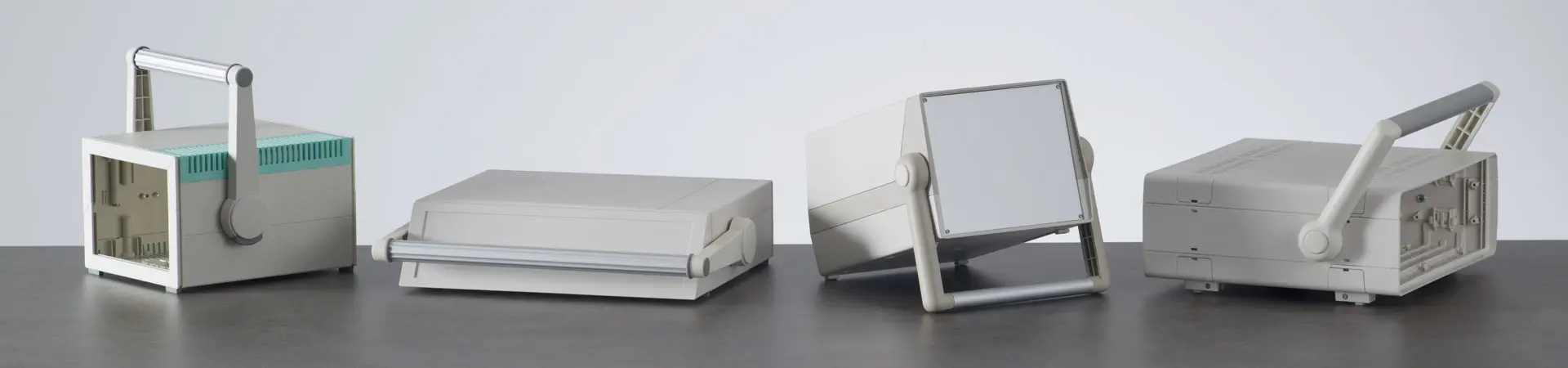

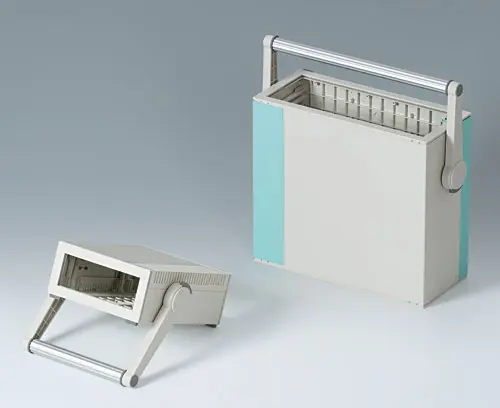

可旋转携带手柄或安装支架由塑料或锌压铸而成。相匹配的适配机盒宽度的阳极氧化铝套管作为单独的销售件。

  • 选择所有项目
A9300014 Side arm kit

A9300014

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile (AS050740) extrusions in the required length are available as separate accessory (on demand). The length of the profile has to be 26 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

关闭

A9300014

Side arm kit Zinc
off-white RAL 9002

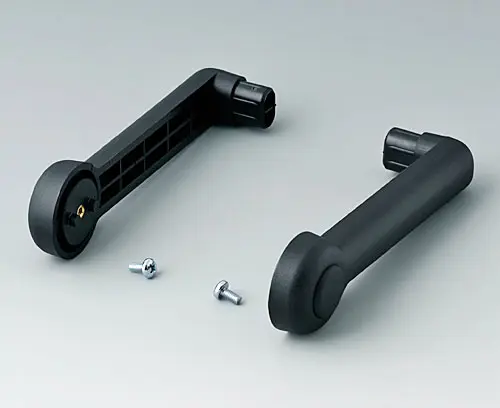

A9300015 Side arm kit

A9300015

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

关闭

A9300015

Side arm kit PA 6 (UL 94 HB)
black RAL 9005

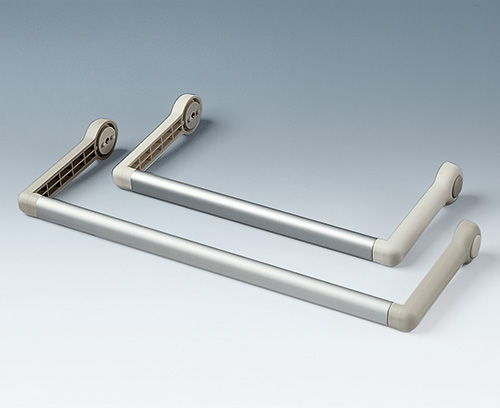

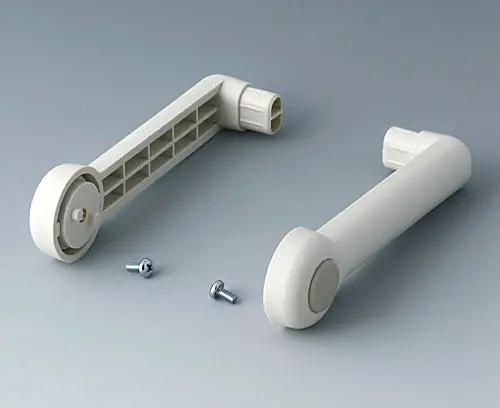

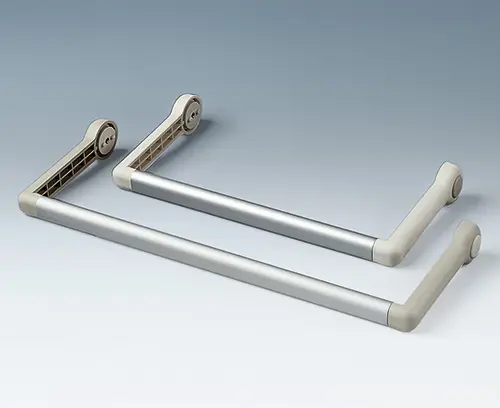

A9300016 Side arm kit

A9300016

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

关闭

A9300016

Side arm kit PA 6
off-white RAL 9002

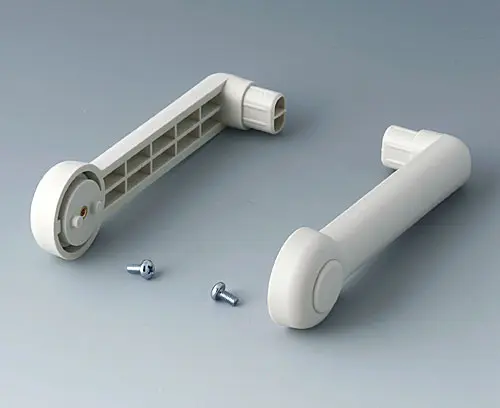

A9300017 Side arm kit

A9300017

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

关闭

A9300017

Side arm kit PA 6
off-white RAL 9002

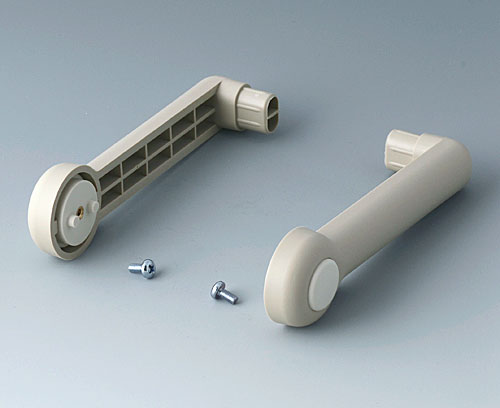

A9300018 Side arm kit

A9300018

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

关闭

A9300018

Side arm kit PA 6
pebble grey RAL 7032

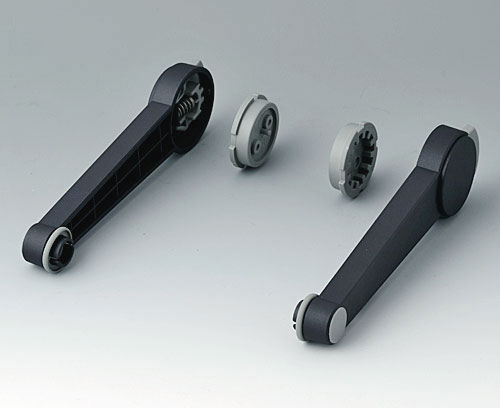

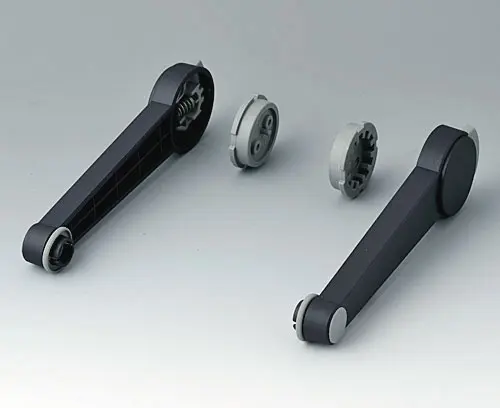

A9300522 Side arm kit

A9300522

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

关闭

A9300522

Side arm kit PA 6 (UL 94 HB)
black RAL 9005

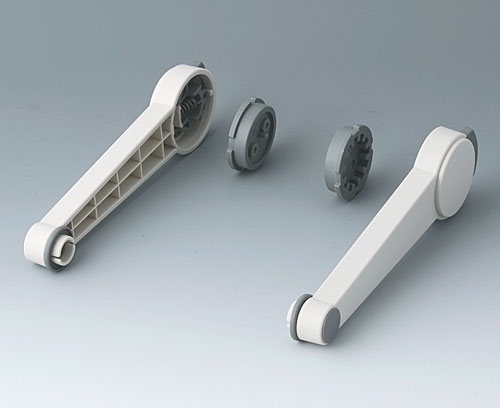

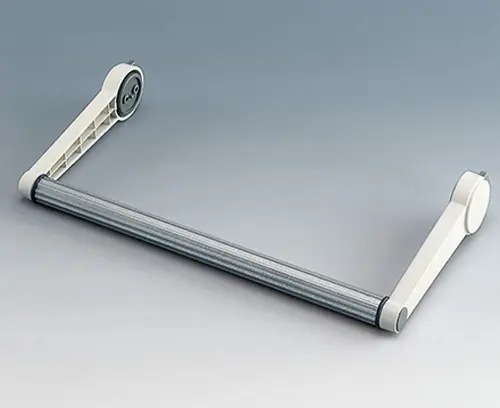

A9300722 Side arm kit

A9300722

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

关闭

A9300722

Side arm kit PA 6
off-white RAL 9002
A9300822 Side arm kit

A9300822

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

关闭

A9300822

Side arm kit PA 6
light grey RAL 7035
