Hand-Held-Boxes 测量仪器盒

封装测量仪器的手持盒

成熟和实惠的口袋格式的手持盒。

  • 预备好安装数字和模拟显示器
  • 屏板保护显示器，使用粘膜使安装简单

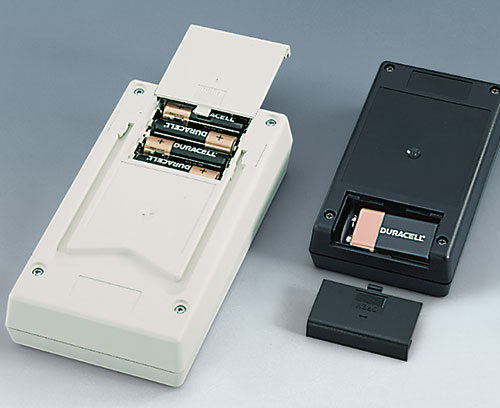

  • 适配 C、AA 和 9 V 电池的电池仓
  • 卡夹式电池盒盖使电池更换快捷
  • 机盒无/有开关摇杆（类型 P）
  • 机盒下部前面上的凸起用于连接器安装

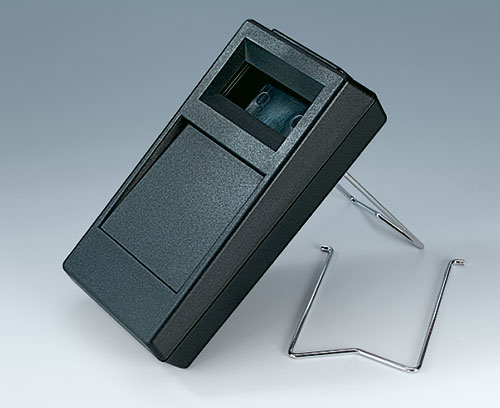

  • 倾斜放置架达到符合人体工程学的视角
  • 操作区域凹陷，以保护膜键盘 (类型 M, N)
  • 固定柱用于安装电路板和安装组件
PDF 导出

应用范围

用于安装数字和模拟显示器的实用手持盒。在测量和控制工程应用广泛，例如使用于电流与电压测试仪、电场强度计，数字温度计等。

A9060007 HAND-HELD-BOX P, Vers. I

A9060007

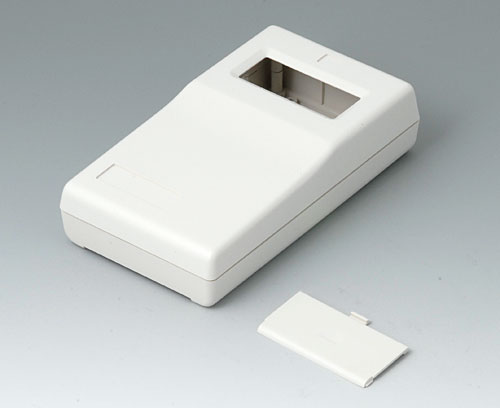

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

A9060007

HAND-HELD-BOX P, Vers. I
产品已添加到关注清单中

off-white RAL 9002
145x80x36.5mm
A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

A9060009

HAND-HELD-BOX P, Vers. I
产品已添加到关注清单中

black RAL 9005
145x80x36.5mm

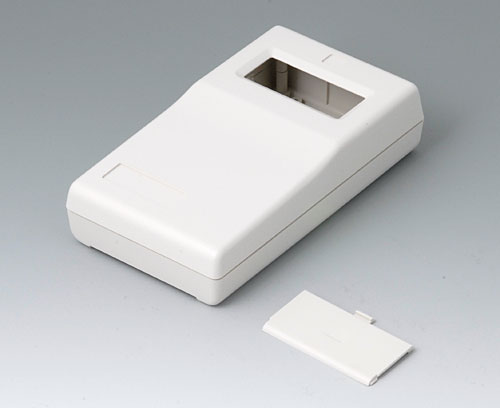

A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

A9060017

HAND-HELD-BOX P, Vers. II
产品已添加到关注清单中

off-white RAL 9002
145x80x36.5mm

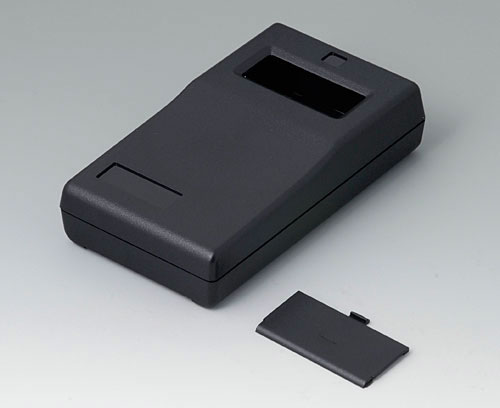

A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

A9060019

HAND-HELD-BOX P, Vers. II
产品已添加到关注清单中

black RAL 9005
145x80x36.5mm
A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061017

HAND-HELD-BOX N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
180x100x44mm

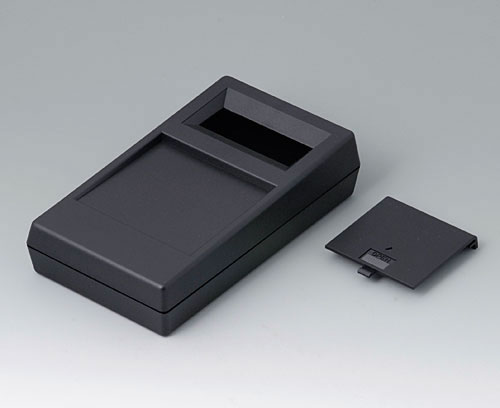

A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061019

HAND-HELD-BOX N, Vers. I
产品已添加到关注清单中

black RAL 9005
180x100x44mm

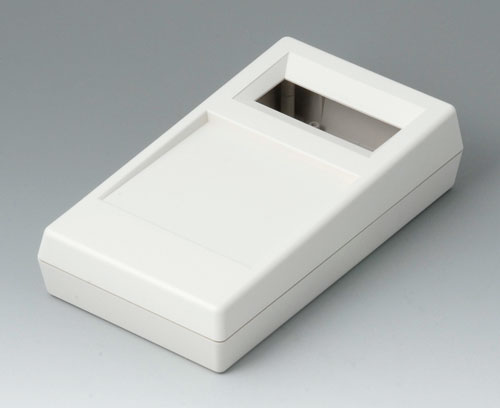

A9061117 HAND-HELD-BOX N, Vers. II

A9061117

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

A9061117

HAND-HELD-BOX N, Vers. II
产品已添加到关注清单中

off-white RAL 9002
180x100x44mm

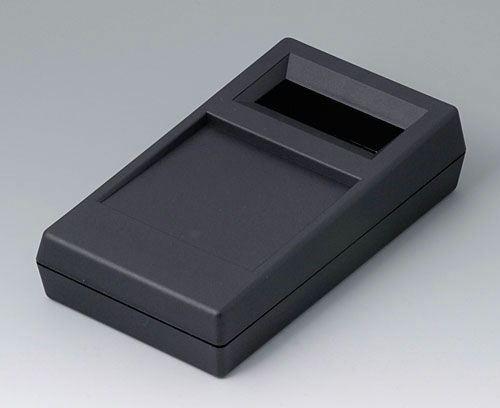

A9061119 HAND-HELD-BOX N, Vers. II

A9061119

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

A9061119

HAND-HELD-BOX N, Vers. II
产品已添加到关注清单中

black RAL 9005
180x100x44mm

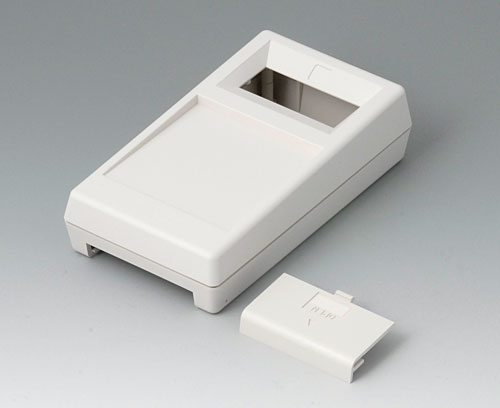

A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

A9062017

HAND-HELD-BOX M, Vers. I
产品已添加到关注清单中

off-white RAL 9002
145x80x38.5mm

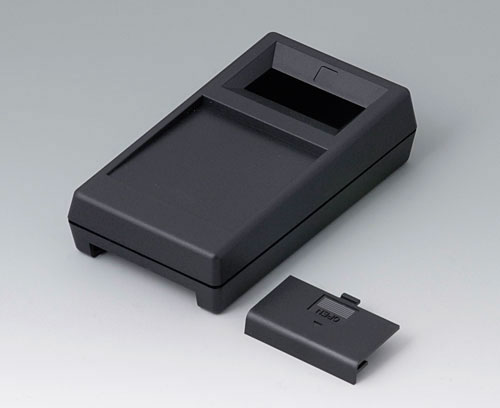

A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

A9062019

HAND-HELD-BOX M, Vers. I
产品已添加到关注清单中

black RAL 9005
145x80x38.5mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中

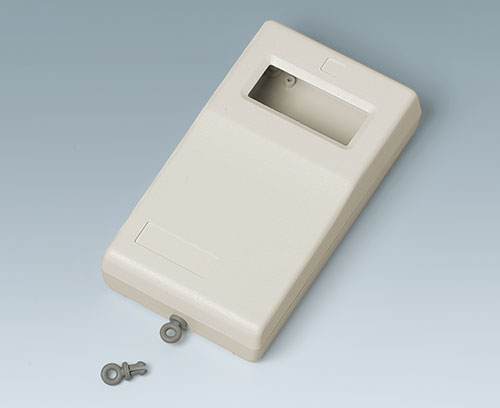

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
产品已添加到关注清单中

volcano

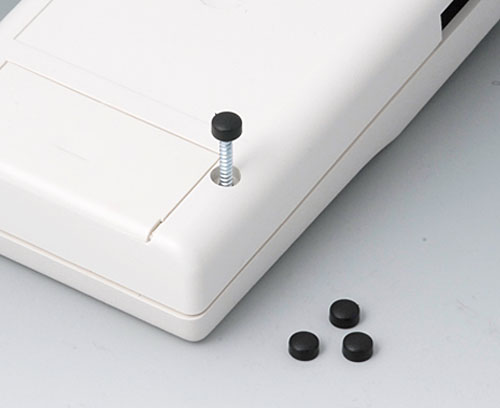

A9160002 Cover plug

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

A9160002

Cover plug
产品已添加到关注清单中
black RAL 9005
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中

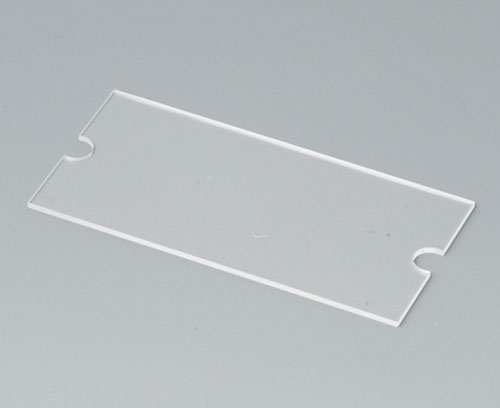

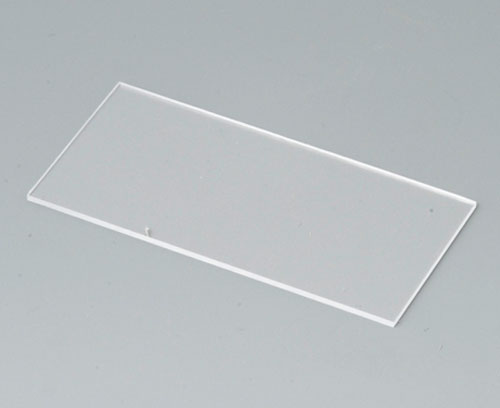

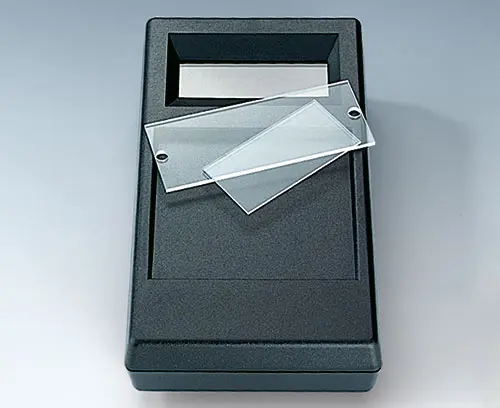

A9160004 Display window P

A9160004

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

A9160004

Display window P
产品已添加到关注清单中

transparent
60x30x1mm
A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

A9160005

Display window M
产品已添加到关注清单中

transparent
60x30x1mm
A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

A9160006

Adhesive foil P/M
产品已添加到关注清单中

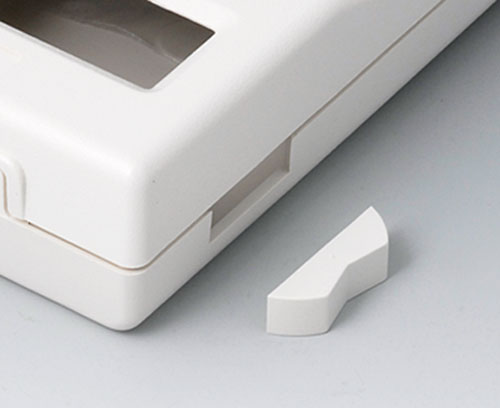

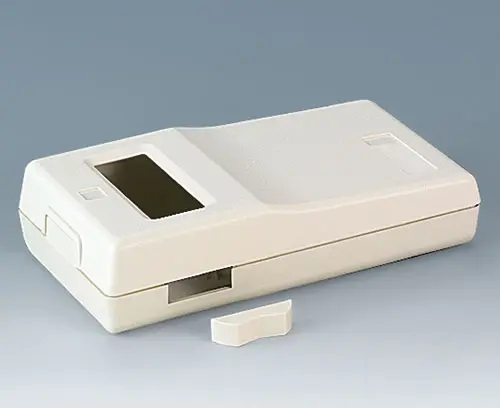

A9160007 Switch cap

A9160007

Switch cap For rocker-switch application.

Supply 1 switch cap

A9160007

Switch cap
产品已添加到关注清单中

off-white RAL 9002
A9160009 Switch cap

A9160009

Switch cap For rocker switch-application.

Supply 1 switch cap

A9160009

Switch cap
产品已添加到关注清单中

black RAL 9005

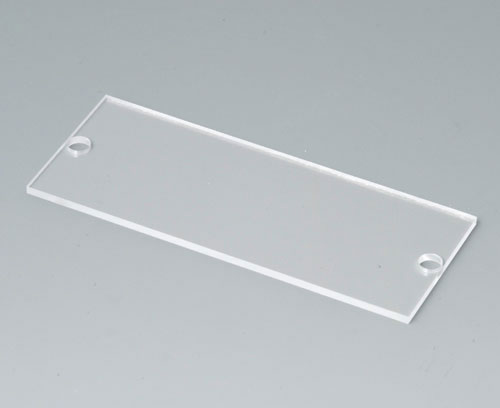

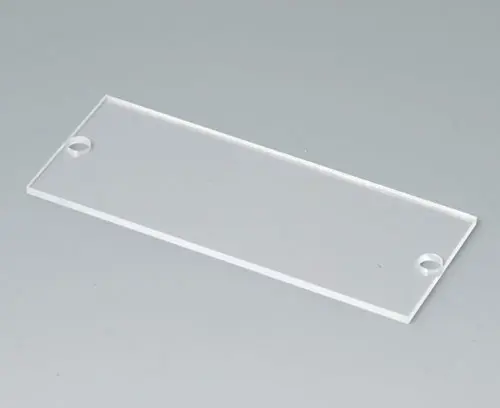

A9161004 Display window N

A9161004

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

A9161004

Display window N
产品已添加到关注清单中

transparent
90x36x2mm

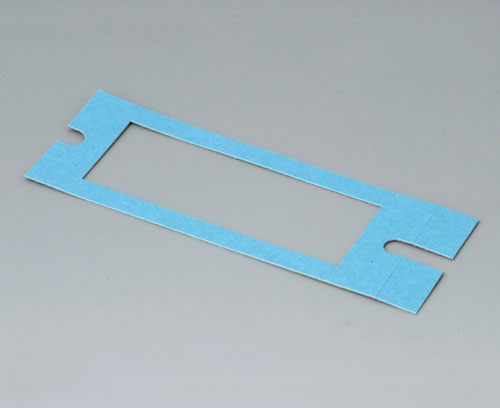

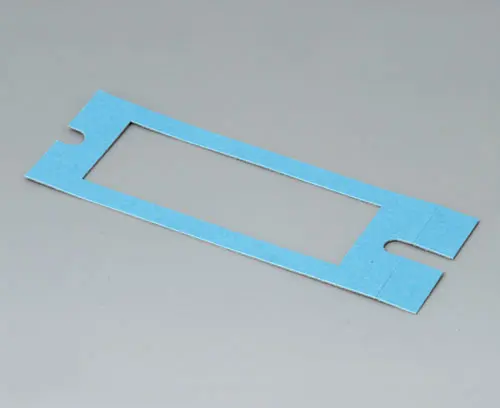

A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

A9161005

Adhesive foil N
产品已添加到关注清单中
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

A9190013

Set of battery clips, 4 x AA
产品已添加到关注清单中

nickel-plated
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
产品已添加到关注清单中
transparent
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
产品已添加到关注清单中

50x25x4mm

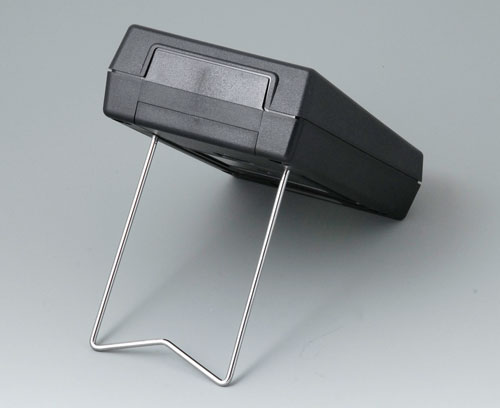

A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250807

Tilt foot bar
产品已添加到关注清单中

off-white RAL 9002
A9250809 Tilt foot bar

A9250809

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250809

Tilt foot bar
产品已添加到关注清单中

black RAL 9005
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250817

Tilt foot bar
产品已添加到关注清单中

off-white RAL 9002
A9250819 Tilt foot bar

A9250819

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250819

Tilt foot bar
产品已添加到关注清单中

black RAL 9005

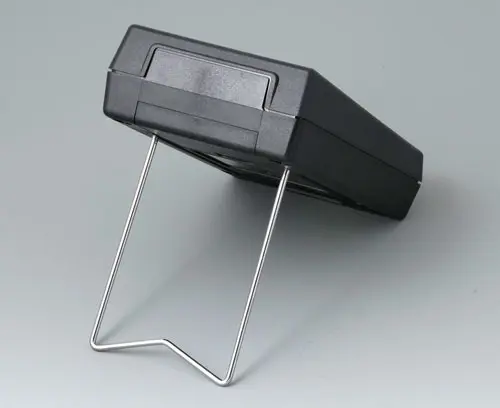

A9361009 Tilt foot bar

A9361009

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

A9361009

Tilt foot bar
产品已添加到关注清单中

chromed

产品类型用于 Hand-Held-Boxes 测量仪器盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
