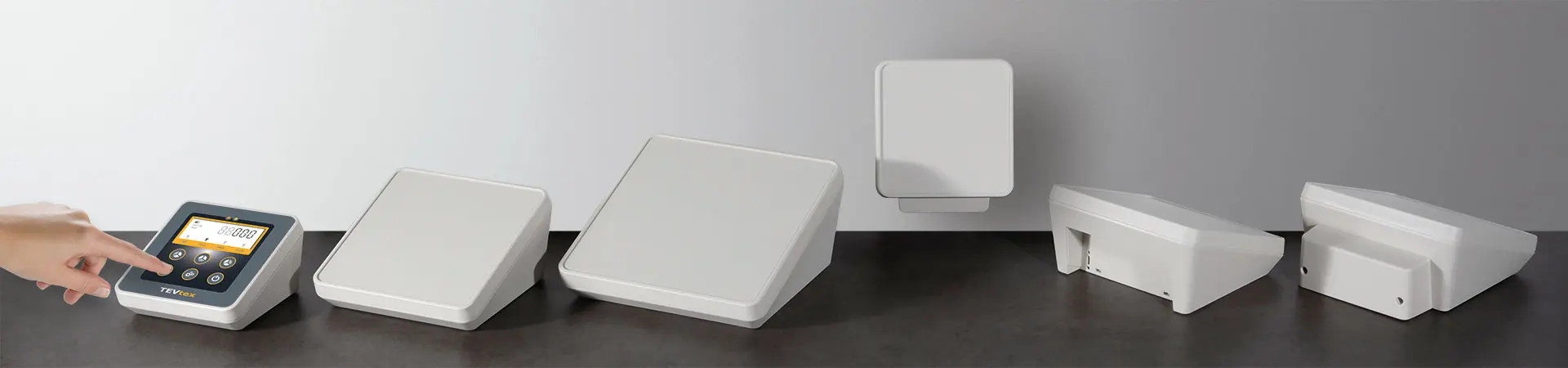

Protec 方形调控器

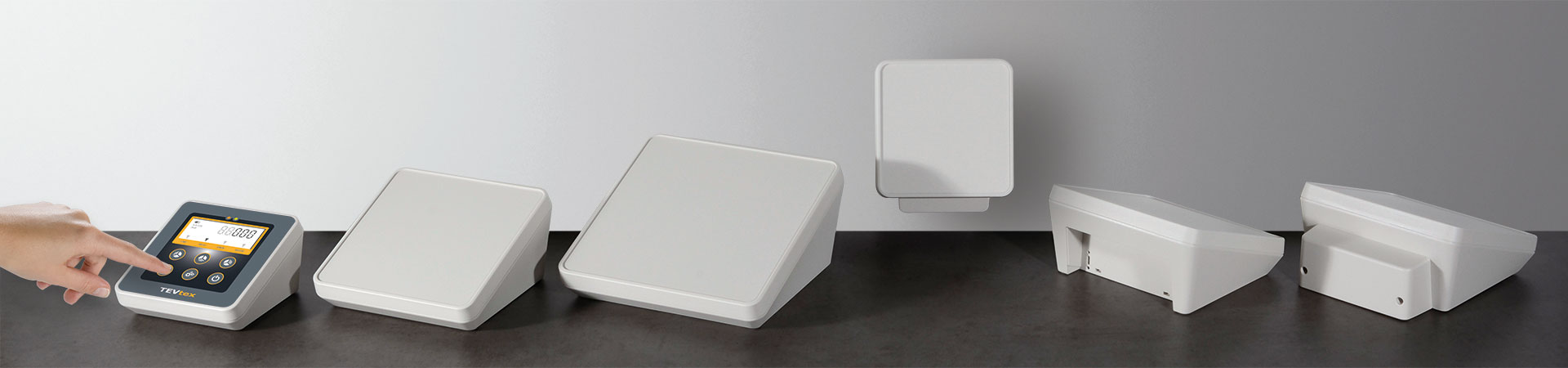

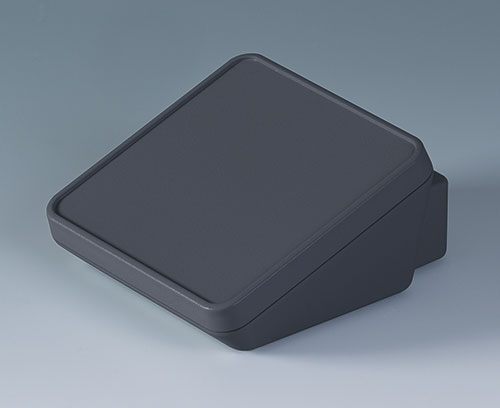

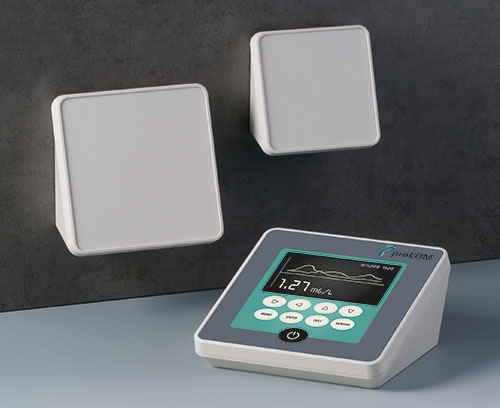

方形调控器机盒的特点是基本形状正方但具备柔软的圆边,由此,其墙壁和桌式机盒既特别适合室内也非常适合室外的现代电子应用。

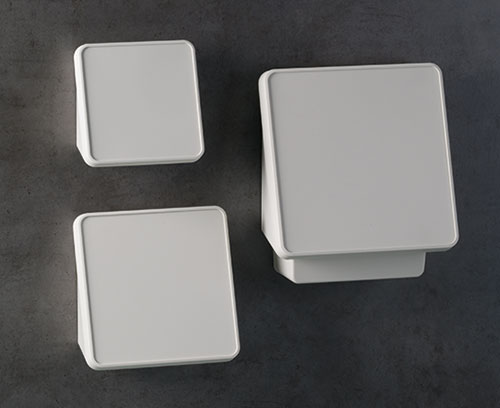

- 三种规格 140、180、220,每种规格均提供以下款式:

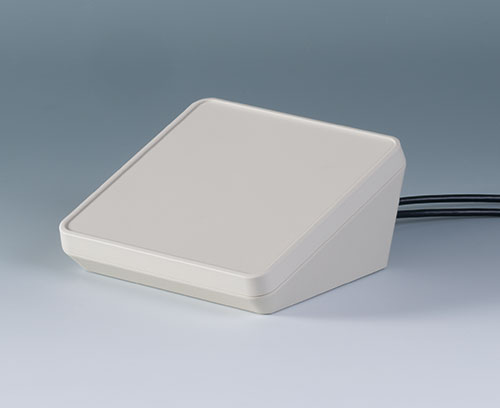

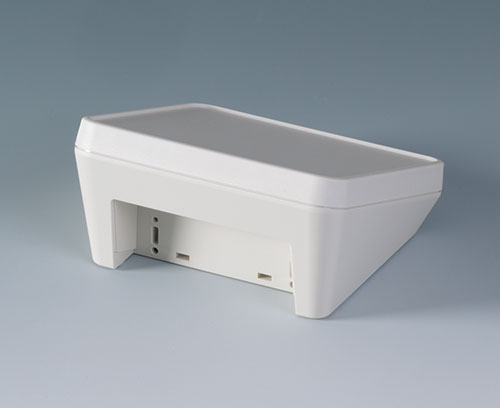

款式 I

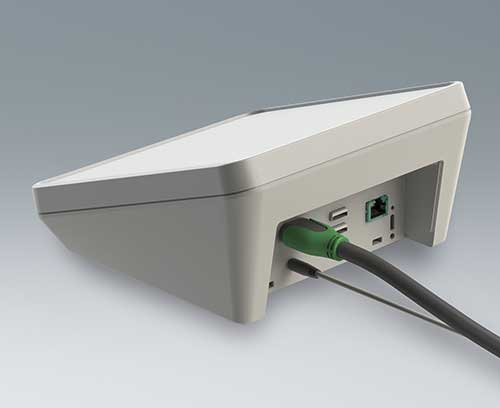

具备一凹陷区域,用于安装和保护接口或电源线。

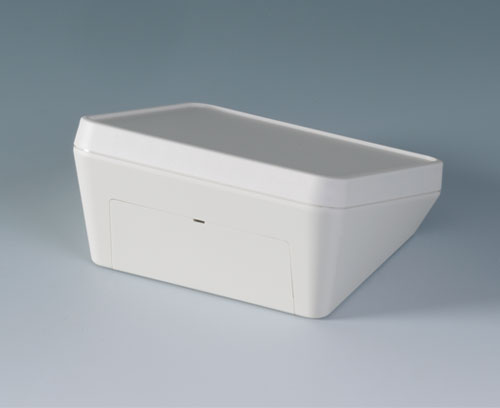

款式 II
除了上盒和下盒之外还包括一附加盖,用于覆盖和齐平接口区域。

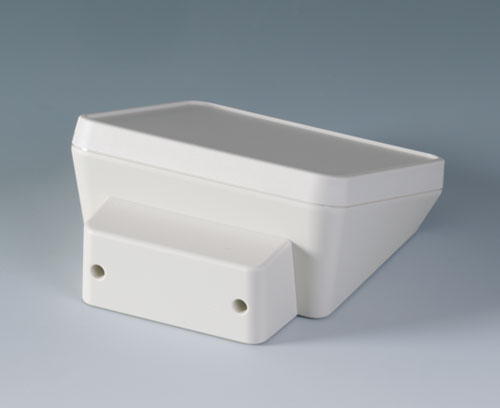

款式 III

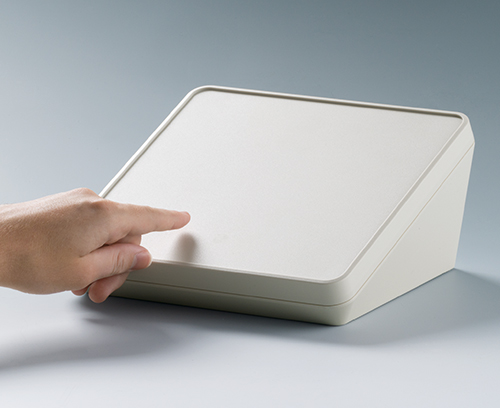

提供更高的附加盖,达到允许额外的附件安装量。 - 符合人体工程学的 20° 倾斜操作面

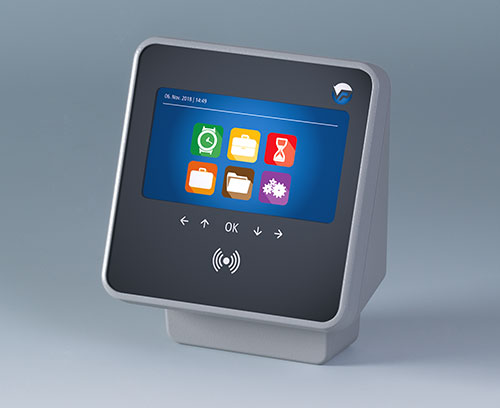

- 凹陷的操作面便于安装并保护膜键盘、操作元件和触摸系统 (PROTEC方形调控器 140: 5,7"/14,5 cm, PROTEC方形调控器 180: 7"/17,8 cm, PROTEC方形调控器 220: 8,4"/21,3 cm)
- 安装固定用螺钉完全位于视野之外
- 高质量的灰白色 V0 材料(RAL 9002) 和可选的防护等级 IP 65(密封套件作为附件), 适合坚固耐用的应用

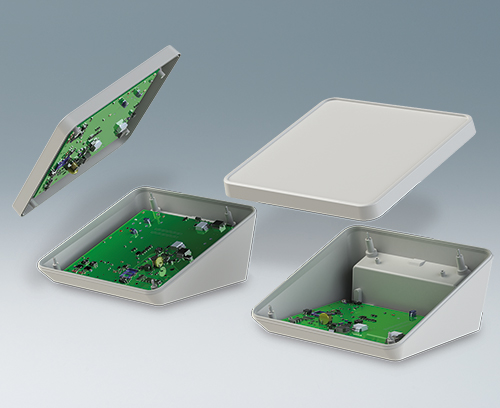

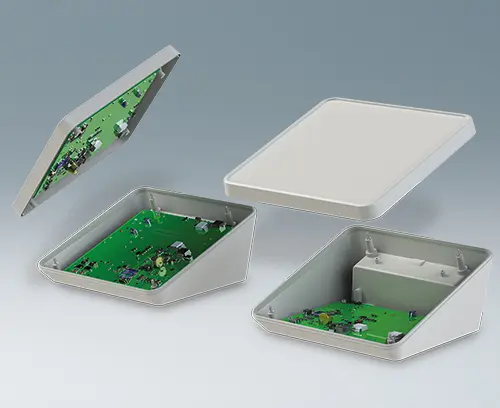

- 密封的电子元件室带 3 层电路板格层; 安装内置零件的空间宽大

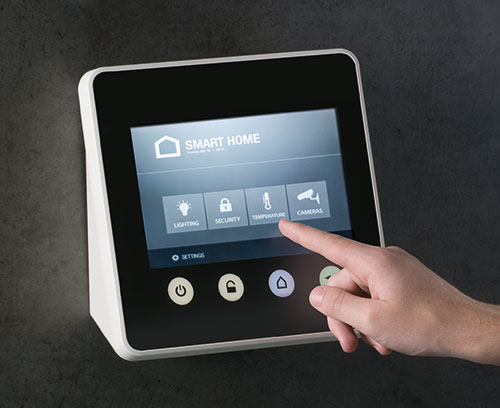

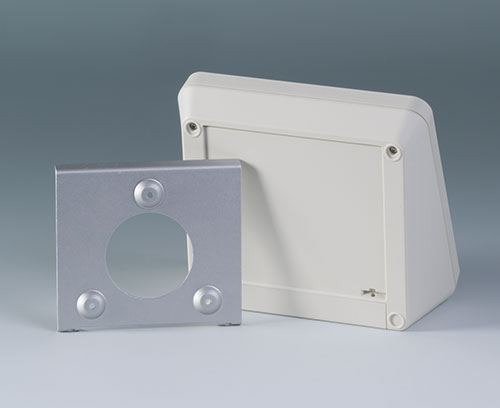

- 隐藏式、嵌入式墙壁安装并带有安全锁扣(墙壁支架属于附件系列)
- 不锈钢螺钉带安全 Torx 驱动器
- 橡胶支脚为台式机盒提供防滑定位
应用范围
监控设备、出入门禁。 数据采集系统。 建筑设施技术、控制中心。 IoT 物联网、IIoT 工业物联网。 智能工厂。 工业 4.0。 电脑外设。 测量和控制技术。医疗设施技术、医疗保健。
B4414107
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4414107
PROTEC 140, Vers. Ioff-white RAL 9002
140x140x76mm
B4414207
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4414207
PROTEC 140, Vers. IIoff-white RAL 9002
140x140x76mm
B4414307
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4414307
PROTEC 140, Vers. IIIoff-white RAL 9002
140x160x76mm
B4418107
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4418107
PROTEC 180, Vers. Ioff-white RAL 9002
180x180x92mm
B4418207
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4418207
PROTEC 180, Vers. IIoff-white RAL 9002
180x180x92mm
B4418307
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4418307
PROTEC 180, Vers. IIIoff-white RAL 9002
180x201x92mm
B4422107
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4422107
PROTEC 220, Vers. Ioff-white RAL 9002
220x220x108mm
B4422207
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4422207
PROTEC 220, Vers. IIoff-white RAL 9002
220x220x108mm
B4422307
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4422307
PROTEC 220, Vers. IIIoff-white RAL 9002
220x243x108mm
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
B4514030
Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4514030
Sealing 140
B4514101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4514101
Wall suspension element 140
B4518030
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180
B4518101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180
B4522030
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220
B4522101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
