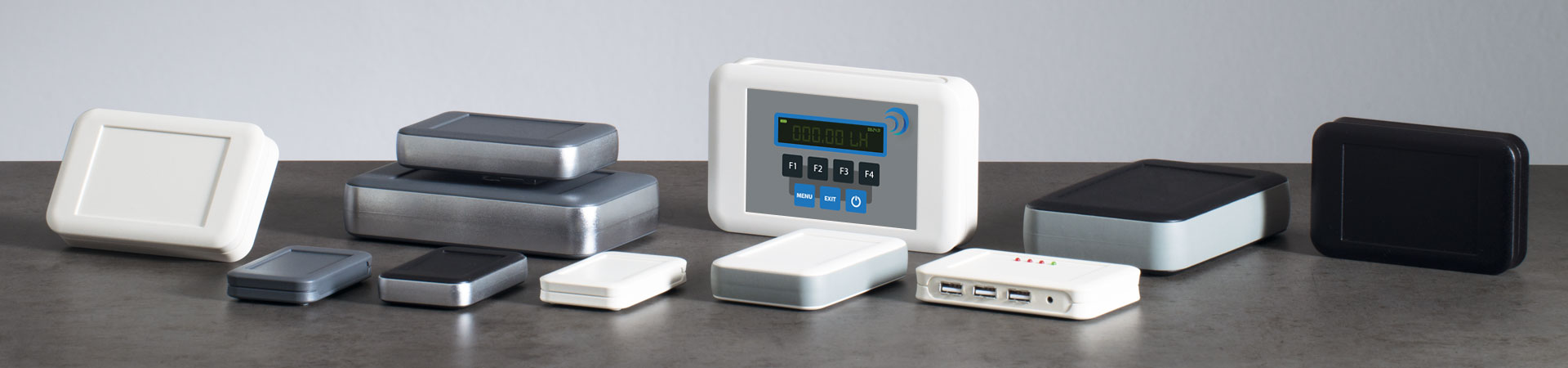

Soft-Case 园边机盒
宽幅手持盒

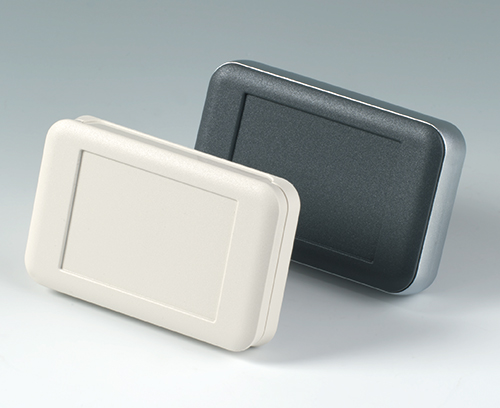

SOFT-CASE 园边机盒之所以征服用户，是因为其设计和款式都符合当前的现代需求。

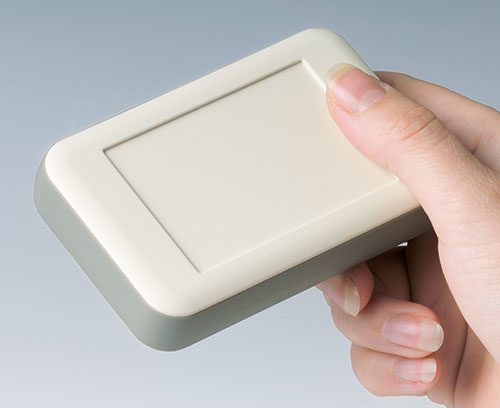

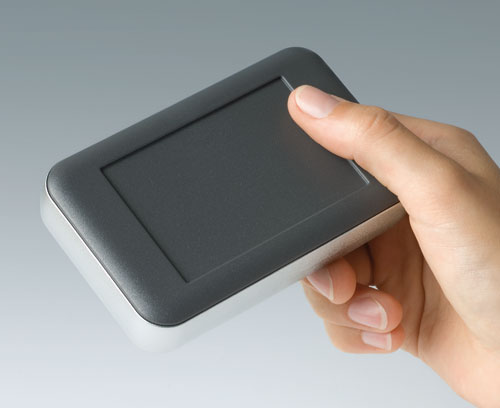

- 圆滑柔软及轻巧的格式使触感舒适

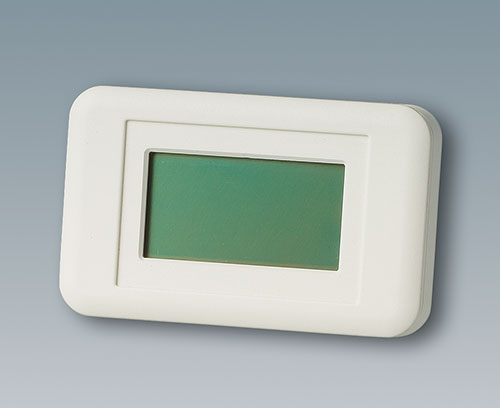

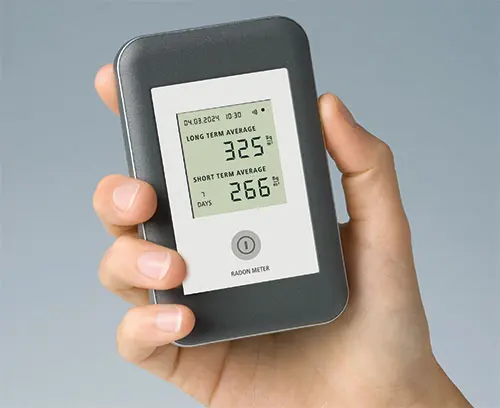

- 独特的“宽幅”格式，使其能够利于客户要求在小空间中容纳较大的显示器，这既方便了指示器的读值，也简便了操作

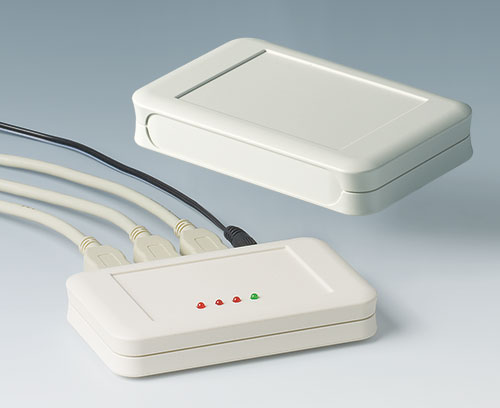

- 通过纵向侧慷慨的接口面提供更多的灵活性

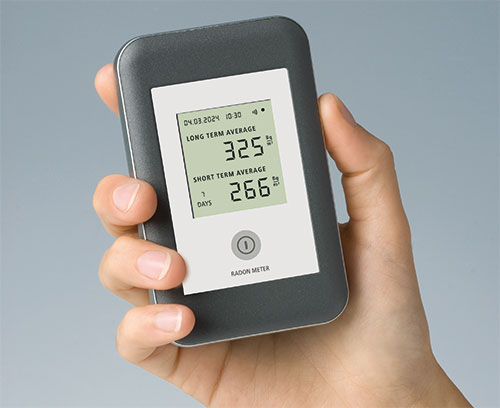

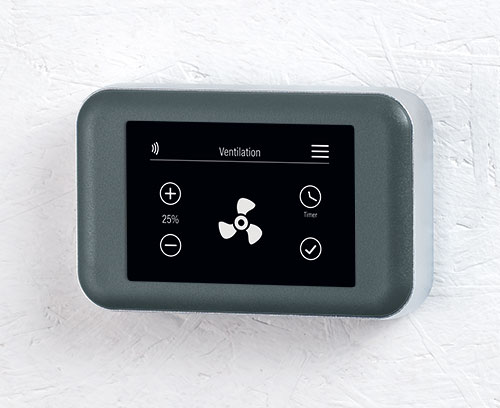

- 可作为通用盒用于手持盒，桌式盒和墙挂盒

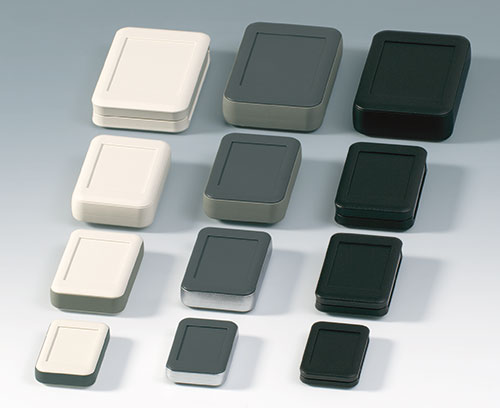

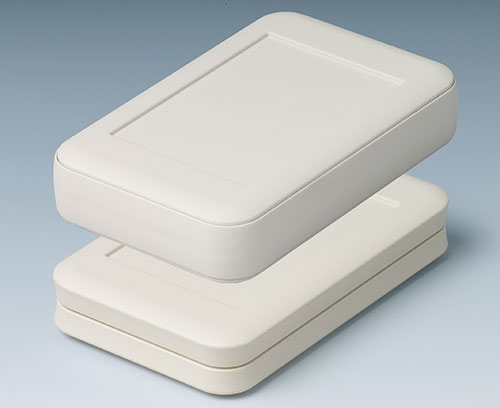

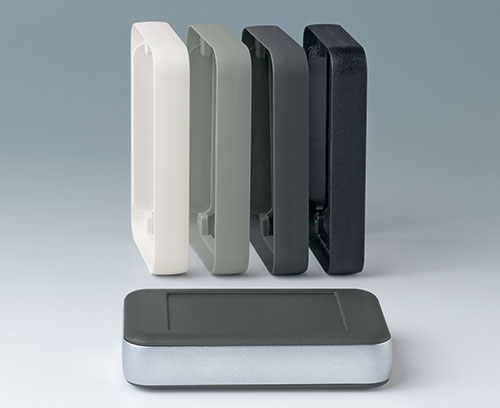

- 4 种规格，可选增加高度的中间环并具备多种款式：颜色与壳体相同的 ABS 材质、或镀锌材质、TPE 材质
- 在与 TPE 中间环结合使用时，防护等级 IP 54 可选（此型无电池隔室，材质为 ABS 或 PMMA ）

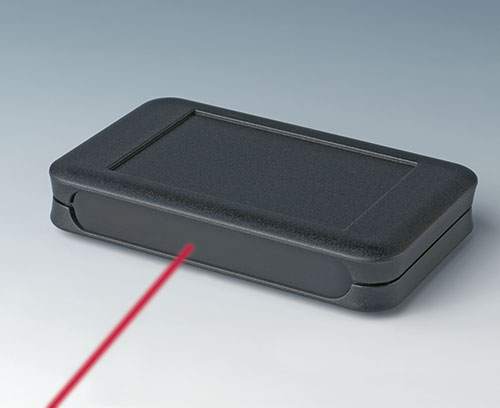

- 2 种材质： ABS（UL 94 HB），或透红外线 PMMA（UL 94 HB）

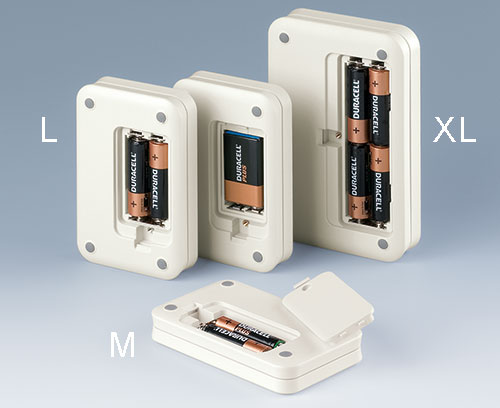

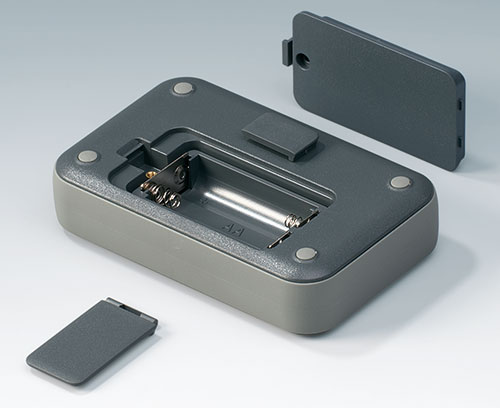

- 无或带电池仓适配 2 个 AAA、2 个 AA 、4 个 AA 或 1 个 9 V 电池; 电池盒盖卡扣式，如有必要，用螺钉固定保险

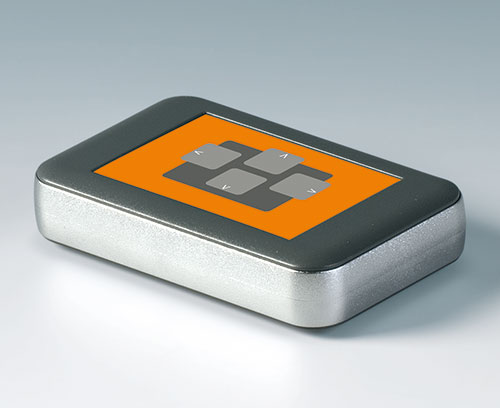

- 操作区域凹陷以保护膜键盘和装饰膜

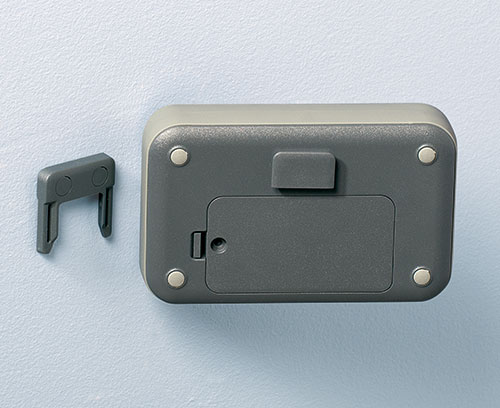

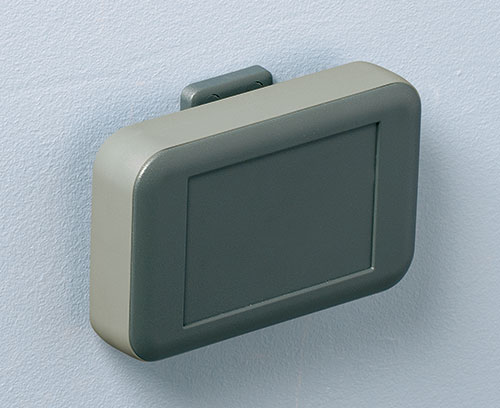

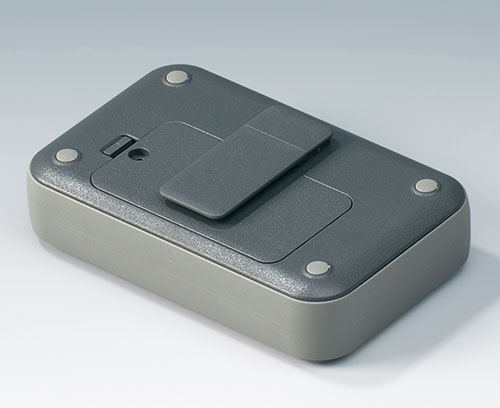

- 多用途卡夹作为卡扣夹和 / 或墙壁支架（附件）

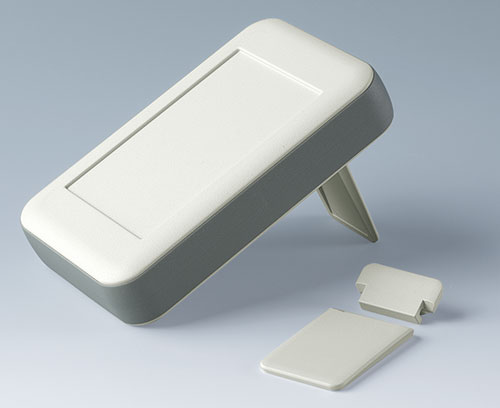

- 倾斜座架以方便操作

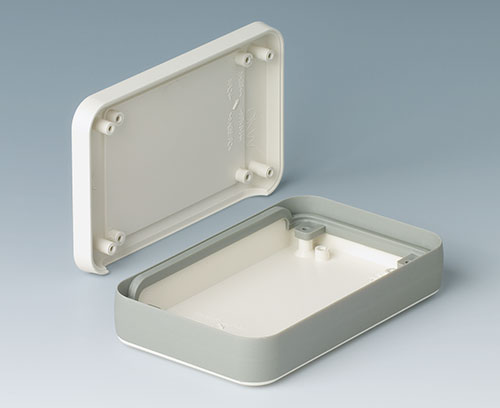

- 固定柱用于固定电路板和元器件
应用范围

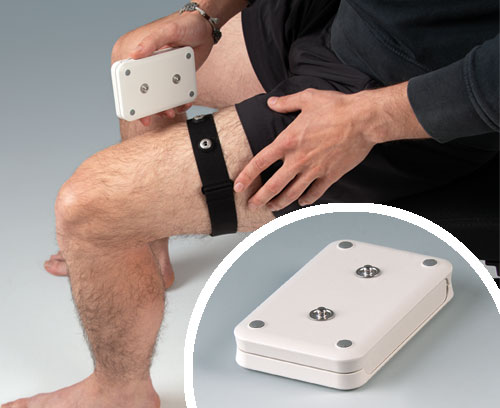

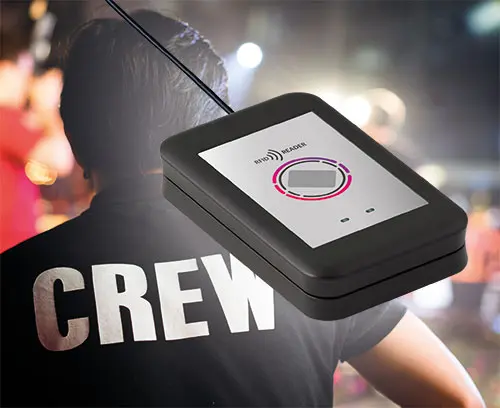

各种有线和无线遥控技术。 测量和控制技术。 数字控制技术。 医疗和实验室设备。 配套设施与界面设备。 通信技术。 IoT/IIoT。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
A9100001

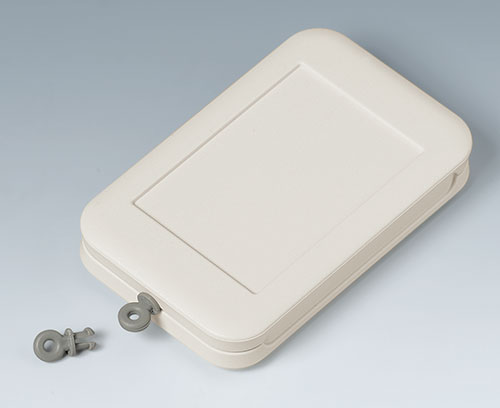

Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyelet产品已添加到关注清单中
volcano
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyelet产品已添加到关注清单中
volcano
A9150011
Intermediate ring S
Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9150011
Intermediate ring S产品已添加到关注清单中
matt chromed
54x85x12mm
A9150017
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150017
Intermediate ring S产品已添加到关注清单中
off-white RAL 9002
54x85x12mm
A9150018
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150018
Intermediate ring S产品已添加到关注清单中
lava
54x85x12mm
A9150118
Intermediate protection ring S
Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150118
Intermediate protection ring S产品已添加到关注清单中
volcano
54x85x12mm
A9150219
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9150219
Intermediate ring S产品已添加到关注清单中
black RAL 9005
54x85x12mm
A9151010

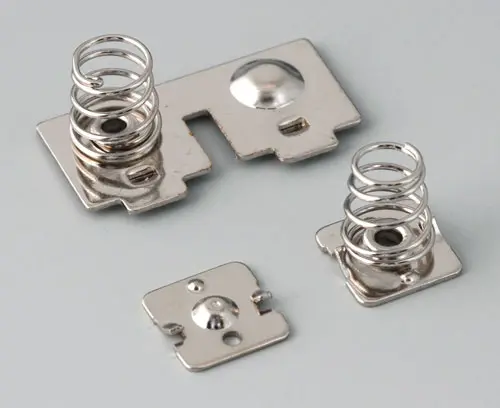

Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9151010
Set of battery clips, 2 x AAA产品已添加到关注清单中
nickel-plated
A9151011

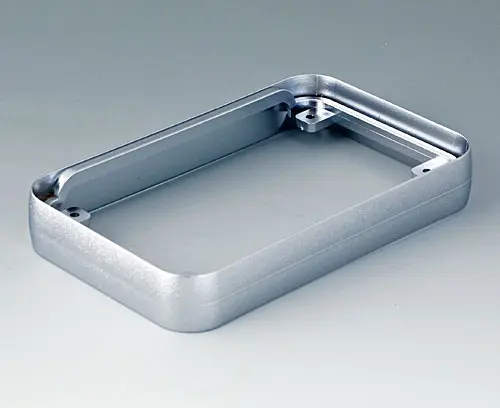

Intermediate ring M
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9151011
Intermediate ring M产品已添加到关注清单中
matt chromed
68x108x16mm
A9151017
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151017
Intermediate ring M产品已添加到关注清单中
off-white RAL 9002
68x108x16mm
A9151018

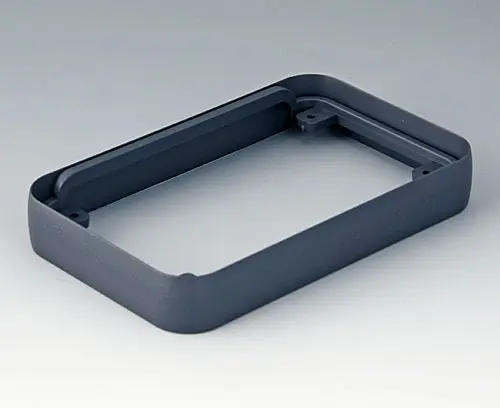

Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151018
Intermediate ring M产品已添加到关注清单中
lava
68x108x16mm
A9151118

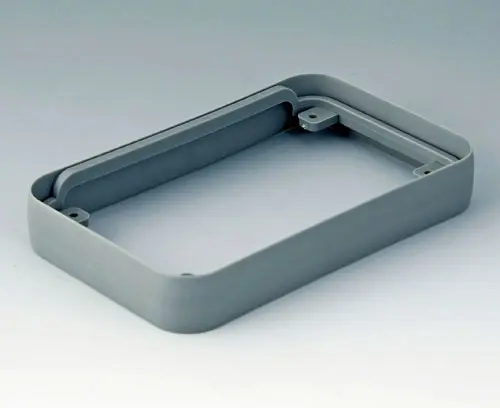

Intermediate protection ring M
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151118
Intermediate protection ring M产品已添加到关注清单中
volcano
68x108x16mm
A9151219

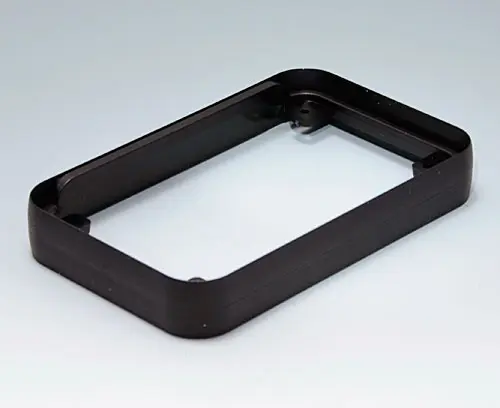

Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9151219
Intermediate ring M产品已添加到关注清单中
black RAL 9005
68x108x16mm
A9152010
Set of battery clips, 2/4 x AA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9152010
Set of battery clips, 2/4 x AA产品已添加到关注清单中
nickel-plated
A9152011
Intermediate ring L
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9152011
Intermediate ring L产品已添加到关注清单中
matt chromed
76x120x21mm
A9152017
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152017
Intermediate ring L产品已添加到关注清单中
off-white RAL 9002
76x120x21mm
A9152018
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152018
Intermediate ring L产品已添加到关注清单中
lava
76x120x21mm
A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-Clip产品已添加到关注清单中
off-white RAL 9002
45x27mm
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-Clip产品已添加到关注清单中
lava
45x27mm
A9152049
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152049
Combi-Clip产品已添加到关注清单中
black RAL 9005
45x27mm
A9152057
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152057
Tilt foot bar产品已添加到关注清单中
off-white RAL 9002
A9152058
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152058
Tilt foot bar产品已添加到关注清单中
lava
A9152059
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152059
Tilt foot bar产品已添加到关注清单中
black RAL 9005
A9152118
Intermediate protection ring L
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152118
Intermediate protection ring L产品已添加到关注清单中
volcano
76x120x21mm
A9152219
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9152219
Intermediate ring L产品已添加到关注清单中
black RAL 9005
76x120x21mm
A9153011
Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XL产品已添加到关注清单中
matt chromed
96x154x26mm
A9153017
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XL产品已添加到关注清单中
off-white RAL 9002
96x154x26mm
A9153018
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XL产品已添加到关注清单中
lava
96x154x26mm
A9153118
Intermediate ring XL
Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XL产品已添加到关注清单中
volcano
96x154x26mm
A9153219
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XL产品已添加到关注清单中
black RAL 9005
96x154x26mm
A9174006
Set of battery clips, 1 x 9 V
For contacting the battery.
Supply 2 single contacts
A9174006
Set of battery clips, 1 x 9 V产品已添加到关注清单中
tin-plated
