A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA

For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply

2 single contact positive, 2 single contact negative

  • 应用于
A9075107 DATEC-MOBIL-BOX L, Vers. I

A9075107

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9075107

DATEC-MOBIL-BOX L, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075109 DATEC-MOBIL-BOX L, Vers. I

A9075109

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9075109

DATEC-MOBIL-BOX L, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075207 DATEC-MOBIL-BOX L, Vers. II

A9075207

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9075207

DATEC-MOBIL-BOX L, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.

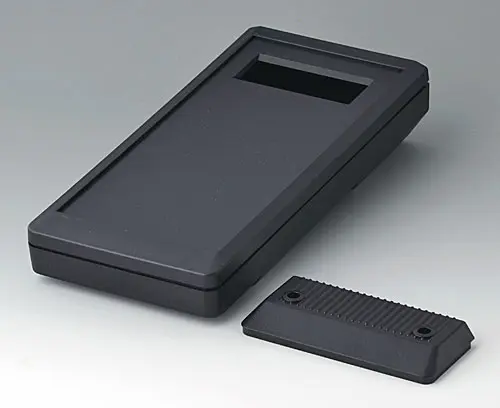

A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9075209

DATEC-MOBIL-BOX L, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
  • 技术数据
  • 采购有关数据
材料
颜色
nickel-plated
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
U.S.A.
