A9190013
Set of battery clips, 4 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative
添加到购物车内

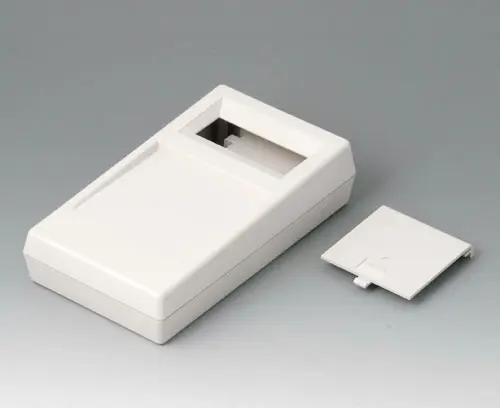

A9061017
HAND-HELD-BOX N, Vers. I
Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.
Version With battery compartment
Supply Top and base part, battery compartment lid, assembly kit
A9061017
HAND-HELD-BOX N, Vers. I产品已添加到关注清单中
off-white RAL 9002
180x100x44mm
A9061019
HAND-HELD-BOX N, Vers. I
Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.
Version With battery compartment
Supply Top and base part, battery compartment lid, assembly kit
A9061019
HAND-HELD-BOX N, Vers. I产品已添加到关注清单中
black RAL 9005
180x100x44mm

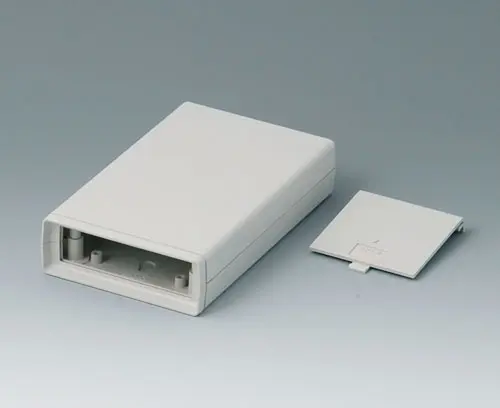

A9408638
SHELL-TYPE CASES V 155, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9408638
SHELL-TYPE CASES V 155, Vers. V产品已添加到关注清单中
off-white RAL 9002
95x158x33mm

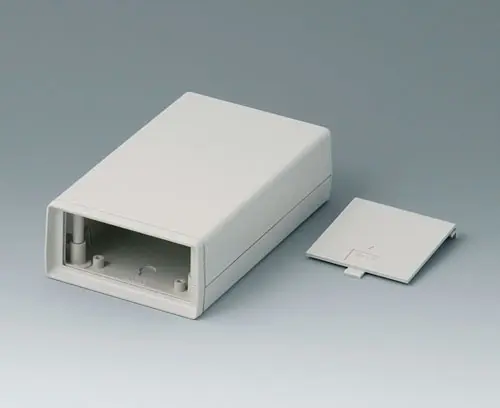

A9408648
SHELL-TYPE CASES V 155, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9408648
SHELL-TYPE CASES V 155, Vers. V产品已添加到关注清单中
off-white RAL 9002
95x158x45mm
A9408737
SHELL-TYPE CASES G 155, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9408737
SHELL-TYPE CASES G 155, Vers. V产品已添加到关注清单中
off-white RAL 9002
95x158x33mm

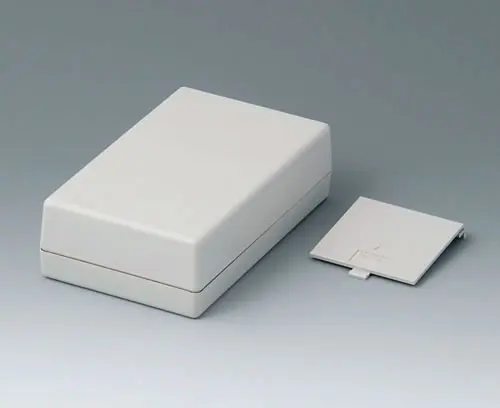

A9408747
SHELL-TYPE CASES G 155, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9408747
SHELL-TYPE CASES G 155, Vers. V产品已添加到关注清单中
off-white RAL 9002
95x158x45mm

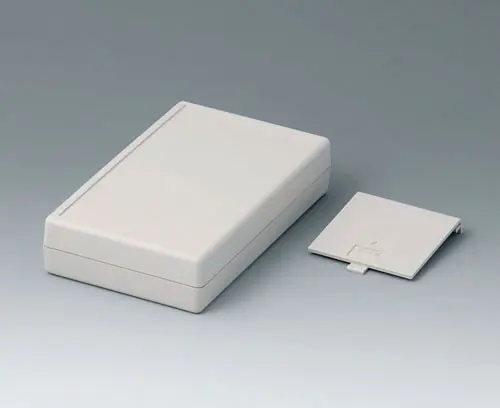

A9408757
SHELL-TYPE CASES G 155, Vers. V
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9408757
SHELL-TYPE CASES G 155, Vers. V产品已添加到关注清单中
off-white RAL 9002
95x158x33.5mm
A9413638
SHELL-TYPE CASES V 190, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413638
SHELL-TYPE CASES V 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45mm
A9413648
SHELL-TYPE CASES V 190, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413648
SHELL-TYPE CASES V 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x68mm

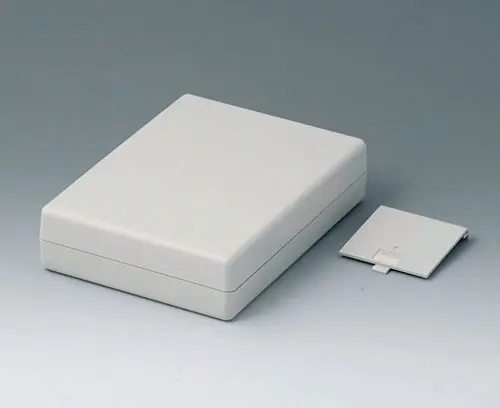

A9413737
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413737
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45mm

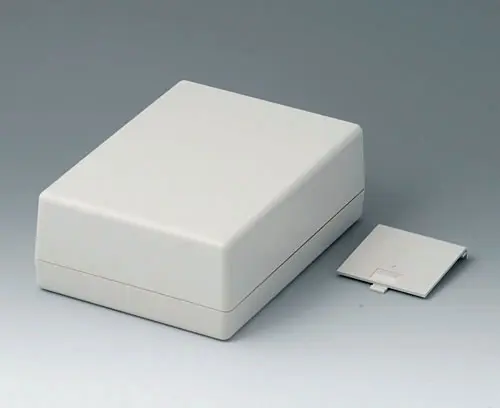

A9413747
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413747
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x68mm

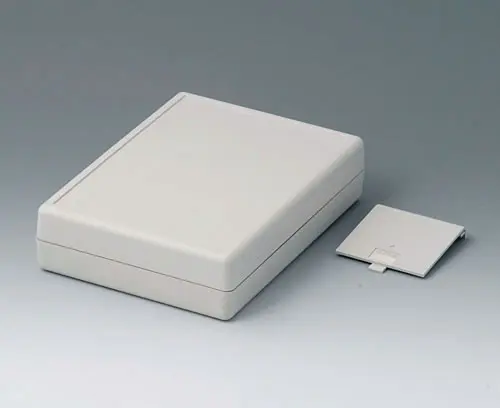

A9413757
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413757
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45.5mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
73201090
Country of manufacture
USA
