Plug header, block 5.08
Female terminal block, 5.08. 12-pin.
Supply1 piece
添加到购物车内
B6503110
RAILTEC B, 4 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin
Supply 1 base part with locking clip, 1 top part
B6503110
RAILTEC B, 4 modules, Vers. V产品已添加到关注清单中
light grey RAL 7035
70x86x58mm
B6503112
RAILTEC B, 4 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6503112
RAILTEC B, 4 modules, Vers. II产品已添加到关注清单中
light grey RAL 7035
70x86x58mm

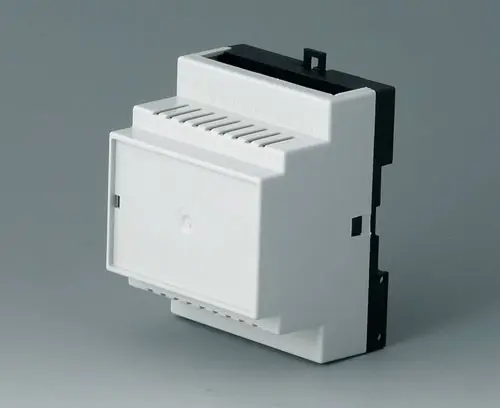

B6503115
RAILTEC B, 4 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6503115
RAILTEC B, 4 modules, Vers. II产品已添加到关注清单中
light grey RAL 7035
70x86x58mm

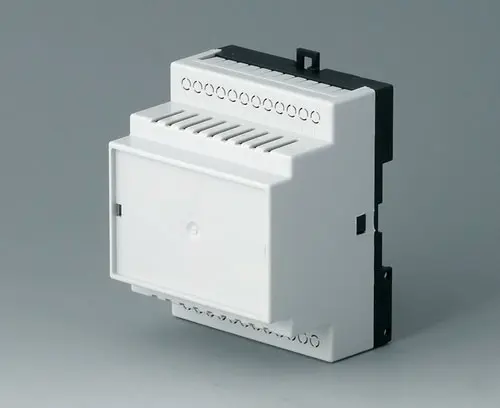

B6503119
RAILTEC B, 4 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin
Supply 1 base part with locking clip, 1 top part
B6503119
RAILTEC B, 4 modules, Vers. V产品已添加到关注清单中
light grey RAL 7035
70x86x58mm

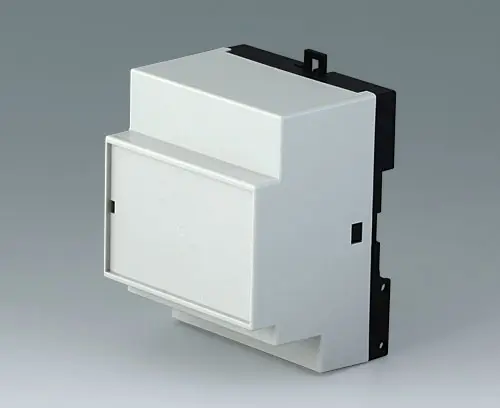

B6513112
RAILTEC B, 4 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6513112
RAILTEC B, 4 modules, Vers. XII产品已添加到关注清单中
light grey RAL 7035
70x86x58mm
B6703100
RAILTEC C, 4 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6703100
RAILTEC C, 4 modules, Vers. I产品已添加到关注清单中
light grey
71x90x58mm
B6703102
RAILTEC C, 4 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage, with ventilations slots
Supply 1 bottom part, 2 clips, 1 top part
B6703102
RAILTEC C, 4 modules, Vers. II产品已添加到关注清单中
light grey
71x90x58mm
B6703104
RAILTEC C, 4 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.
Version Front open, connection side with extended case wall
Supply 1 bottom part, 2 clips, 1 top part
B6703104
RAILTEC C, 4 modules, Vers. III产品已添加到关注清单中
light grey
71x90x58mm
B6703106
RAILTEC C, 4 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6703106
RAILTEC C, 4 modules, Vers. IV产品已添加到关注清单中
light grey
71x90x58mm
B6704100
RAILTEC C, 5 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704100
RAILTEC C, 5 modules, Vers. I产品已添加到关注清单中
light grey
88x90x58mm
B6704101
RAILTEC C, 5 modules, Vers. I
Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704101
RAILTEC C, 5 modules, Vers. I产品已添加到关注清单中
light grey
88x90x58mm
B6704102
RAILTEC C, 5 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704102
RAILTEC C, 5 modules, Vers. II产品已添加到关注清单中
light grey
88x90x58mm
B6704103
RAILTEC C, 5 modules, Vers. II
Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704103
RAILTEC C, 5 modules, Vers. II产品已添加到关注清单中
light grey
88x90x58mm
B6704104
RAILTEC C, 5 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704104
RAILTEC C, 5 modules, Vers. III产品已添加到关注清单中
light grey
88x90x58mm
B6704105
RAILTEC C, 5 modules, Vers. III
Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704105
RAILTEC C, 5 modules, Vers. III产品已添加到关注清单中
light grey
88x90x58mm
B6704106
RAILTEC C, 5 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6704106
RAILTEC C, 5 modules, Vers. IV产品已添加到关注清单中
light grey
88x90x58mm
B6704107
RAILTEC C, 5 modules, Vers. IV
Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6704107
RAILTEC C, 5 modules, Vers. IV产品已添加到关注清单中
light grey
88x90x58mm
- 技术数据
-
图纸或资料
- 采购有关数据
材料
Pitch
5.08 mm
Poles
12
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 91 KB
- AutoCAD DWG-File 301 KB
- AutoCAD DXF-File 783 KB
Weight/1 part
20 g
Customs tariff number
(OKW product)
(OKW product)
85369095
Country of manufacture
UK
