DIN 标准导轨接线盒
B6606223
Plug header, block 5.08
Female terminal block, 5.08. 2-pin.
Supply1 piece
添加到购物车内

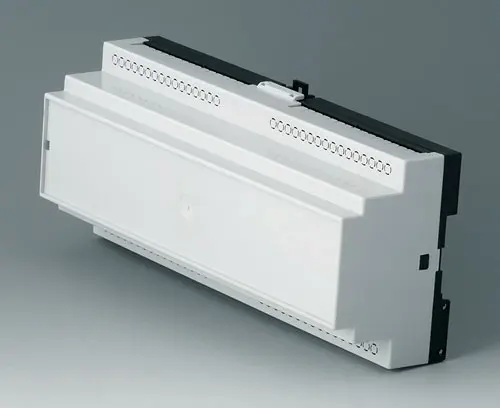

B6506110
RAILTEC B, 12 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506110
RAILTEC B, 12 modules, Vers. V产品已添加到关注清单中
light grey RAL 7035
210x90x58mm

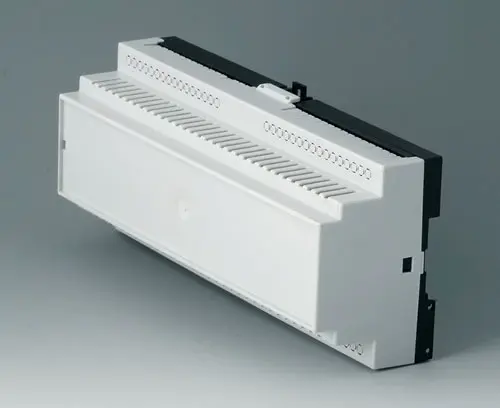

B6506119
RAILTEC B, 12 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506119
RAILTEC B, 12 modules, Vers. V产品已添加到关注清单中
light grey RAL 7035
210x90x58mm

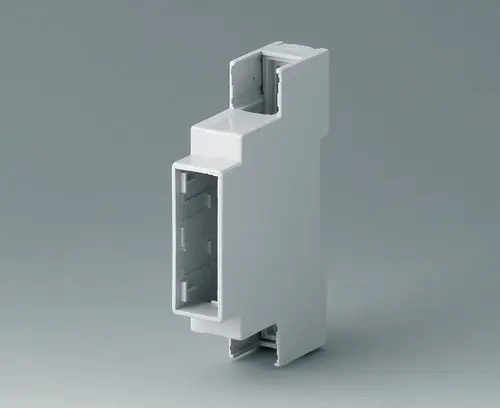

B6700100
RAILTEC C, 1 module, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front open, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6700100
RAILTEC C, 1 module, Vers. I产品已添加到关注清单中
light grey
17.5x90x58mm

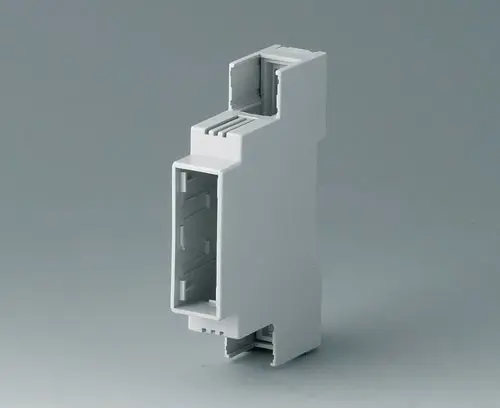

B6700102
RAILTEC C, 1 module, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front open, connection side with free through passage, with ventilations slots
Supply 1 bottom part, 2 clips, 1 top part
B6700102
RAILTEC C, 1 module, Vers. II产品已添加到关注清单中
light grey
17.5x90x58mm

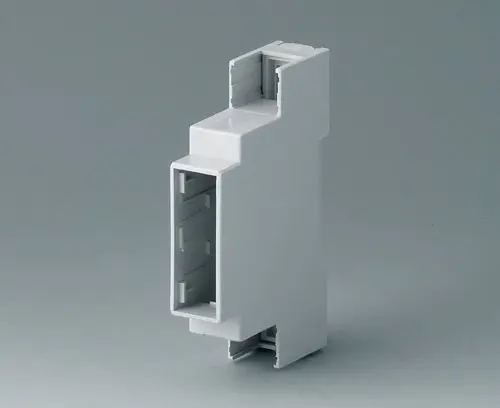

B6700104
RAILTEC C, 1 module, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories.
Version Front open, connection side with extended case wall
Supply 1 bottom part, 2 clips, 1 top part
B6700104
RAILTEC C, 1 module, Vers. III产品已添加到关注清单中
light grey
17.5x90x58mm

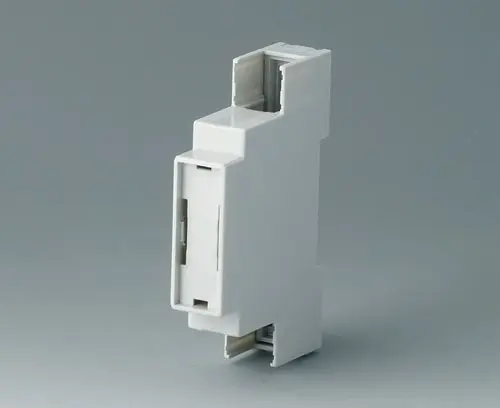

B6700106
RAILTEC C, 1 module, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6700106
RAILTEC C, 1 module, Vers. IV产品已添加到关注清单中
light grey
17.5x90x58mm

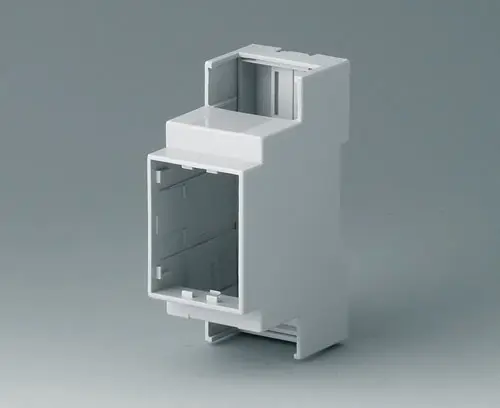

B6701100
RAILTEC C, 2 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6701100
RAILTEC C, 2 modules, Vers. I产品已添加到关注清单中
light grey
36x90x58mm

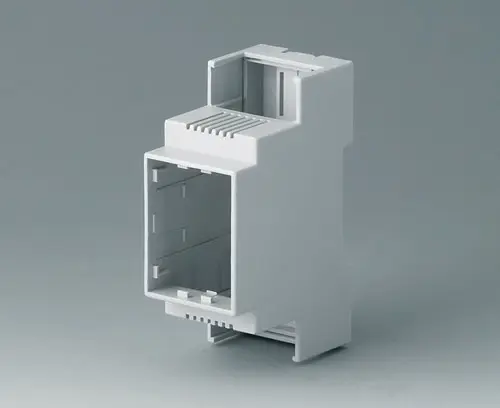

B6701102
RAILTEC C, 2 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage, with ventilations slots
Supply 1 bottom part, 2 clips, 1 top part
B6701102
RAILTEC C, 2 modules, Vers. II产品已添加到关注清单中
light grey
36x90x58mm
B6701104
RAILTEC C, 2 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.
Version Front open, connection side with extended case wall
Supply 1 bottom part, 2 clips, 1 top part
B6701104
RAILTEC C, 2 modules, Vers. III产品已添加到关注清单中
light grey
36x90x58mm
B6701106
RAILTEC C, 2 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6701106
RAILTEC C, 2 modules, Vers. IV产品已添加到关注清单中
light grey
36x90x58mm
B6702100
RAILTEC C, 3 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6702100
RAILTEC C, 3 modules, Vers. I产品已添加到关注清单中
light grey
53x90x58mm
B6702102
RAILTEC C, 3 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage, with ventilations slots
Supply 1 bottom part, 2 clips, 1 top part
B6702102
RAILTEC C, 3 modules, Vers. II产品已添加到关注清单中
light grey
53x90x58mm

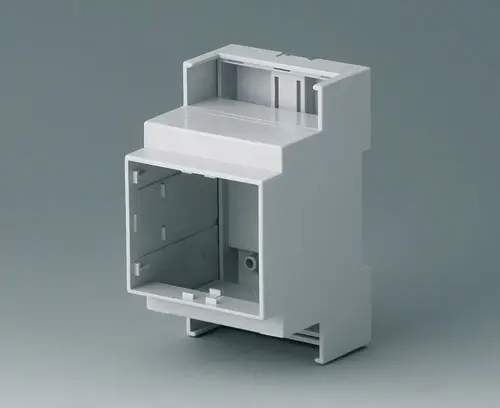

B6702104
RAILTEC C, 3 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.
Version Front open, connection side with extended case wall
Supply 1 bottom part, 2 clips, 1 top part
B6702104
RAILTEC C, 3 modules, Vers. III产品已添加到关注清单中
light grey
53x90x58mm
B6702106
RAILTEC C, 3 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6702106
RAILTEC C, 3 modules, Vers. IV产品已添加到关注清单中
light grey
53x90x58mm
B6703100
RAILTEC C, 4 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6703100
RAILTEC C, 4 modules, Vers. I产品已添加到关注清单中
light grey
71x90x58mm

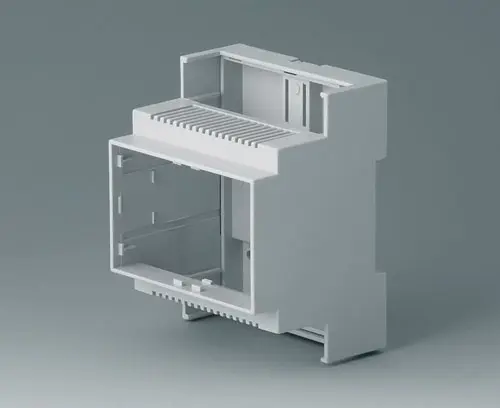

B6703102
RAILTEC C, 4 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
Version Front open, connection side with free through passage, with ventilations slots
Supply 1 bottom part, 2 clips, 1 top part
B6703102
RAILTEC C, 4 modules, Vers. II产品已添加到关注清单中
light grey
71x90x58mm

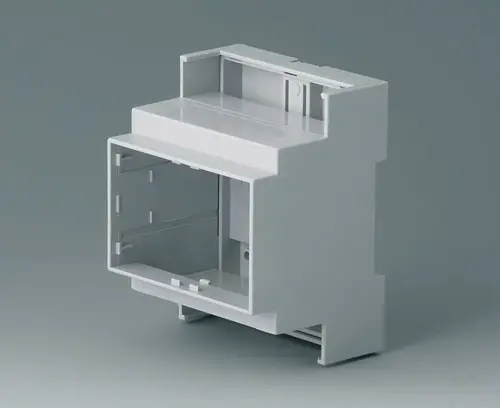

B6703104
RAILTEC C, 4 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.
Version Front open, connection side with extended case wall
Supply 1 bottom part, 2 clips, 1 top part
B6703104
RAILTEC C, 4 modules, Vers. III产品已添加到关注清单中
light grey
71x90x58mm

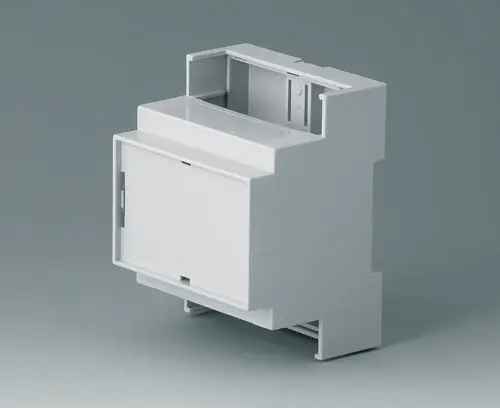

B6703106
RAILTEC C, 4 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 2 clips, 1 top part
B6703106
RAILTEC C, 4 modules, Vers. IV产品已添加到关注清单中
light grey
71x90x58mm

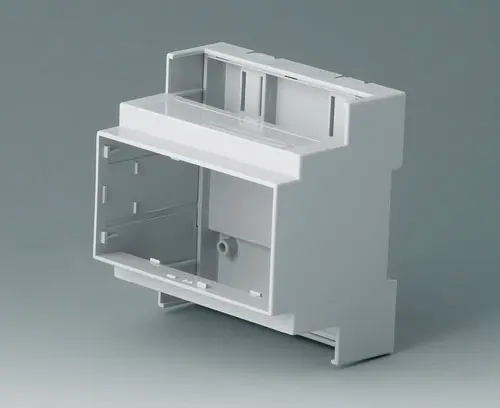

B6704100
RAILTEC C, 5 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704100
RAILTEC C, 5 modules, Vers. I产品已添加到关注清单中
light grey
88x90x58mm

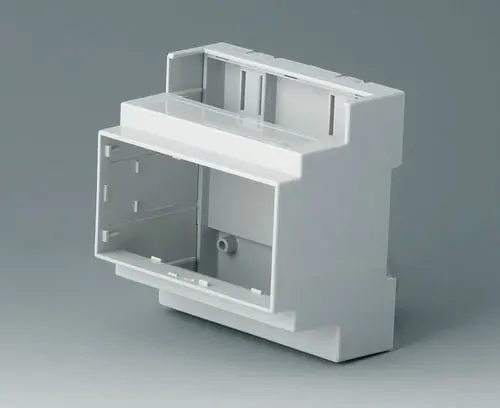

B6704101
RAILTEC C, 5 modules, Vers. I
Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704101
RAILTEC C, 5 modules, Vers. I产品已添加到关注清单中
light grey
88x90x58mm

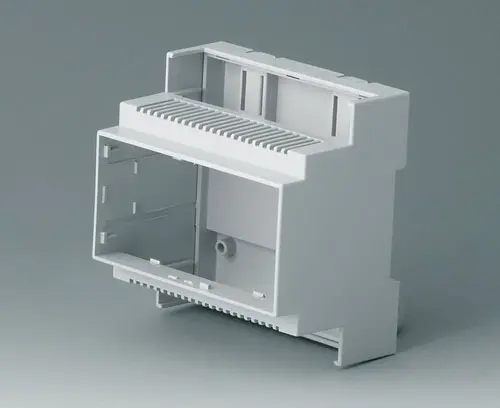

B6704102
RAILTEC C, 5 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704102
RAILTEC C, 5 modules, Vers. II产品已添加到关注清单中
light grey
88x90x58mm

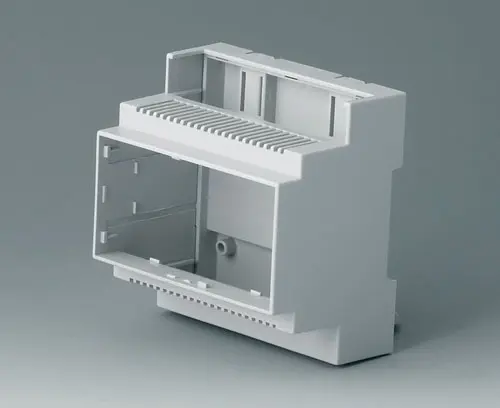

B6704103
RAILTEC C, 5 modules, Vers. II
Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704103
RAILTEC C, 5 modules, Vers. II产品已添加到关注清单中
light grey
88x90x58mm

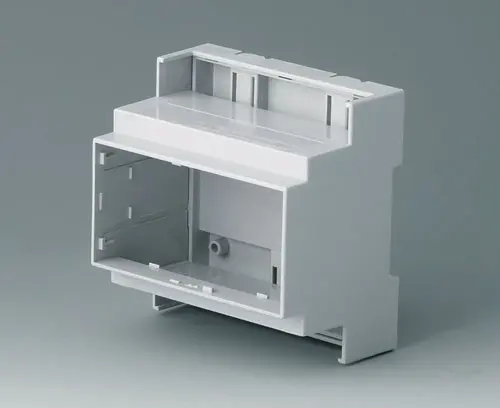

B6704104
RAILTEC C, 5 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704104
RAILTEC C, 5 modules, Vers. III产品已添加到关注清单中
light grey
88x90x58mm

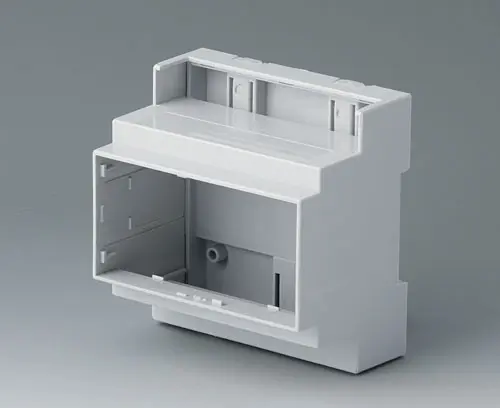

B6704105
RAILTEC C, 5 modules, Vers. III
Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6704105
RAILTEC C, 5 modules, Vers. III产品已添加到关注清单中
light grey
88x90x58mm

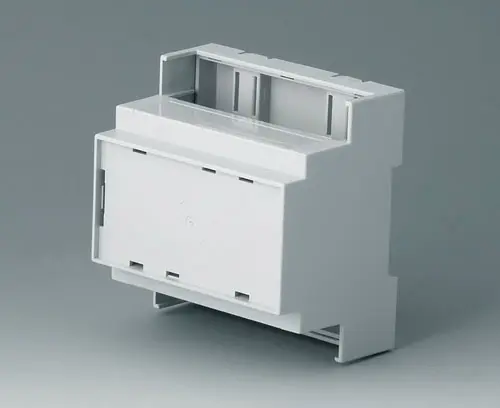

B6704106
RAILTEC C, 5 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6704106
RAILTEC C, 5 modules, Vers. IV产品已添加到关注清单中
light grey
88x90x58mm

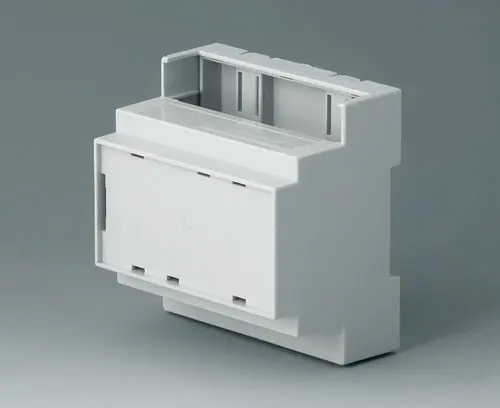

B6704107
RAILTEC C, 5 modules, Vers. IV
Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6704107
RAILTEC C, 5 modules, Vers. IV产品已添加到关注清单中
light grey
88x90x58mm
B6705100
RAILTEC C, 6 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705100
RAILTEC C, 6 modules, Vers. I产品已添加到关注清单中
light grey
106x90x58mm
B6705101
RAILTEC C, 6 modules, Vers. I
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705101
RAILTEC C, 6 modules, Vers. I产品已添加到关注清单中
light grey
106x90x58mm
B6705102
RAILTEC C, 6 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705102
RAILTEC C, 6 modules, Vers. II产品已添加到关注清单中
light grey
106x90x58mm
B6705103
RAILTEC C, 6 modules, Vers. II
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705103
RAILTEC C, 6 modules, Vers. II产品已添加到关注清单中
light grey
106x90x58mm
B6705104
RAILTEC C, 6 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705104
RAILTEC C, 6 modules, Vers. III产品已添加到关注清单中
light grey
106x90x58mm
B6705105
RAILTEC C, 6 modules, Vers. III
Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705105
RAILTEC C, 6 modules, Vers. III产品已添加到关注清单中
light grey
106x90x58mm
B6705106
RAILTEC C, 6 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6705106
RAILTEC C, 6 modules, Vers. IV产品已添加到关注清单中
light grey
106x90x58mm
B6705107
RAILTEC C, 6 modules, Vers. IV
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version front closed, connection side with free through passage.
Supply 1 bottom part, 3 clips, 1 top part
B6705107
RAILTEC C, 6 modules, Vers. IV产品已添加到关注清单中
light grey
106x90x58mm
B6705800
RAILTEC C, 6 modules, flat, Vers. I
Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705800
RAILTEC C, 6 modules, flat, Vers. I产品已添加到关注清单中
light grey
106.2x90x32mm
B6705806
RAILTEC C, 6 modules, flat, Vers. IV
Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6705806
RAILTEC C, 6 modules, flat, Vers. IV产品已添加到关注清单中
light grey
106.2x90x32mm
B6706100
RAILTEC C, 9 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706100
RAILTEC C, 9 modules, Vers. I产品已添加到关注清单中
light grey
160x90x58mm
B6706101
RAILTEC C, 9 modules, Vers. I
Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706101
RAILTEC C, 9 modules, Vers. I产品已添加到关注清单中
light grey
160x90x58mm
B6706102
RAILTEC C, 9 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706102
RAILTEC C, 9 modules, Vers. II产品已添加到关注清单中
light grey
160x90x58mm
B6706103
RAILTEC C, 9 modules, Vers. II
Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706103
RAILTEC C, 9 modules, Vers. II产品已添加到关注清单中
light grey
160x90x58mm
B6706104
RAILTEC C, 9 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706104
RAILTEC C, 9 modules, Vers. III产品已添加到关注清单中
light grey
160x90x58mm
B6706105
RAILTEC C, 9 modules, Vers. III
Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6706105
RAILTEC C, 9 modules, Vers. III产品已添加到关注清单中
light grey
160x90x58mm
B6706106
RAILTEC C, 9 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6706106
RAILTEC C, 9 modules, Vers. IV产品已添加到关注清单中
light grey
160x90x58mm
B6706107
RAILTEC C, 9 modules, Vers. IV
Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6706107
RAILTEC C, 9 modules, Vers. IV产品已添加到关注清单中
light grey
160x90x58mm
B6707100
RAILTEC C, 12 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6707100
RAILTEC C, 12 modules, Vers. I产品已添加到关注清单中
light grey
210x90x58mm
B6707102
RAILTEC C, 12 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6707102
RAILTEC C, 12 modules, Vers. II产品已添加到关注清单中
light grey
210x90x58mm
- 技术数据
-
图纸或资料
- 采购有关数据
材料
Pitch
5.08 mm
Poles
2
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 91 KB
- AutoCAD DWG-File 301 KB
- AutoCAD DXF-File 783 KB
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
85369095
Country of manufacture
UK
