B6801650

Terminal block, block 5.08

PCB terminal block, 5.08. 6-pin.

Supply

1 piece

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6801650

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
B6701100 RAILTEC C, 2 modules, Vers. I

B6701100

RAILTEC C, 2 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6701100

RAILTEC C, 2 modules, Vers. I
产品已添加到关注清单中

light grey
36x90x58mm
B6701102 RAILTEC C, 2 modules, Vers. II

B6701102

RAILTEC C, 2 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6701102

RAILTEC C, 2 modules, Vers. II
产品已添加到关注清单中

light grey
36x90x58mm

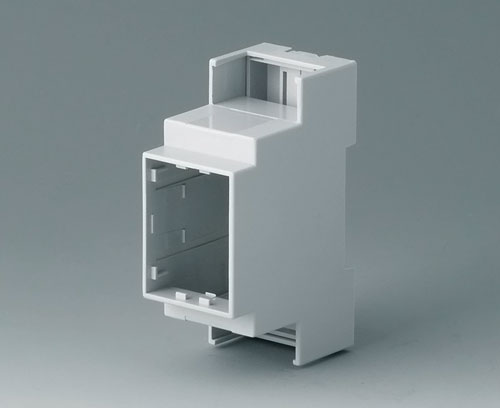

B6701104 RAILTEC C, 2 modules, Vers. III

B6701104

RAILTEC C, 2 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6701104

RAILTEC C, 2 modules, Vers. III
产品已添加到关注清单中

light grey
36x90x58mm
B6701106 RAILTEC C, 2 modules, Vers. IV

B6701106

RAILTEC C, 2 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6701106

RAILTEC C, 2 modules, Vers. IV
产品已添加到关注清单中

light grey
36x90x58mm
材料

颜色
light grey
标准根据
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
6
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
3 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
UK
