A9152057

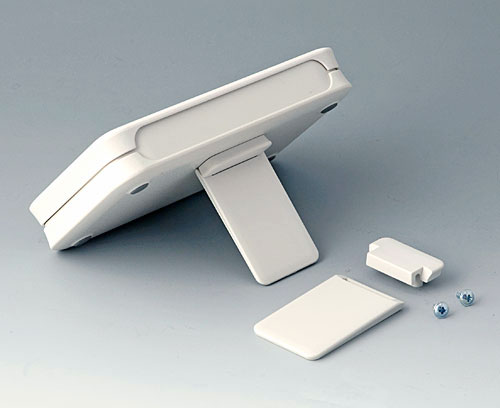

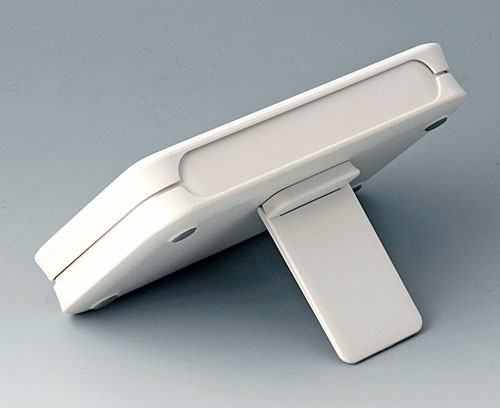

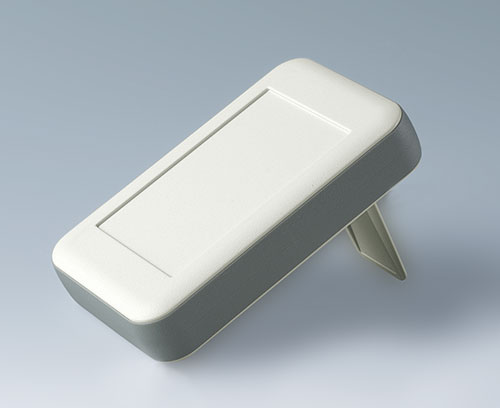

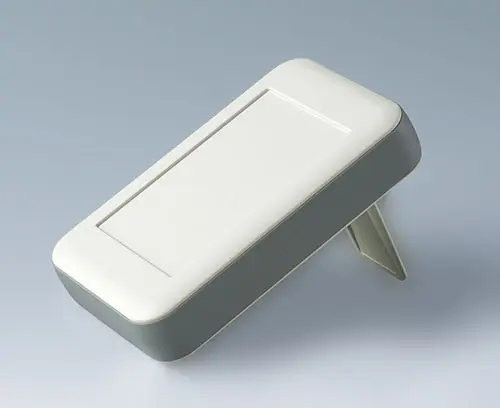

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply

1 tilt foot bar, assembly kit

3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9152057

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

系统组件使产品完整

A9050107 SOFT-CASE S

A9050107

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

A9050107

SOFT-CASE S
产品已添加到关注清单中

off-white RAL 9002
51x82x14mm
,
A9051107 SOFT-CASE M

A9051107

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

A9051107

SOFT-CASE M
产品已添加到关注清单中

off-white RAL 9002
65x105x19mm
,
A9051117 SOFT-CASE M

A9051117

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

A9051117

SOFT-CASE M
产品已添加到关注清单中

off-white RAL 9002
65x105x19mm
A9052107 SOFT-CASE L

A9052107

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

A9052107

SOFT-CASE L
产品已添加到关注清单中

off-white RAL 9002
73x117x24mm
,
A9052117 SOFT-CASE L

A9052117

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

A9052117

SOFT-CASE L
产品已添加到关注清单中

off-white RAL 9002
73x117x24mm
A9052127 SOFT-CASE L

A9052127

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

A9052127

SOFT-CASE L
产品已添加到关注清单中

off-white RAL 9002
73x117x24mm
A9053107 SOFT-CASE XL

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

A9053107

SOFT-CASE XL
产品已添加到关注清单中

off-white RAL 9002
92x150x28mm
A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

A9053117

SOFT-CASE XL
产品已添加到关注清单中

off-white RAL 9002
92x150x28mm

附件

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
产品已添加到关注清单中
transparent

Customising options for A9152057

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
off-white RAL 9002
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
