A9257509 Case feet, Vers. II

A9257509

Case feet, Vers. II

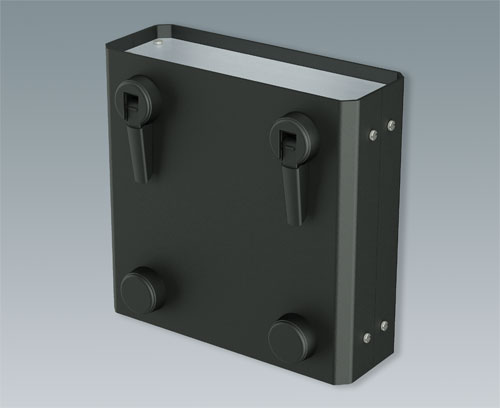

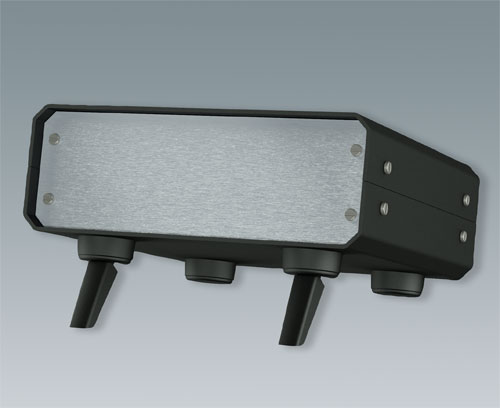

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version

With tilt legs

Supply

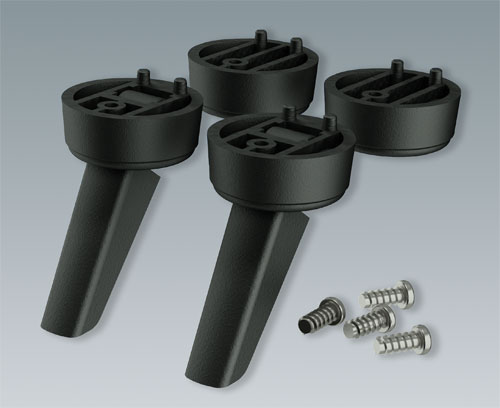

4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Diameter
⌀ 30 mm
Height
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
