AltText

C2312126

Sealing ring for external thread M12x1.5

Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply

1 sealing ring for external thread

  • 应用于
AltText

C2312418

Cable gland M12x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

关闭

C2312418

Cable gland M12x1.5
产品已添加到关注清单中
PA
silver grey RAL 7001
IP 68
AltText

C2312419

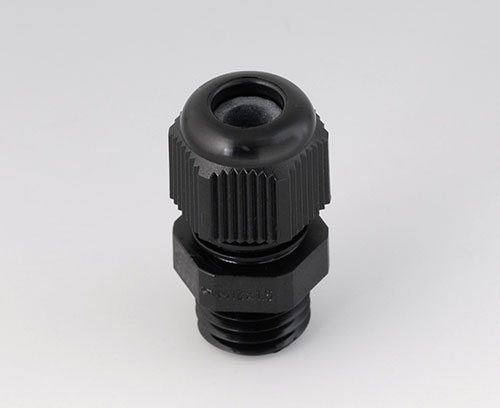

Cable gland M12x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

关闭

C2312419

Cable gland M12x1.5
产品已添加到关注清单中
PA
black RAL 9005
IP 68
AltText

C2312518

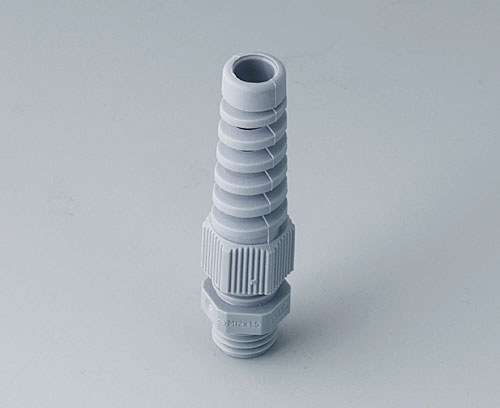

Cable gland M12x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

关闭

C2312518

Cable gland M12x1.5, bending protection
产品已添加到关注清单中
PA
silver grey RAL 7001
IP 68
  • 技术数据
  • 采购有关数据
材料
颜色
natural-coloured
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
