C2316117

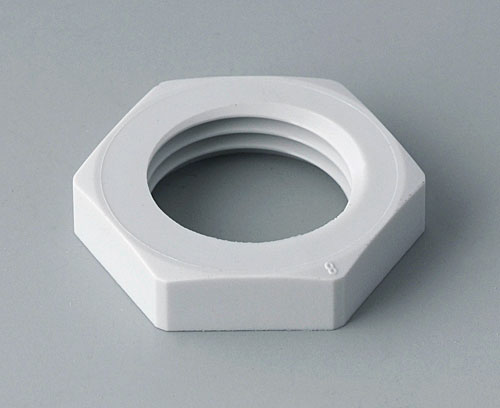

Counternut M16x1.5

For fixing the cable gland on the housing.

Supply

1 counternut

  • 应用于
AltText

C2316418

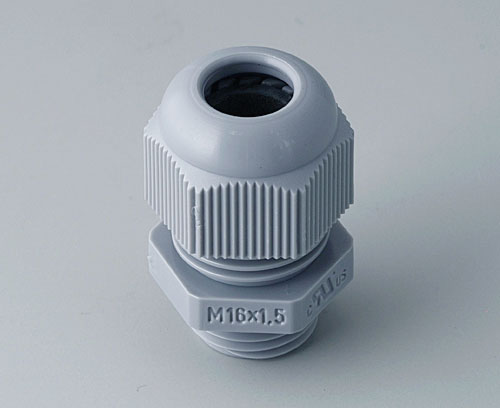

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

关闭

C2316418

Cable gland M16x1.5
产品已添加到关注清单中
PA
silver grey RAL 7001
IP 68
AltText

C2316419

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

关闭

C2316419

Cable gland M16x1.5
产品已添加到关注清单中
PA
black RAL 9005
IP 68
AltText

C2316518

Cable gland M16x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

关闭

C2316518

Cable gland M16x1.5, bending protection
产品已添加到关注清单中
PA
silver grey RAL 7001
IP 68
AltText

C2316618

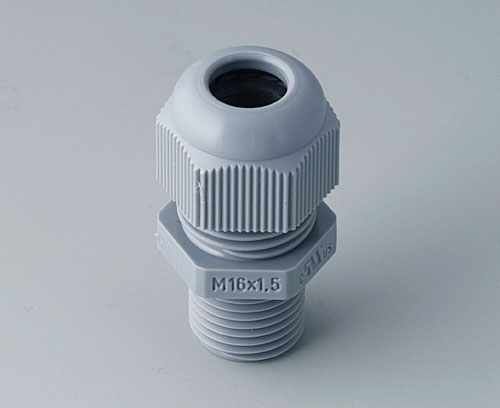

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 15 mm.

Supply 1 cable gland

关闭

C2316618

Cable gland M16x1.5
产品已添加到关注清单中
PA
silver grey RAL 7001
IP 68
  • 技术数据
  • 采购有关数据
材料
颜色
light grey RAL 7035
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
