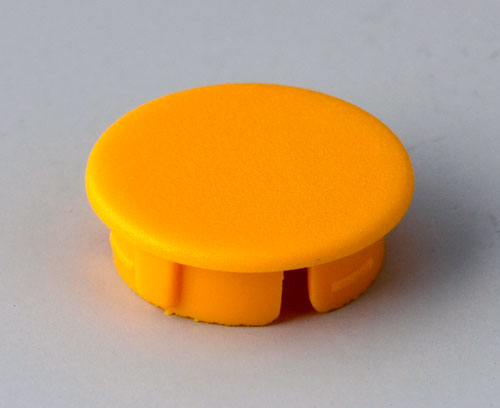

A4116004 Cover 16, without line

A4116004

Cover 16, without line

Suitable for round and wing knob 16. Cover simply to pin up.

Supply

1 cover

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A2516040 ROUND KNOB 16, without line

A2516040

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 round knob

关闭

A2516040

ROUND KNOB 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 4mm
A2516060 ROUND KNOB 16, without line

A2516060

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2516060

ROUND KNOB 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 6mm
A2516068 ROUND KNOB 16, without line

A2516068

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2516068

ROUND KNOB 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
轴孔 6mm
A2516630 ROUND KNOB 16, without line

A2516630

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2516630

ROUND KNOB 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 1/4″
A2516638 ROUND KNOB 16, without line

A2516638

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2516638

ROUND KNOB 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
轴孔 1/4″
A2616040 ROUND KNOB 16, with line

A2616040

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 round knob

关闭

A2616040

ROUND KNOB 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 4mm
A2616060 ROUND KNOB 16, with line

A2616060

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2616060

ROUND KNOB 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 6mm
A2616068 ROUND KNOB 16, with line

A2616068

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2616068

ROUND KNOB 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
轴孔 6mm
A2616630 ROUND KNOB 16, with line

A2616630

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

关闭

A2616630

ROUND KNOB 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 1/4″
A2816060 WING KNOB 16, with line

A2816060

WING KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 wing knob

关闭

A2816060

WING KNOB 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
16x15mm
轴孔 6mm

Customising options for A4116004

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
yellow RAL F12/0-1
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.2 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
