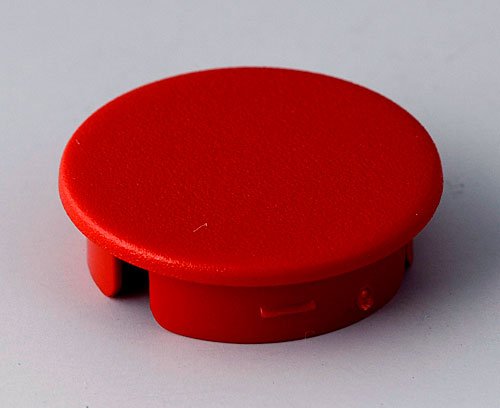

A4123002 Cover 23, without line

A4123002

Cover 23, without line

Suitable for round knobs 23. Cover simply to pin up.

Supply

1 cover

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A2523040 ROUND KNOB 23, without line

A2523040

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

关闭

A2523040

ROUND KNOB 23, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x15mm
轴孔 4mm
A2523060 ROUND KNOB 23, without line

A2523060

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2523060

ROUND KNOB 23, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x15mm
轴孔 6mm

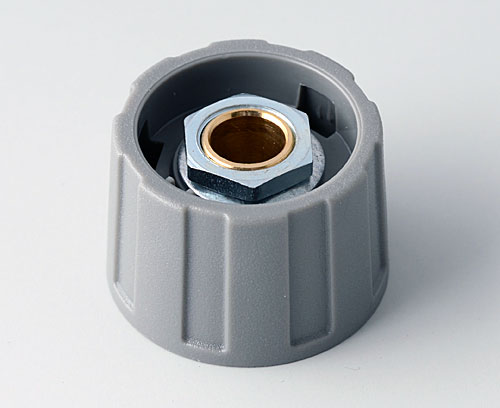

A2523068 ROUND KNOB 23, without line

A2523068

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2523068

ROUND KNOB 23, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
轴孔 6mm

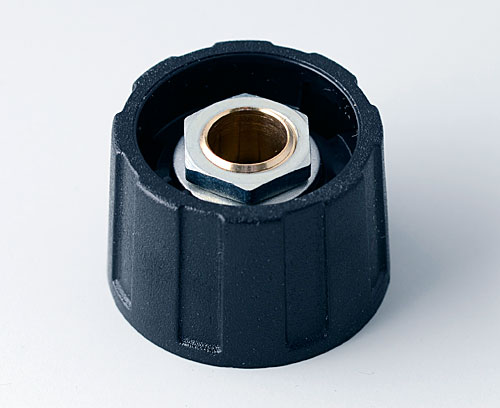

A2523630 ROUND KNOB 23, without line

A2523630

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2523630

ROUND KNOB 23, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x15mm
轴孔 1/4″

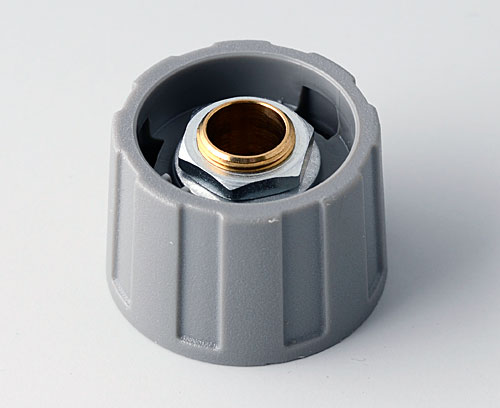

A2523638 ROUND KNOB 23, without line

A2523638

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2523638

ROUND KNOB 23, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
轴孔 1/4″

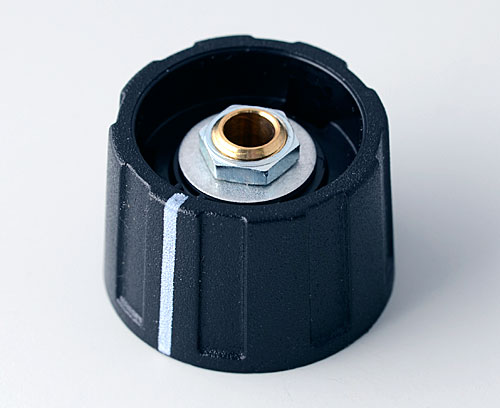

A2623040 ROUND KNOB 23, with line

A2623040

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking. Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

关闭

A2623040

ROUND KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x15mm
轴孔 4mm

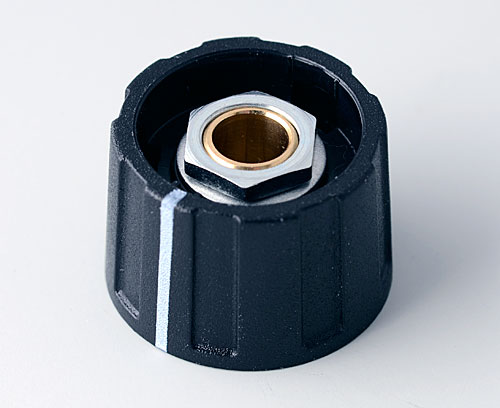

A2623060 ROUND KNOB 23, with line

A2623060

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2623060

ROUND KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x15mm
轴孔 6mm

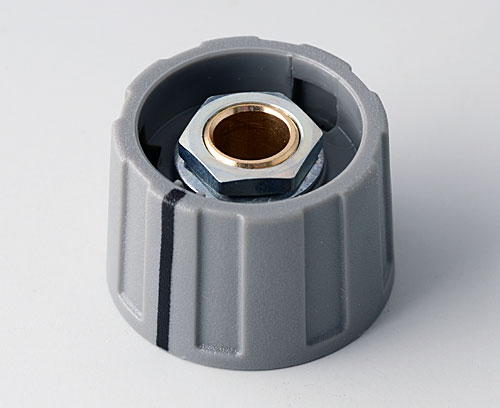

A2623068 ROUND KNOB 23, with line

A2623068

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

关闭

A2623068

ROUND KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
轴孔 6mm

Customising options for A4123002

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
red RAL F12/0-10
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
