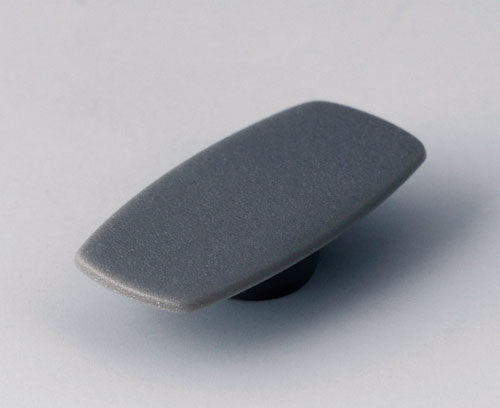

A5023008 Cover 23, without line

A5023008

Cover 23, without line

Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply

1 cover

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

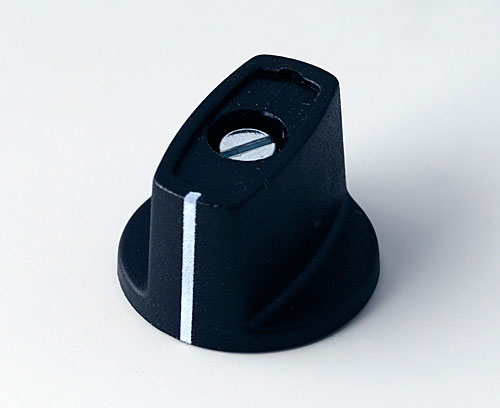

A2423040 SPINDLE-SHAPED KNOB 23, with line

A2423040

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.

Supply 1 spindle-shaped knob

关闭

A2423040

SPINDLE-SHAPED KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x16mm
轴孔 4mm

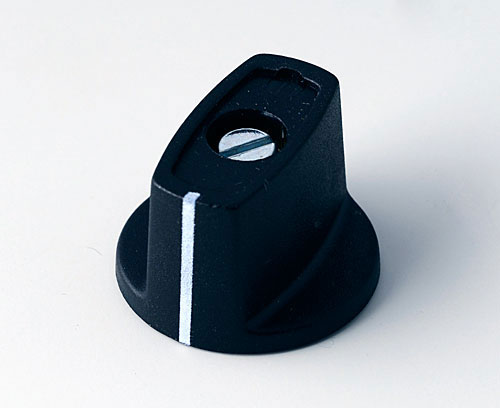

A2423060 SPINDLE-SHAPED KNOB 23, with line

A2423060

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 spindle-shaped knob

关闭

A2423060

SPINDLE-SHAPED KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
23x16mm
轴孔 6mm

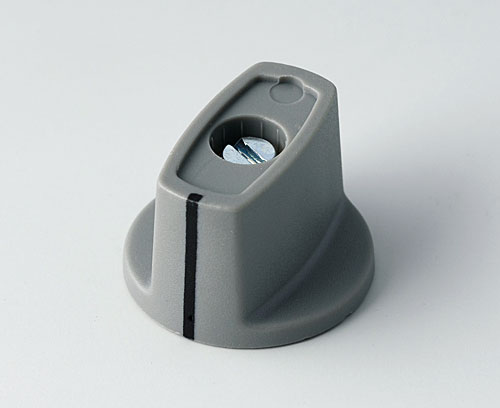

A2423068 SPINDLE-SHAPED KNOB 23, with line

A2423068

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.

Supply 1 spindle-shaped knob

关闭

A2423068

SPINDLE-SHAPED KNOB 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
23x16mm
轴孔 6mm

Customising options for A5023008

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
dusty grey RAL 7037
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.25 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
