A5116000

Nut cover 16, without line

Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply

1 nut cover

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A5116000

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

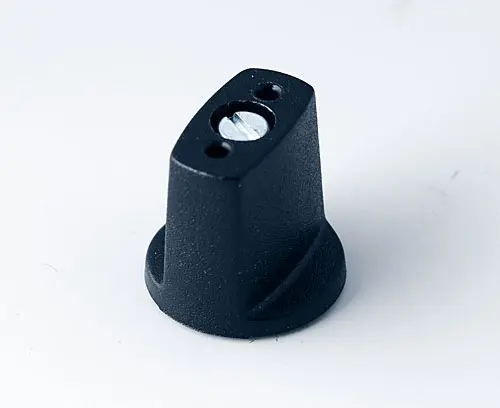

A2316040 SPINDLE-SHAPED KNOB 16, without line

A2316040

SPINDLE-SHAPED KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2316040

SPINDLE-SHAPED KNOB 16, without line
产品已添加到关注清单中

black RAL 9005
16x16mm
轴孔 4mm

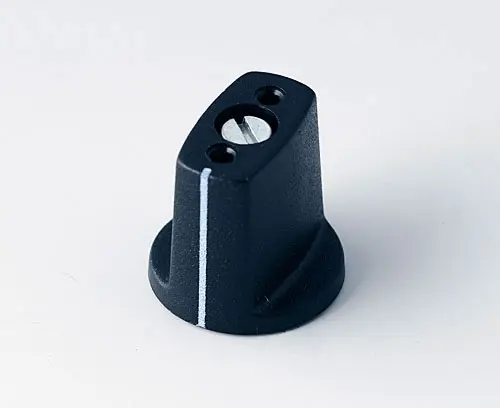

A2416030 SPINDLE-SHAPED KNOB 16, with line

A2416030

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.5 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416030

SPINDLE-SHAPED KNOB 16, with line
产品已添加到关注清单中

black RAL 9005
16x16mm
轴孔 3mm
A2416040 SPINDLE-SHAPED KNOB 16, with line

A2416040

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416040

SPINDLE-SHAPED KNOB 16, with line
产品已添加到关注清单中

black RAL 9005
16x16mm
轴孔 4mm

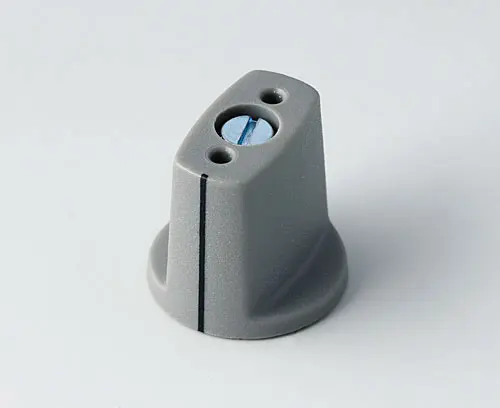

A2416048 SPINDLE-SHAPED KNOB 16, with line

A2416048

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416048

SPINDLE-SHAPED KNOB 16, with line
产品已添加到关注清单中

dusty grey RAL 7037
16x16mm
轴孔 4mm
材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
0.3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
