A5123008
Nut cover 23, without line
Suitable for spindle-shaped knob 23. Nut cover simply to pin up.
Supply1 nut cover
添加到购物车内

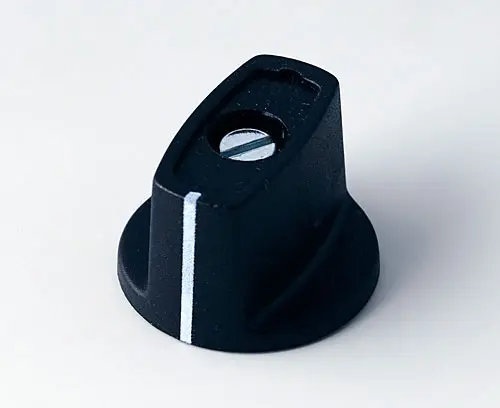

A2423040
SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.
Supply 1 spindle-shaped knob
A2423040
SPINDLE-SHAPED KNOB 23, with line产品已添加到关注清单中
black RAL 9005
23x16mm
轴孔 4mm

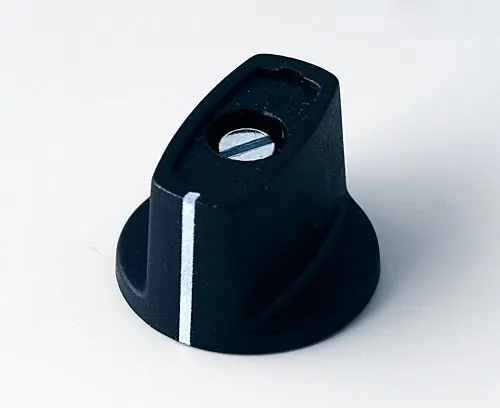

A2423060
SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.
Supply 1 spindle-shaped knob
A2423060
SPINDLE-SHAPED KNOB 23, with line产品已添加到关注清单中
black RAL 9005
23x16mm
轴孔 6mm

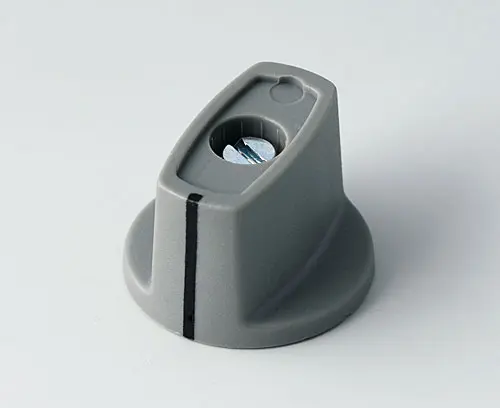

A2423068
SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Supply 1 spindle-shaped knob
A2423068
SPINDLE-SHAPED KNOB 23, with line产品已添加到关注清单中
dusty grey RAL 7037
23x16mm
轴孔 6mm
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 761 KB
Weight/1 part
0.8 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
