A7616000
Nut cover 16, without line
Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.
Supply1 nut cover
添加到购物车内

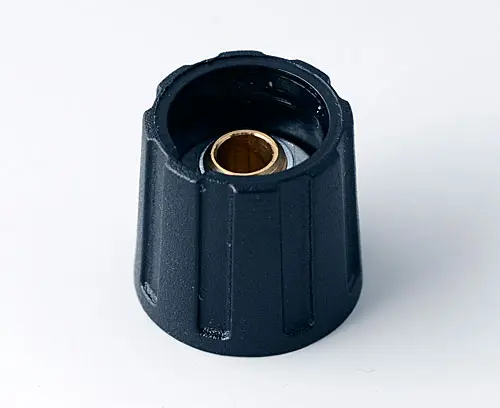

A2516040
ROUND KNOB 16, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 round knob
A2516040
ROUND KNOB 16, without line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 4mm
A2516060
ROUND KNOB 16, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2516060
ROUND KNOB 16, without line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 6mm
A2516068
ROUND KNOB 16, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2516068
ROUND KNOB 16, without line产品已添加到关注清单中
dusty grey RAL 7037
16x15mm
轴孔 6mm

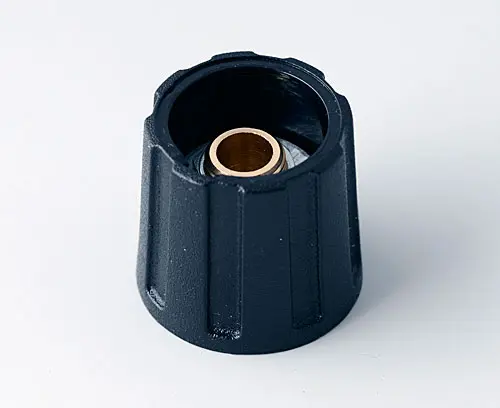

A2516630
ROUND KNOB 16, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2516630
ROUND KNOB 16, without line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 1/4″

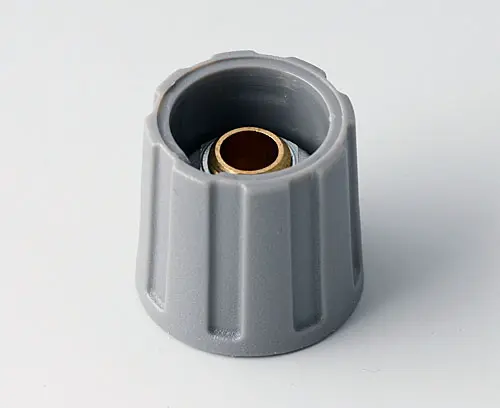

A2516638
ROUND KNOB 16, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2516638
ROUND KNOB 16, without line产品已添加到关注清单中
dusty grey RAL 7037
16x15mm
轴孔 1/4″

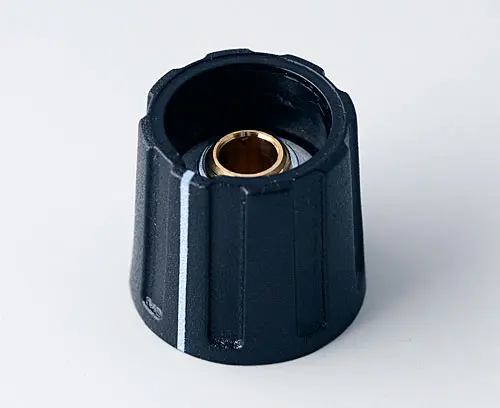

A2616040
ROUND KNOB 16, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 round knob
A2616040
ROUND KNOB 16, with line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 4mm

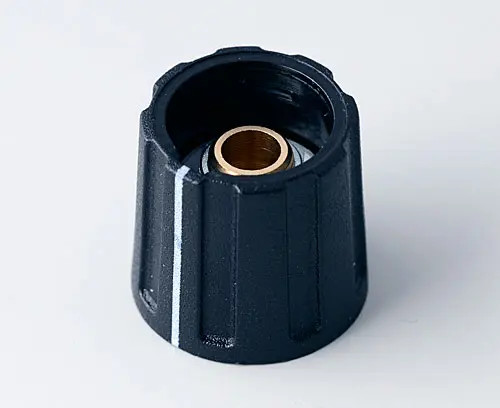

A2616060
ROUND KNOB 16, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2616060
ROUND KNOB 16, with line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 6mm

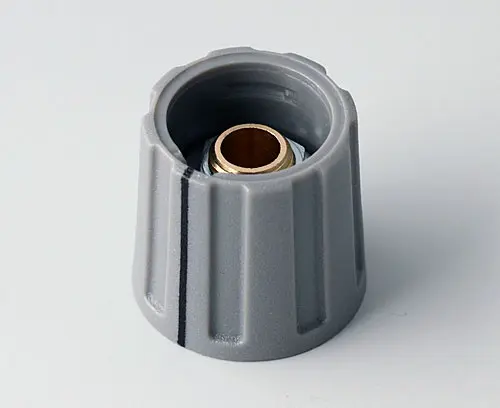

A2616068
ROUND KNOB 16, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2616068
ROUND KNOB 16, with line产品已添加到关注清单中
dusty grey RAL 7037
16x15mm
轴孔 6mm

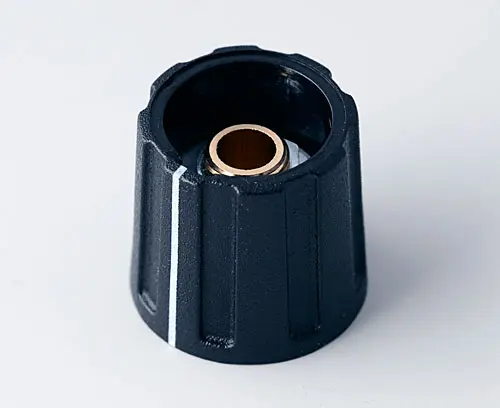

A2616630
ROUND KNOB 16, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 round knob
A2616630
ROUND KNOB 16, with line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 1/4″

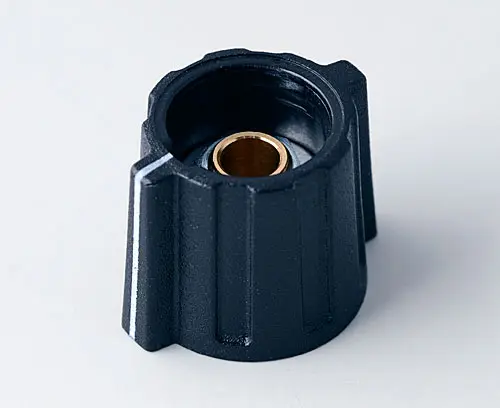

A2816060
WING KNOB 16, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 wing knob
A2816060
WING KNOB 16, with line产品已添加到关注清单中
black RAL 9005
16x15mm
轴孔 6mm
A3116048
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 COM-KNOB (without recess)
A3116048
COM-KNOBS 16, without recess产品已添加到关注清单中
volcano
16x16mm
轴孔 4mm

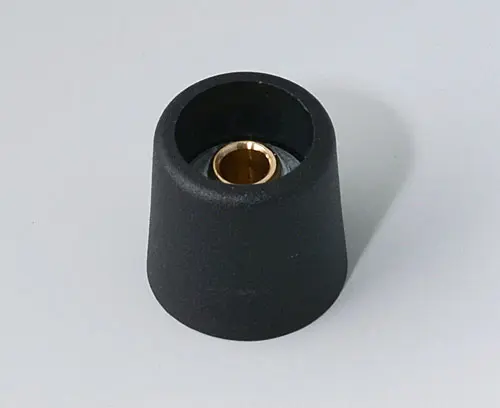

A3116049
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 COM-KNOB (without recess)
A3116049
COM-KNOBS 16, without recess产品已添加到关注清单中
nero
16x16mm
轴孔 4mm

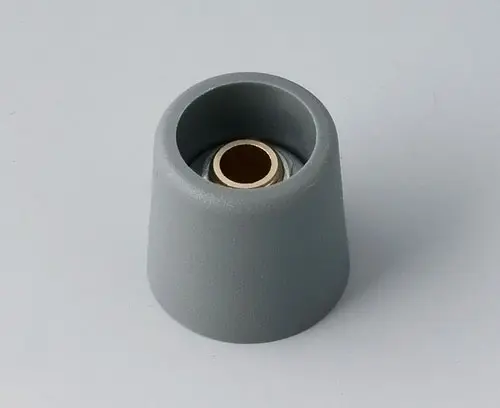

A3116068
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (without recess)
A3116068
COM-KNOBS 16, without recess产品已添加到关注清单中
volcano
16x16mm
轴孔 6mm
A3116069
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (without recess)
A3116069
COM-KNOBS 16, without recess产品已添加到关注清单中
nero
16x16mm
轴孔 6mm
A3116638
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (without recess)
A3116638
COM-KNOBS 16, without recess产品已添加到关注清单中
volcano
16x16mm
轴孔 1/4″

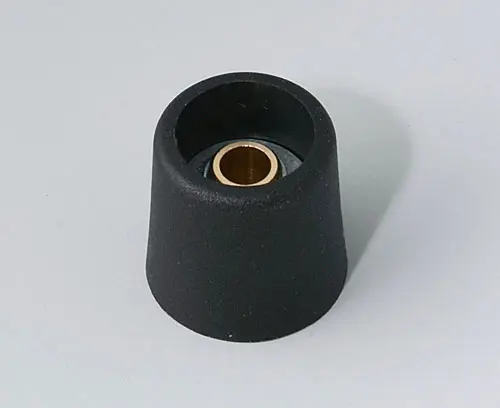

A3116639
COM-KNOBS 16, without recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (without recess)
A3116639
COM-KNOBS 16, without recess产品已添加到关注清单中
nero
16x16mm
轴孔 1/4″
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 761 KB
Weight/1 part
0.3 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
