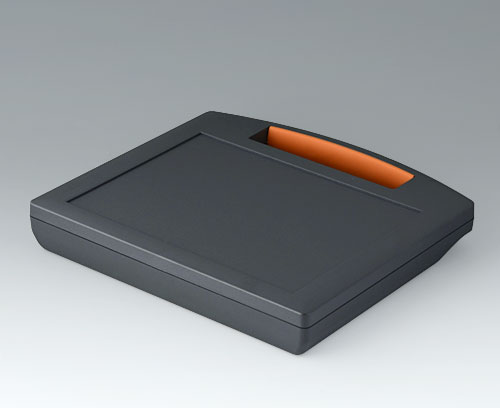

CARRYTEC M slim version

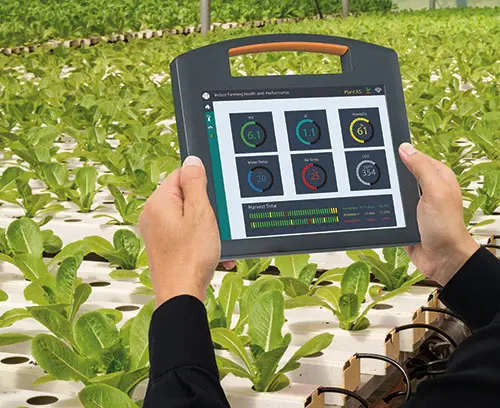

Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.

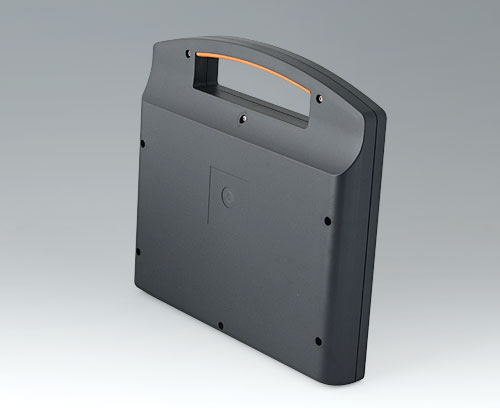

Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply

Top and bottom parts, TPE handle pad, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B4210228

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“保护等级” 附件

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

B4310001

Sealing M
产品已添加到关注清单中

“挂墙支架” 配件

B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

B4308238

Holding clamps
产品已添加到关注清单中

lava

“螺钉” 附件

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
产品已添加到关注清单中

Customising options for B4210228

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

Enclosure

Handle pad
防护等级

Necessary accessories: sealing kit
颜色
Enclosure lava,
Handle pad orange
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
270 mm
高度
247 mm
深度
42 mm
电路板长度，下盒
258 mm
电路板宽度，下盒
176 mm
电路板长度，上盒
258 mm
电路板宽度，上盒
184 mm
Keypad length
219.5 mm
Keypad width
162.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
610 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
