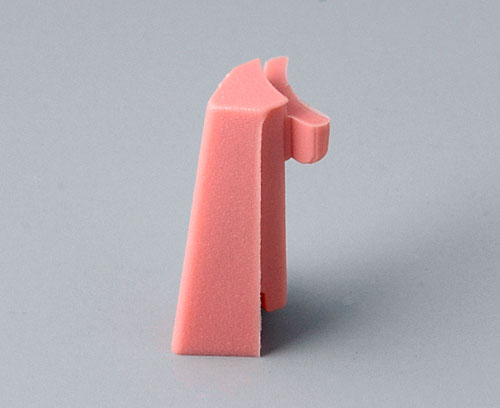

A3316003 Peak 16

A3316003

Peak 16

Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply

1 marking element "Peak"

  • 适配系统部件

系统组件使产品完整

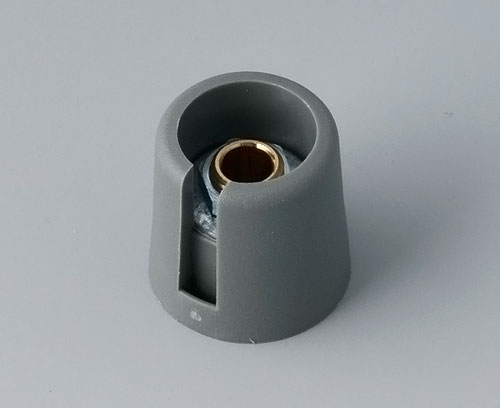

A3016048 COM-KNOBS 16, with  recess

A3016048

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016048

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
volcano
16x16mm
轴孔 4mm

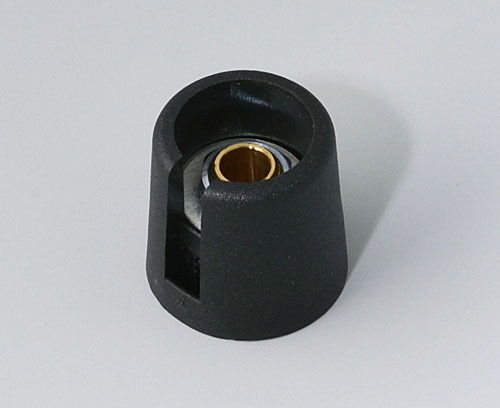

A3016049 COM-KNOBS 16, with recess

A3016049

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016049

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
nero
16x16mm
轴孔 4mm
A3016068 COM-KNOBS 16, with recess

A3016068

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016068

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
volcano
16x16mm
轴孔 6mm

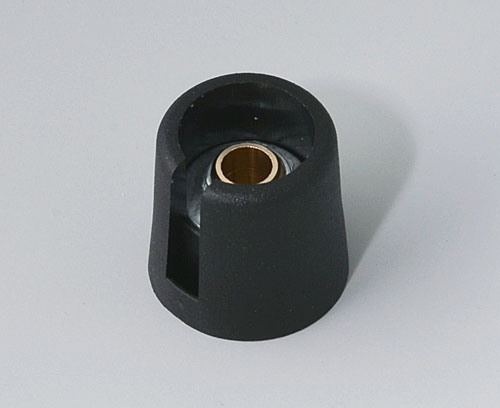

A3016069 COM-KNOBS 16, with recess

A3016069

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016069

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
nero
16x16mm
轴孔 6mm

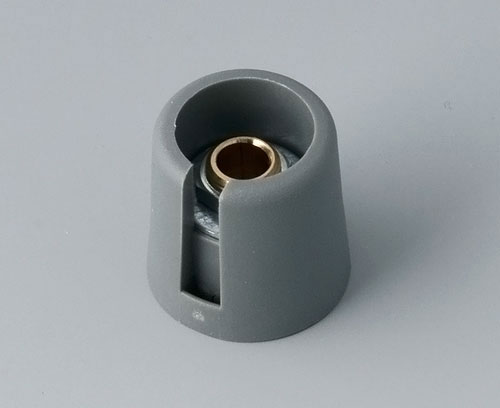

A3016638 COM-KNOBS 16, with recess

A3016638

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016638

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
volcano
16x16mm
轴孔 1/4″
A3016639 COM-KNOBS 16, with recess

A3016639

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

关闭

A3016639

COM-KNOBS 16, with recess
产品已添加到关注清单中
PA 6
nero
16x16mm
轴孔 1/4″
  • 技术数据
  • 采购有关数据
材料
颜色
coral
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.23 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
