DATEC-CONTROL XS, Vers. I

Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version

With closed operating area, recess: 1.6 mm deep

Supply

Top and base part, battery compartment lid, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9076109

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“电池” 配件

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

A9176007

Set of battery clips, 2 x AA
产品已添加到关注清单中

nickel-plated
A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

A9176008

Set of battery clips, 3 x AA
产品已添加到关注清单中

nickel-plated
A9176128 Battery compartment XS, 2 x AA or 1 x 9V

A9176128

Battery compartment XS, 2 x AA or 1 x 9V Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

A9176128

Battery compartment XS, 2 x AA or 1 x 9V
产品已添加到关注清单中
A9176158 Battery compartment XS, 3 x AA

A9176158

Battery compartment XS, 3 x AA Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

A9176158

Battery compartment XS, 3 x AA
产品已添加到关注清单中

off-white RAL 9002
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
产品已添加到关注清单中

50x25x4mm

“底座” 配件

A9176139 Station XS

A9176139

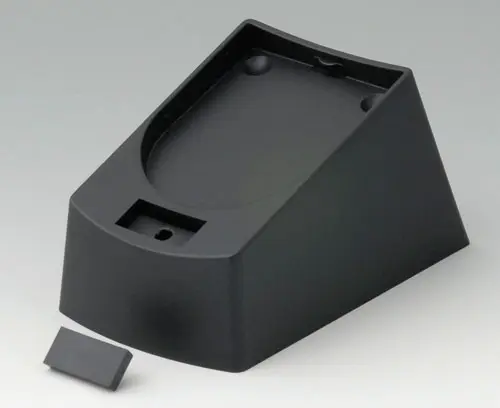

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9176139

Station XS
产品已添加到关注清单中

black RAL 9005
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
产品已添加到关注清单中

volcano

“保护等级” 附件

A9176006 Sealing kit XS

A9176006

Sealing kit XS Application: for increasing the protection class, of DATEC-CONTROL XS.

Supply 1 sealing kit

A9176006

Sealing kit XS
产品已添加到关注清单中
A9176108 Protector XS

A9176108

Protector XS Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

A9176108

Protector XS
产品已添加到关注清单中

volcano

“挂墙支架” 配件

A9226339 Wall suspension element

A9226339

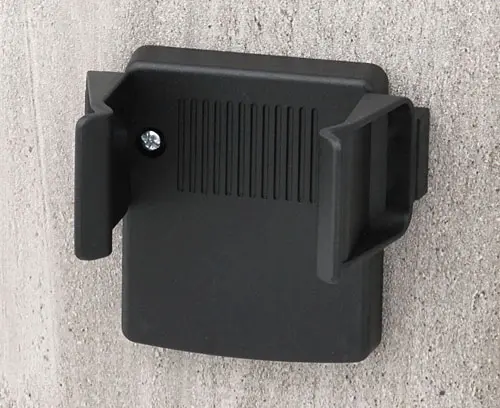

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226339

Wall suspension element
产品已添加到关注清单中

black RAL 9005

“手提” 盒附件

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
产品已添加到关注清单中

volcano

附件

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
产品已添加到关注清单中
gold-plated

Customising options for A9076109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

防护等级

Necessary accessories: sealing kit
颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
200 mm
宽度
94 mm
高度
39.5 mm
电路板长度，下盒
190 mm
电路板宽度，下盒
46 mm
电路板长度，上盒
150 mm
电路板宽度，上盒
47 mm
Keypad length
116 mm
Keypad width
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

External Accessory - miscellaneous

Weight/1 part
125 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
