A9077109 DATEC-CONTROL S, Vers. I

A9077109

DATEC-CONTROL S, Vers. I

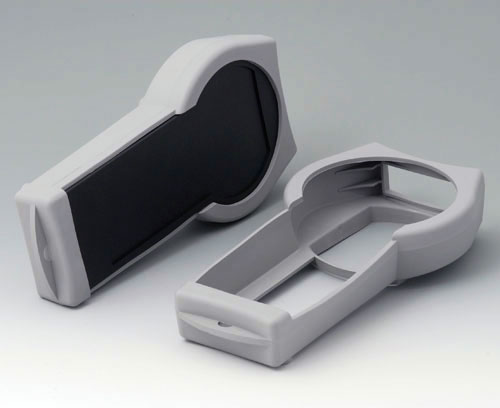

Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version

With closed operating area, recess: 1.7 mm deep

Supply

Top and base part, battery compartment lid, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

关闭

A9174006

Set of battery clips, 1 x 9 V
产品已添加到关注清单中
Steel
tin-plated
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9177310

Battery compartment, 1 x 9 V
产品已添加到关注清单中
ABS (UL 94 HB)
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

关闭

A9345217

Set of battery compartment, 4 x AA
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

“底座” 配件

A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

关闭

A9177139

Station S
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

关闭

A9199005

Strain relief
产品已添加到关注清单中
PA 6
volcano

“保护等级” 附件

A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

关闭

A9177006

Sealing kit S
产品已添加到关注清单中
A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

关闭

A9177008

Protector S
产品已添加到关注清单中
SBS (TPE)
volcano

“挂墙支架” 配件

A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226229

Wall suspension element
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

附件

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178008

Contacts, female
产品已添加到关注清单中
gold-plated

Customising options for A9077109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
IP 65 opt.
Necessary accessories: sealing kit
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
228 mm
Width
117 mm
Height
47 mm
电路板长度,下盒
214 mm
电路板宽度,下盒
62 mm
电路板长度,上盒
213 mm
电路板宽度,上盒
60 mm
Keypad length
169.5 mm
Keypad width
59.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
206 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
