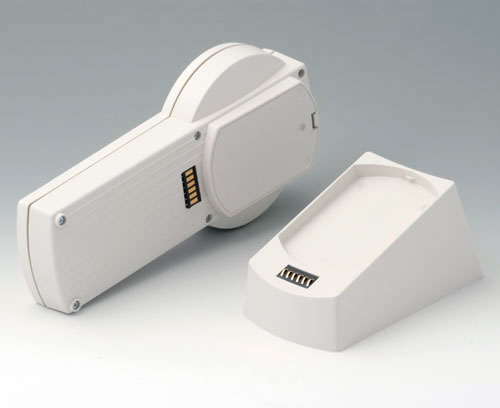

A9077157 SET: DATEC-CONTROL S, Vers. I, station..

A9077157

SET: DATEC-CONTROL S, Vers. I, station..

Enclosure-kit: DATEC-CONTROL S, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base S, 1 male contact (base) and 1 female contact (enclosure).

Supply

Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

关闭

A9174006

Set of battery clips, 1 x 9 V
产品已添加到关注清单中
Steel
tin-plated

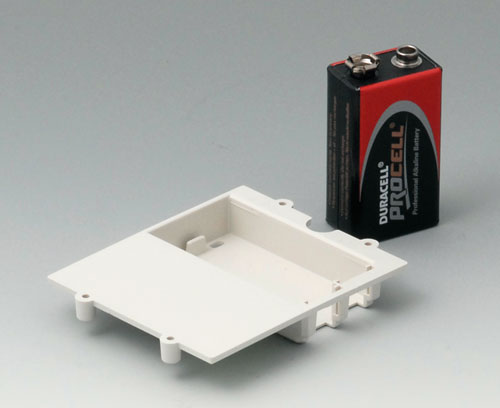

A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9177310

Battery compartment, 1 x 9 V
产品已添加到关注清单中
ABS (UL 94 HB)
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

关闭

A9345217

Set of battery compartment, 4 x AA
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

“保护等级” 附件

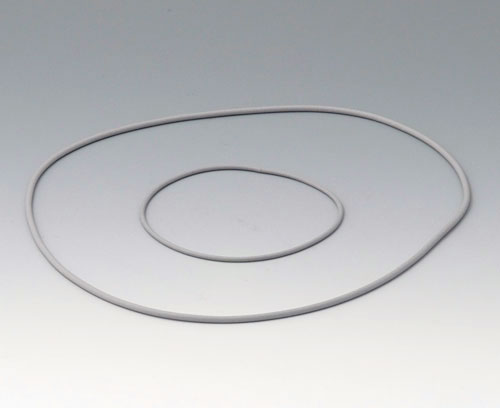

A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

关闭

A9177006

Sealing kit S
产品已添加到关注清单中

Customising options for A9077157

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
IP 65 opt.
Necessary accessories: sealing kit • Attention: additional proofing of the contacts necessary
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
228 mm
Width
117 mm
电路板长度,下盒
214 mm
电路板宽度,下盒
62 mm
电路板长度,上盒
213 mm
电路板宽度,上盒
60 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
314 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
