DIN 标准导轨接线盒
A9079209
DATEC-CONTROL L, Vers. II
Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.
VersionWith maximum sized cutout for digital displays
SupplyTop and base part,end cover, locking pins, mounting set with screws for the case and PCB, rubber feet
添加到购物车内
“电池” 配件
A9178118
Battery compartment holder
Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.
Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws
A9178118
Battery compartment holder产品已添加到关注清单中
volcano
A9178128
Battery compartment, M/L, 4 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 4 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178128
Battery compartment, M/L, 4 x AA产品已添加到关注清单中
volcano
A9178158
Battery compartment, M/L, 5 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 5 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178158
Battery compartment, M/L, 5 x AA产品已添加到关注清单中
volcano

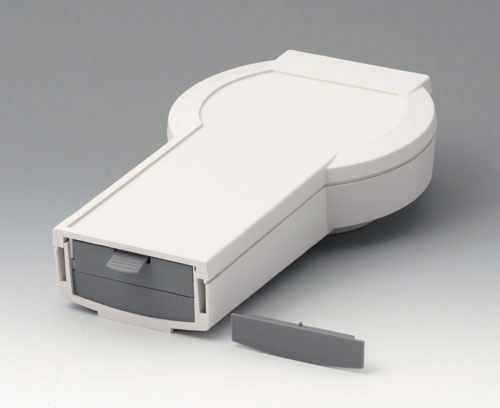

A9178178
End plate for electronic area, Vers. I
Simply inserted into the guides in the bottom part.
Version To close the electronic area
Supply 1 end plate for electronic area
A9178178
End plate for electronic area, Vers. I产品已添加到关注清单中
volcano
A9178188
End plate for electronic area, Vers. II
Simply inserted into the guides in the bottom part.
Version For use with a PCMCIA-card type I
Supply 1 end plate for electronic area
A9178188
End plate for electronic area, Vers. II产品已添加到关注清单中
volcano

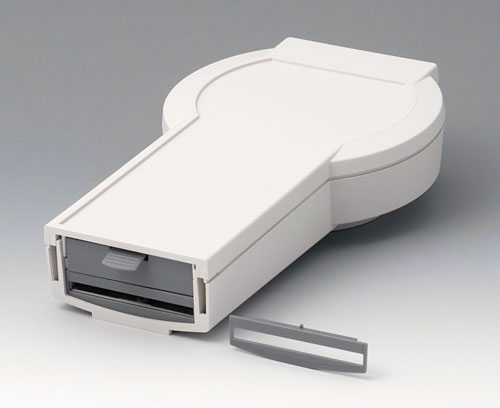

A9178198
End plate for electronic area, Vers. III
Simply inserted into the guides in the bottom part.
Version For use with a PCMCIA-card type I
Supply 1 end plate for electronic area
A9178198
End plate for electronic area, Vers. III产品已添加到关注清单中
volcano
“底座” 配件
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, male产品已添加到关注清单中
A9178118
Battery compartment holder
Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.
Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws
A9178118
Battery compartment holder产品已添加到关注清单中
volcano
A9178128
Battery compartment, M/L, 4 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 4 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178128
Battery compartment, M/L, 4 x AA产品已添加到关注清单中
volcano
A9178139
Station, Vers. I
Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.
Version Desktop version
Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads
A9178139
Station, Vers. I产品已添加到关注清单中
black RAL 9005
A9178158
Battery compartment, M/L, 5 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 5 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178158
Battery compartment, M/L, 5 x AA产品已添加到关注清单中
volcano
A9178169
Station, Vers. II
Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.
Version Wall-mounting
Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism
A9178169
Station, Vers. II产品已添加到关注清单中
black RAL 9005
“保护等级” 附件
A9179001
Display window L
The display window protects the installed display and achieves protection class within the display area. Without printing.
Supply 1 display window, 1 adhesive foil
A9179001
Display window L产品已添加到关注清单中
clear
A9179006
Sealing kit L
Application: for increasing the protection class, of DATEC-CONTROL L.
Supply 1 sealing kit
A9179006
Sealing kit L产品已添加到关注清单中
A9179108
Protector L
Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Version without hanging belt.
Supply 1 protector
A9179108
Protector L产品已添加到关注清单中
volcano
A9179208
Protector L
Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Version with shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle).
Supply 1 protector, 1 shoulder strap
A9179208
Protector L产品已添加到关注清单中
volcano
“挂墙支架” 配件
A9226119
Wall suspension element
Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226119
Wall suspension element产品已添加到关注清单中
black RAL 9005
附件
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, female产品已添加到关注清单中
Customising options for A9079209
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
防护等级
Necessary accessories: sealing kit, display window (set with adhesive foil)
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
266 mm
宽度
144 mm
高度
60 mm
电路板长度，下盒
230 mm
电路板宽度，下盒
80 mm
电路板长度，上盒
115 mm
电路板宽度，上盒
78 mm
Display length, base
66 mm
Display width, base
99 mm
Keypad length
209.9 mm
Keypad width
77.8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 289 KB
- AutoCAD DWG-File 620 KB
- AutoCAD DXF-File 2,359 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 9,327 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007906.x_t 9,574 KB
- 00007906.STEP 21,173 KB
- 00007906.SAT 32,972 KB
External Accessory - miscellaneous
Weight/1 part
272 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9079209请务必索取报价！
