A9177137

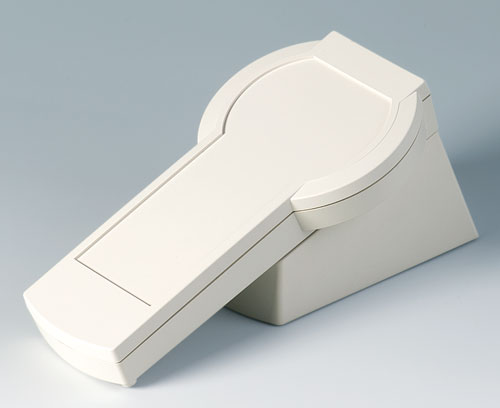

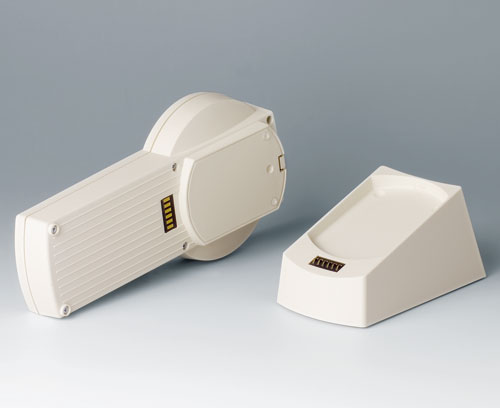

Station S

Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version

Desktop version

Supply

1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

AltText

A9077107

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

关闭

A9077107

DATEC-CONTROL S, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.
AltText

A9077207

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

关闭

A9077207

DATEC-CONTROL S, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.

“底座” 配件

AltText

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

关闭

A9199005

Strain relief
产品已添加到关注清单中
PA 6
volcano

附件

AltText

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated

Customising options for A9177137

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
108 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
