DIN 标准导轨接线盒
B4016217
DATEC-TERMINAL M, Vers. II

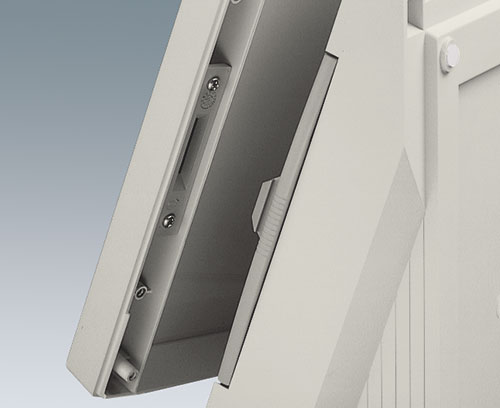

Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Machined for assembly of hinge and quick-action lock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
添加到购物车内
需加附件使产品完整
B4016417
Lid M closed, flat
Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply 1 lid, 2 screws M3
B4016417
Lid M closed, flat产品已添加到关注清单中
off-white RAL 9002
134x62x24mm
B4016457
Lid M closed, high
Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply 1 lid, 2 screws M3
B4016457
Lid M closed, high产品已添加到关注清单中
off-white RAL 9002
134x67x38mm
B4016617
Cover M, flat
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016617
Cover M, flat产品已添加到关注清单中
off-white RAL 9002
168x220x29mm
B4016621
Cover M, flat
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016621
Cover M, flat产品已添加到关注清单中
transparent
168x220x29mm
B4016631
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016631
Cover M, convex产品已添加到关注清单中
transparent
168x220x29mm
B4016637
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016637
Cover M, convex产品已添加到关注清单中
off-white RAL 9002
168x220x29mm
B4016657
Cover M, high
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016657
Cover M, high产品已添加到关注清单中
off-white RAL 9002
168x220x50mm
B4016671
Cover strip M / L
For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016671
Cover strip M / L产品已添加到关注清单中
transparent
B4016677
Cover strip M / L
For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016677
Cover strip M / L产品已添加到关注清单中
off-white RAL 9002
B4116116
Front panel MH
Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.
Supply 1 front panel, 4 screws diameter 3 mm
B4116116
Front panel MH产品已添加到关注清单中
matt anodised
128x209x2mm
“挂墙支架” 配件
B4116147
Wall suspension element M
Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.
Supply 1 wall suspension element, 2 screws M3
B4116147
Wall suspension element M产品已添加到关注清单中
galvanized
214x126x12mm
Customising options for B4016217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
防护等级
Necessary accessories: cover / cover convex and closed lid
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
168 mm
深度
272 mm
高度
101 mm
电路板长度，下盒
255 mm
电路板宽度，下盒
124 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
- Hinge/quick-action lock/keylock, DATEC-TERMINAL M/L vers. II + III, assembly instruction (English) 2,644 KB
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 255 KB
- AutoCAD DWG-File 559 KB
- AutoCAD DXF-File 2,012 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 3,898 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008190.x_t 5,324 KB
- 00008190.STEP 12,705 KB
- 00008190.SAT 14,623 KB
Weight/1 part
460 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B4016217请务必索取报价！
