B7110109

Belt / pocket clip

Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 clip, assembly kit

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B7110109

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
B7000109 ERGO-CASE S, flat

B7000109

ERGO-CASE S, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

B7000109

ERGO-CASE S, flat
产品已添加到关注清单中

black RAL 9005
80x96x32mm
B7005109 ERGO-CASE S, high

B7005109

ERGO-CASE S, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

B7005109

ERGO-CASE S, high
产品已添加到关注清单中

black RAL 9005
80x96x44mm

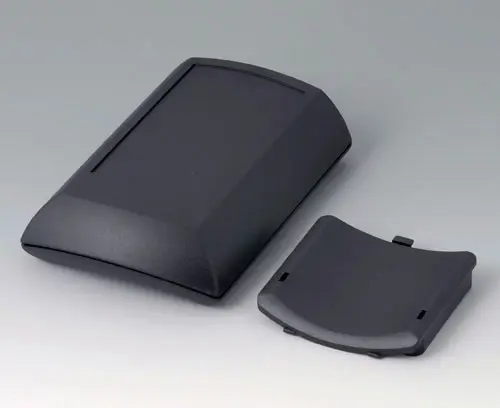

B7010109 ERGO-CASE M, flat

B7010109

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

B7010109

ERGO-CASE M, flat
产品已添加到关注清单中

black RAL 9005
150x100x40mm

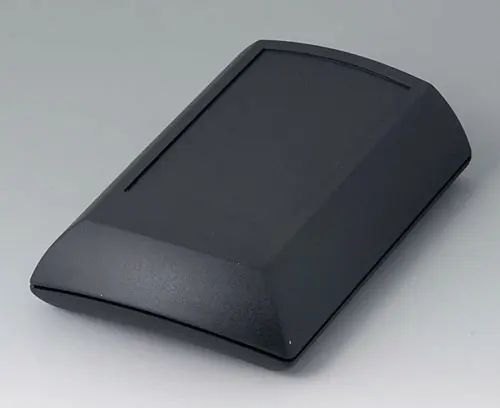

B7010209 ERGO-CASE M, flat

B7010209

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

B7010209

ERGO-CASE M, flat
产品已添加到关注清单中

black RAL 9005
150x100x40mm
B7015109 ERGO-CASE M, high

B7015109

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With high top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

B7015109

ERGO-CASE M, high
产品已添加到关注清单中

black RAL 9005
150x100x55mm
B7015209 ERGO-CASE M, high

B7015209

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

B7015209

ERGO-CASE M, high
产品已添加到关注清单中

black RAL 9005
150x100x55mm

Customising options for B7110109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B7110109请务必索取报价！
