B5403217 SLIM-CASE M, Vers. V

B5403217

SLIM-CASE M, Vers. V

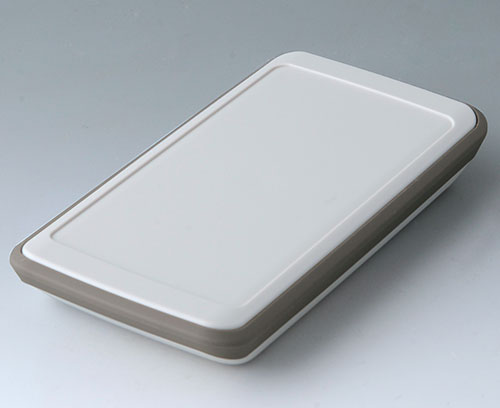

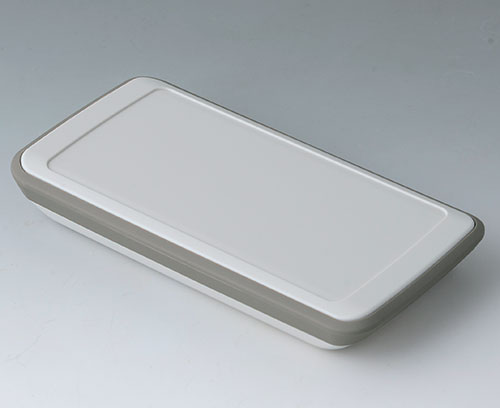

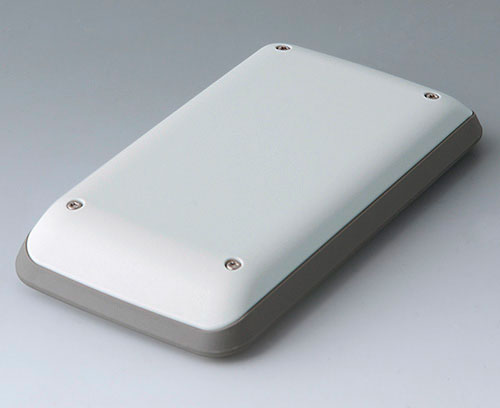

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version

With TPE intermediate ring and operating panel recessed 1 mm

Supply

Top and bottom part, TPE intermediate ring, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
产品已添加到关注清单中
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T08

Torx T8 screwdriver
产品已添加到关注清单中

Customising options for B5403217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ASA+PC (UL 94 V-0)
Bottom and top part
SEBS (TPE)
Intermediate ring
防护等级
颜色
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
148 mm
Width
74 mm
Height
22 mm
电路板长度,下盒
126 mm
电路板宽度,下盒
64 mm
电路板长度,上盒
130 mm
电路板宽度,上盒
64 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
83 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
