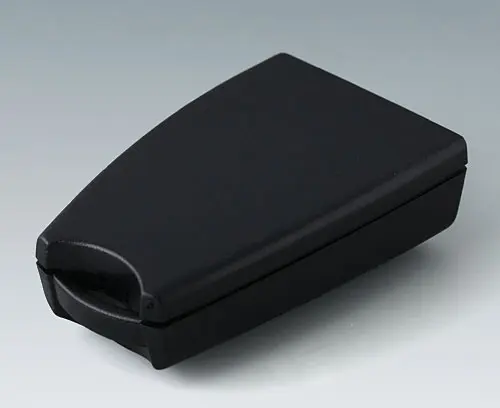

A9064209 SMART-CASE XS

A9064209

SMART-CASE XS

Miniature case composed of 2 parts with eyelet hole for a keyring. Possibilities for fixing PCBs in base part. Polished front area for utmost effectiveness when exposed to infra-red light. Assembly of top and base part by screwing. Space for a 12 V round cell and small round cells.

Supply

Base and top part, 1 screw

  • 适配系统部件
  • 按客户要求修改加工

“手提” 盒附件

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

关闭

A9164001

Key ring
产品已添加到关注清单中
Steel
nickel-plated
20.5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

关闭

B9100063

Carrying strap, textile lanyard
产品已添加到关注清单中
black
860mm

Customising options for A9064209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
58 mm
Width
35.6 mm
Height
19 mm
电路板长度,下盒
47 mm
电路板宽度,下盒
29 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
