A9168039

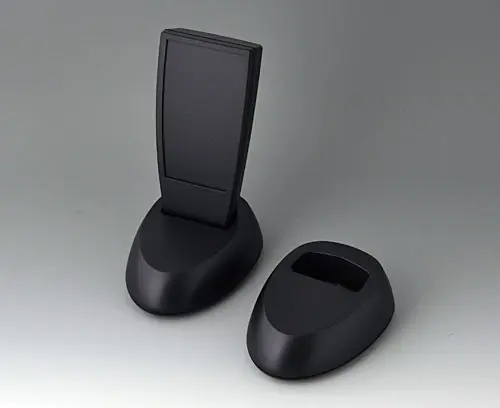

Station XL

Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply

Bottom and top part, rubber feet, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9168039

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

系统组件使产品完整

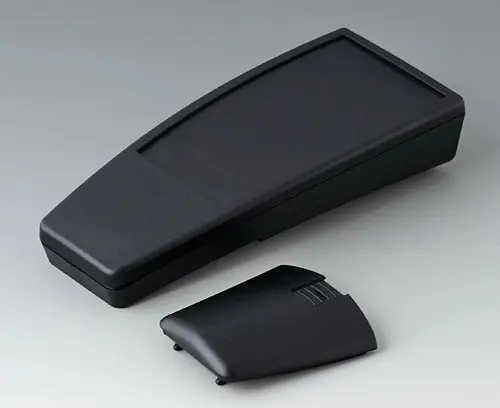

A9068109 SMART-CASE XL, Vers. I

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

A9068109

SMART-CASE XL, Vers. I
产品已添加到关注清单中

black RAL 9005
168x74.4x35.4mm

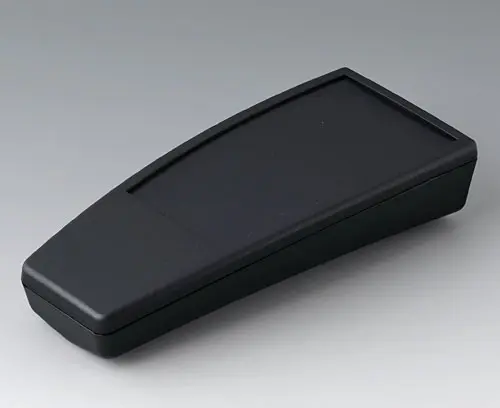

A9068119 SMART-CASE XL, Vers. II

A9068119

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

A9068119

SMART-CASE XL, Vers. II
产品已添加到关注清单中

black RAL 9005
168x74.4x35.4mm
,
A9068209 SMART-CASE XL, Vers. I

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

A9068209

SMART-CASE XL, Vers. I
产品已添加到关注清单中

black RAL 9005
168x74.4x35.4mm
A9068219 SMART-CASE XL, Vers. II

A9068219

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

A9068219

SMART-CASE XL, Vers. II
产品已添加到关注清单中

black RAL 9005
168x74.4x35.4mm
,

附件

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

A9166004

Set of pull-relief
产品已添加到关注清单中

volcano
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

A9193032

Spring contact
产品已添加到关注清单中

Customising options for A9168039

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
电路板长度，下盒
123 mm
电路板宽度，下盒
88 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
96 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
