B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II

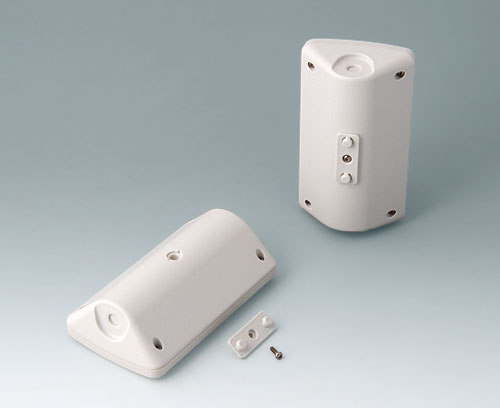

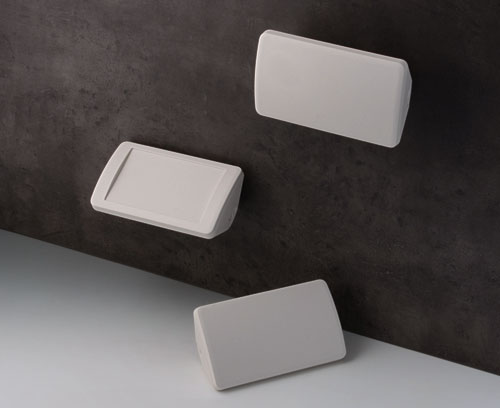

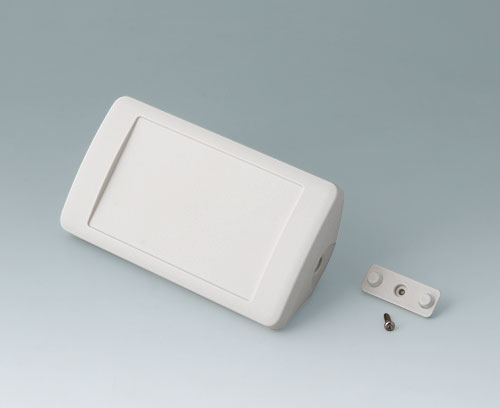

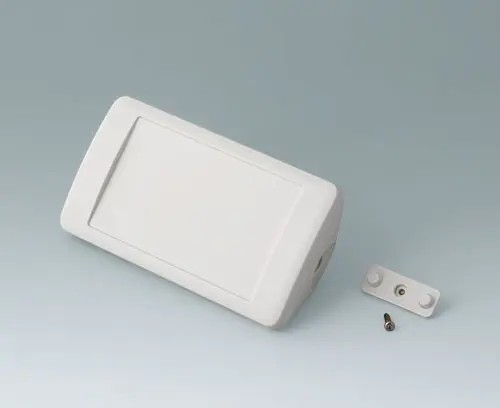

Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Case-top with recessed operating area

Supply

Top and bottom parts, assembly kit incl. universal adapter

  • 适配系统部件
  • 按客户要求修改加工

“底座” 配件

B4705207 Desktop stand set

B4705207

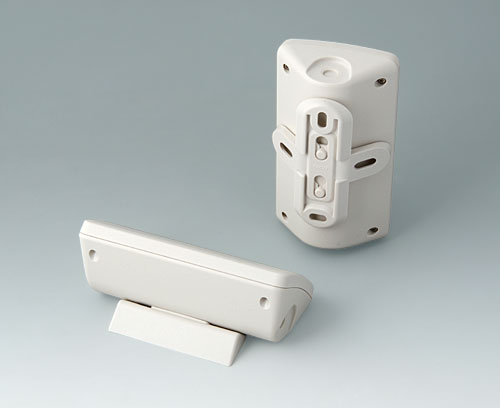

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

关闭

B4705207

Desktop stand set
产品已添加到关注清单中
ASA+PC (UL 94 V-0)

“保护等级” 附件

B4708920 Seal S

B4708920

Seal S Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

关闭

B4708920

Seal S
产品已添加到关注清单中

“挂墙支架” 配件

B4705907 Wall suspension element

B4705907

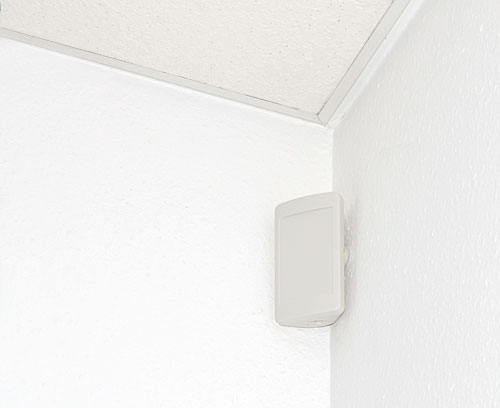

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

关闭

B4705907

Wall suspension element
产品已添加到关注清单中
ASA+PC (UL 94 V-0)

“螺钉” 附件

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
产品已添加到关注清单中
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T08

Torx T8 screwdriver
产品已添加到关注清单中

Customising options for B4608207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
IP 40, IP 55 opt.
Necessary accessories: sealing
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
142 mm
Width
81 mm
Height
46 mm
电路板长度,下盒
120 mm
电路板宽度,下盒
58 mm
电路板长度,上盒
128 mm
电路板宽度,上盒
68 mm
Keypad length
103 mm
Keypad width
63 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
109 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
