C6502010 Opening tool set

C6502010

Opening tool set

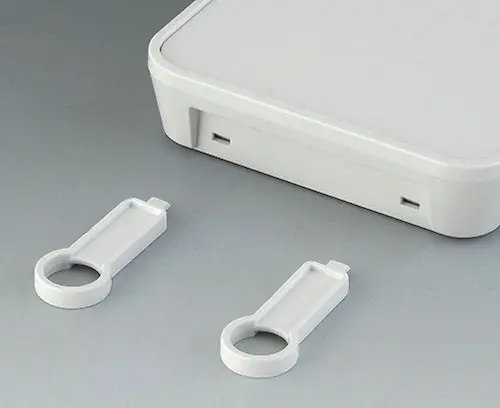

Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply

2 opening tools

  • 应用于
C6402107 SMART-PANEL S84

C6402107

SMART-PANEL S84 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6402107

SMART-PANEL S84
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
84x84x21.3mm
IP 40
C6404107 SMART-PANEL S114

C6404107

SMART-PANEL S114 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6404107

SMART-PANEL S114
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
114x114x21.3mm
IP 40
C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6406107

SMART-PANEL E155
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
155x84x21.3mm
IP 40
  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
traffic white RAL 9016
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
