DIN 标准导轨接线盒
C8017221

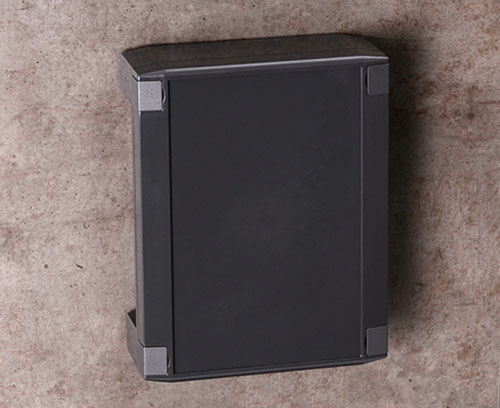

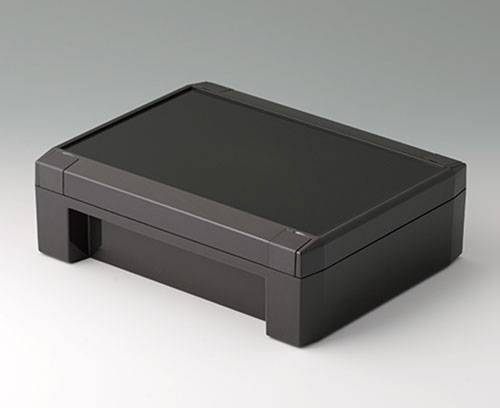

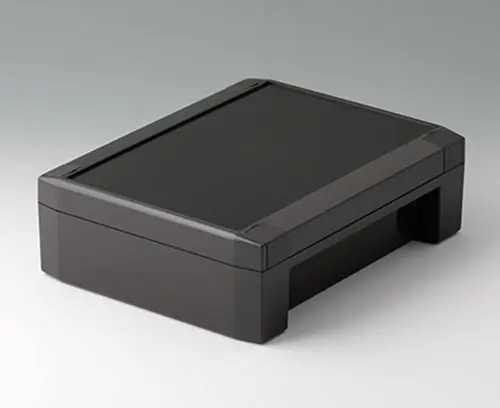

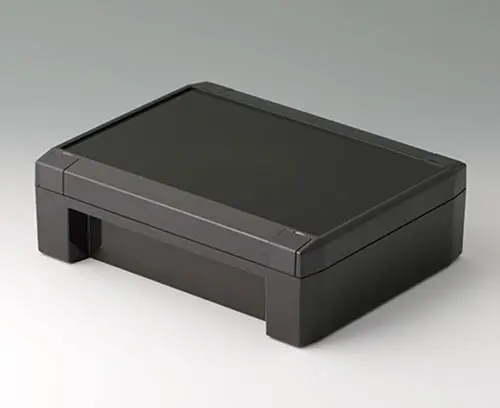

SOLID-BOX 175
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
1 bottom and 1 top part with seal, 4 design trims, assembly kit
添加到购物车内
“挂墙支架” 配件
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracket产品已添加到关注清单中
anthracite grey RAL 7016
100x100x20mm
C2299031
Securing hinge for the cover
For securing the cover (top part) when opening the enclosure.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Supply 2 securing hinges
C2299031
Securing hinge for the cover产品已添加到关注清单中
natural-coloured
C8100360
Internal hinge set
Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Supply 2 hinges, 4 screws
C8100360
Internal hinge set产品已添加到关注清单中
“螺钉” 附件
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)产品已添加到关注清单中
附件
C8100188
Set of enclosure feet
Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.
Supply 4 enclosure feet
C8100188
Set of enclosure feet产品已添加到关注清单中
volcano
Customising options for C8017221
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料

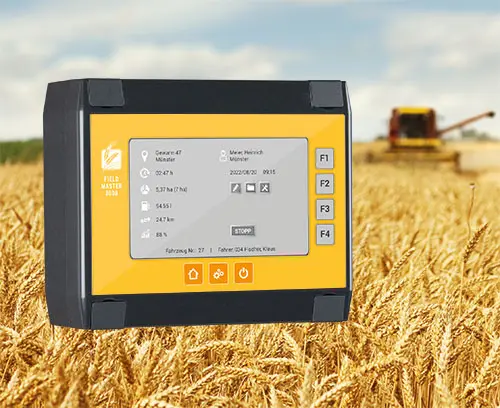

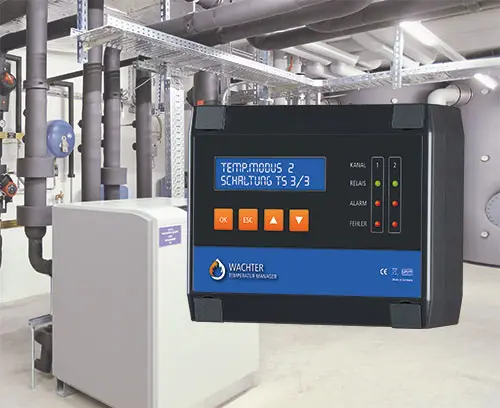

- 应用示例
- 采购有关数据
材料
防护等级
,
,
颜色
anthracite grey RAL 7016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
225 mm
宽度
175 mm
高度
70 mm
电路板长度，下盒
215 mm
电路板宽度，下盒
132 mm
电路板长度，上盒
215 mm
电路板宽度，上盒
132 mm
Keypad length
208.8 mm
Keypad width
133 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Group)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 530 KB
- AutoCAD DWG-File 1,580 KB
- AutoCAD DXF-File 6,270 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 3,452 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028753.x_t 10,724 KB
- 00028753.step 25,214 KB
- 00028753.sat 33,081 KB
Weight/1 part
598 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
