B2902039 Holder S

B2902039

Holder S

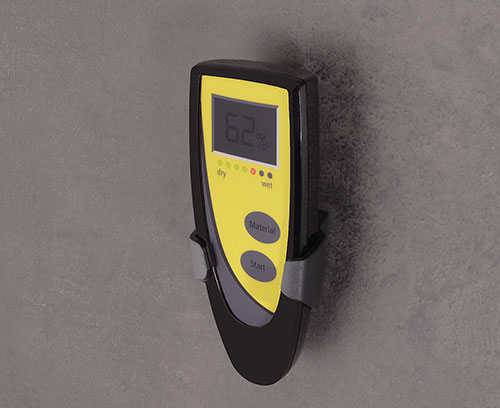

Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply

1 holder

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

B2802016 STYLE-CASE S

B2802016

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2802016

STYLE-CASE S
产品已添加到关注清单中
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40

附件

B2902031 Adhesive foil S

B2902031

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

B2902031

Adhesive foil S
产品已添加到关注清单中

Customising options for B2902039

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
