B1370028

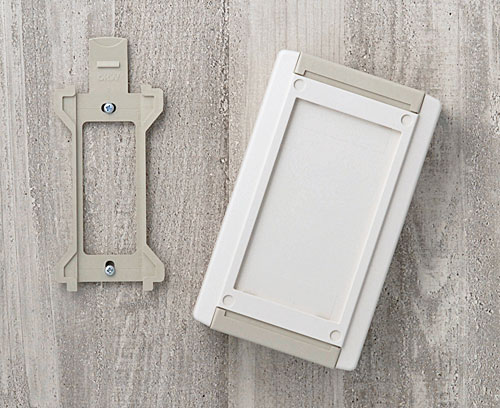

Wall suspension element for Toptec 194

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B1370028

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
B1070365 TOPTEC 194 H, Vers. I

B1070365

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

B1070365

TOPTEC 194 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
194x115x68mm
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1070465

TOPTEC 194 H, Vers. II
产品已添加到关注清单中

off-white RAL 9002
194x115x68mm
B1075365 TOPTEC 194 F, Vers. I

B1075365

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

B1075365

TOPTEC 194 F, Vers. I
产品已添加到关注清单中

off-white RAL 9002
194x115x46mm
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1075465

TOPTEC 194 F, Vers. II
产品已添加到关注清单中

off-white RAL 9002
194x115x46mm

Customising options for B1370028

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
pebble grey RAL 7032
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
