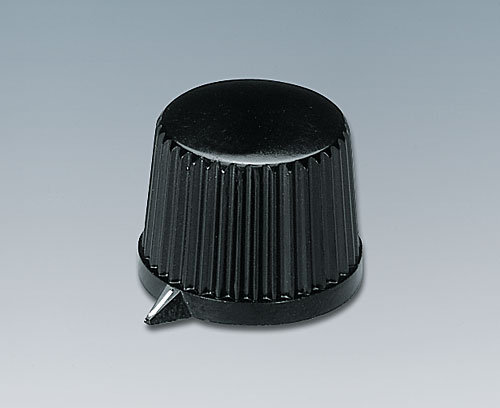

A1313540 TUNING KNOB, with lateral screw fixing

A1313540

TUNING KNOB, with lateral screw fixing

Suitable for rotary potentiometer with round shaft ends and indicator. White marking.

Supply

1 tuning knob

  • 按客户要求修改加工

Customising options for A1313540

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Diameter
20 mm
Height
15.4 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
10.3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Taiwan
