B4054207 UNITEC S, 0.6/0.6

B4054207

UNITEC S, 0.6/0.6

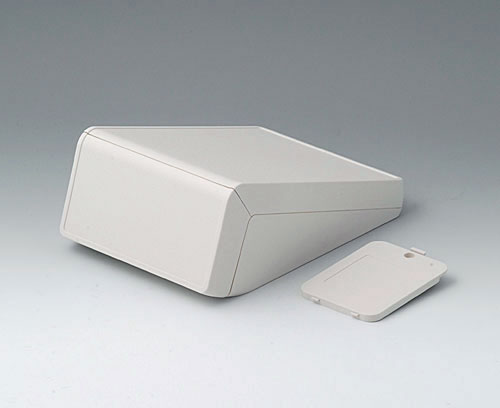

Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 0.6 mm. All-round graphic overlays may also be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version

With battery compartment 3 x AA

Supply

1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“挂墙支架” 配件

B4154307 Wall suspension element S

B4154307

Wall suspension element S Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

关闭

B4154307

Wall suspension element S
产品已添加到关注清单中
off-white RAL 9002

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中

附件

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9212330

Anti-slide feet 12 x 3.5 mm
产品已添加到关注清单中
transparent

Customising options for B4054207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
125 mm
Depth
177 mm
Height
69 mm
电路板长度,下盒
134 mm
电路板宽度,下盒
112 mm
电路板长度,上盒
148 mm
电路板宽度,上盒
112 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
236 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
