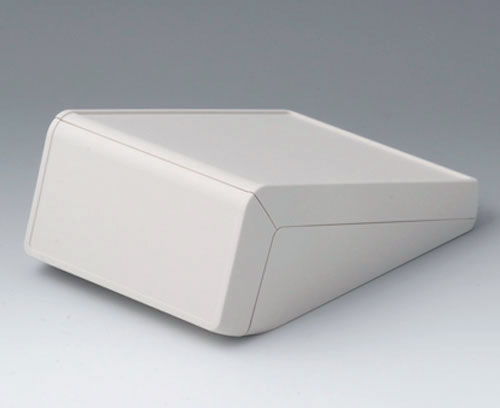

B4056137 UNITEC M, 0.6/1.4

B4056137

UNITEC M, 0.6/1.4

Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version

Sans compartiment piles

Supply

1 bottom part, top part and front part, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“挂墙支架” 配件

B4156307 Wall suspension element M

B4156307

Wall suspension element M Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

关闭

B4156307

Wall suspension element M
产品已添加到关注清单中
off-white RAL 9002

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中

附件

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9212330

Anti-slide feet 12 x 3.5 mm
产品已添加到关注清单中
transparent

Customising options for B4056137

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料

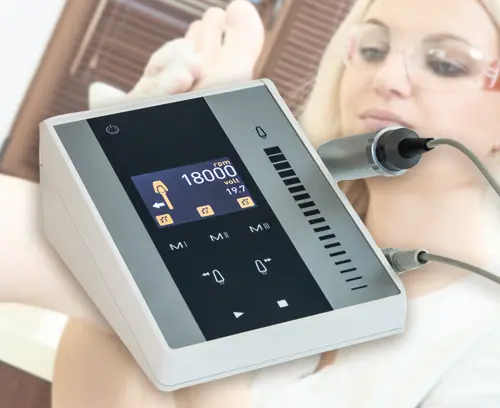

  • 应用示例
  • 采购有关数据
防护等级
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
148 mm
Depth
210 mm
Height
80 mm
电路板长度,下盒
166 mm
电路板宽度,下盒
132 mm
电路板长度,上盒
180 mm
电路板宽度,上盒
132 mm
Keypad length
178.6 mm
Keypad width
127.6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
276 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
