Accessories for enclosures
A9190012
Set of battery clips, 4 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply2 single contact positive, 2 single contact negative
Generate Your PDF Datasheet for A9190012
Please select the product details you would like to include in the PDF.
Add to my basket
A9075107

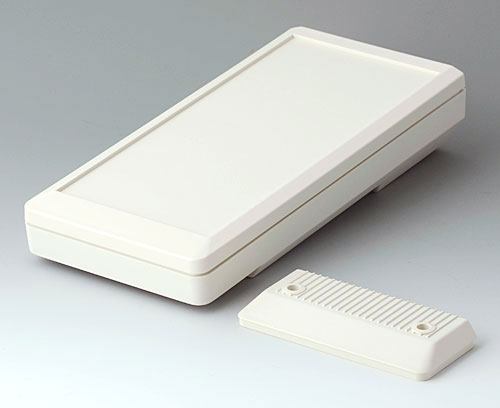

DATEC-MOBIL-BOX L, Vers. I
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.
Version Top with closed operating area, recessed by 2.2 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9075107
DATEC-MOBIL-BOX L, Vers. Iproduct added to your basket
off-white RAL 9002
252x121x50mm
A9075109
DATEC-MOBIL-BOX L, Vers. I
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.
Version Top with closed operating area, recessed by 2.2 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9075109
DATEC-MOBIL-BOX L, Vers. Iproduct added to your basket
black RAL 9005
252x121x50mm
A9075207

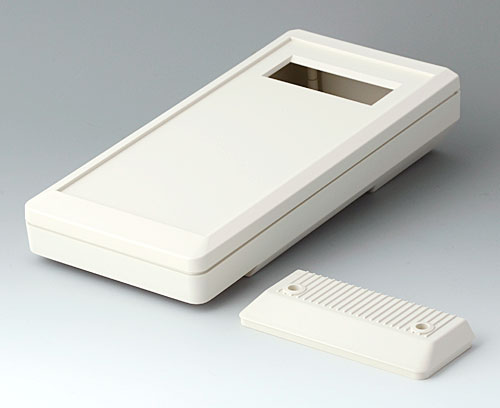

DATEC-MOBIL-BOX L, Vers. II
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.
Version Top with display cutout for LCD modules of 20 characters x 4 lines
Supply Case-top and base, battery compartment lid, assembly kit
A9075207
DATEC-MOBIL-BOX L, Vers. IIproduct added to your basket
off-white RAL 9002
252x121x50mm
A9075209
DATEC-MOBIL-BOX L, Vers. II
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.
Version Top with display cutout for LCD modules of 20 characters x 4 lines
Supply Case-top and base, battery compartment lid, assembly kit
A9075209
DATEC-MOBIL-BOX L, Vers. IIproduct added to your basket
black RAL 9005
252x121x50mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
73201090
Country of manufacture
USA
