A9174009

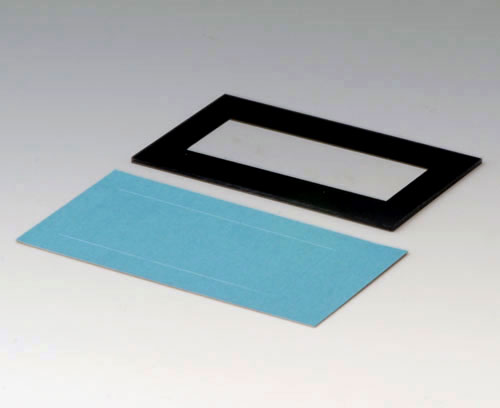

Display window M, border black

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply

1 display window, 1 adhesive foil

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for A9174009

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
A9074209 DATEC-MOBIL-BOX M, Vers. II

A9074209

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074209

DATEC-MOBIL-BOX M, Vers. II
product added to your basket

black RAL 9005
195x101x44mm
A9074229 DATEC-MOBIL-BOX M, Vers. II, high

A9074229

DATEC-MOBIL-BOX M, Vers. II, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074229

DATEC-MOBIL-BOX M, Vers. II, high
product added to your basket

black RAL 9005
195x101x59mm

Customising options for A9174009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
transparent
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9174009 and don't forget to request a quotation!
