B4126147

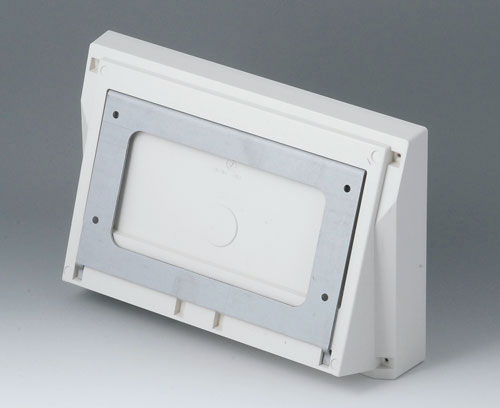

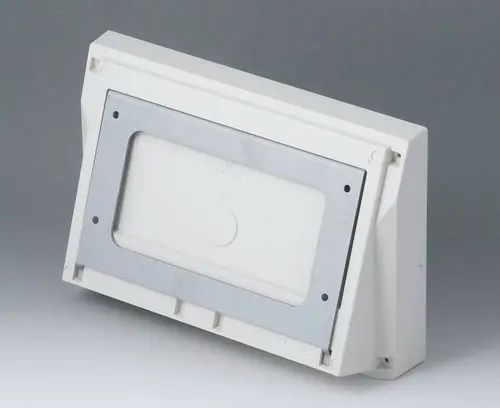

Wall suspension element SL

Wall suspension element SL for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply

1 wall suspension element, 2 screws

  • To be used for
  • View Customising Options
AltText

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4026117

DATEC-TERMINAL SL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
264x180x86mm
IP 54 opt.

Customising options for B4126147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
galvanized
Width
210 mm
Height
137 mm
Depth
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
175 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
