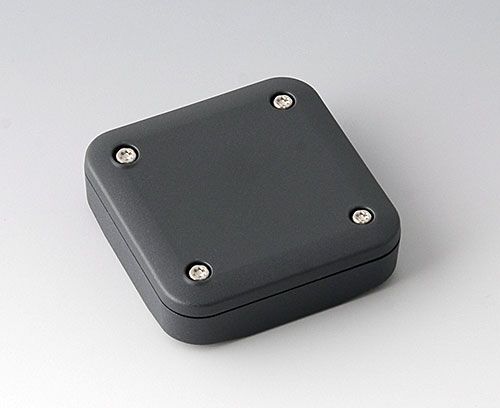

MINI-DATA-BOX S50, flat
2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Top part flat
SupplyTop and bottom parts, assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B1804118
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B1904101
Sealing S50/SF50
Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1904101
Sealing S50/SF50product added to your basket
Customising options for B1804118
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Colour
anthracite grey RAL 7016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
50 mm
Width
50 mm
Height
15 mm
PCB length, base
42 mm
PCB width, base
42 mm
PCB length, top
42 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 250 KB
- AutoCAD DWG-File 321 KB
- AutoCAD DXF-File 1,142 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 461 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028533.x_t 1,652 KB
- 00028533.step 3,755 KB
- 00028533.sat 5,523 KB
Weight/1 part
16 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
