Blob

Handheld enclosures modelled for the hand

Inspired by the touch sensation, the design of the BLOB family of plastic enclosures is entirely focused on the needs of the user.

  • high level of practical value thanks to a convincing touch sensation; the user’s hands intuitively grasp the enclosure in the correct way

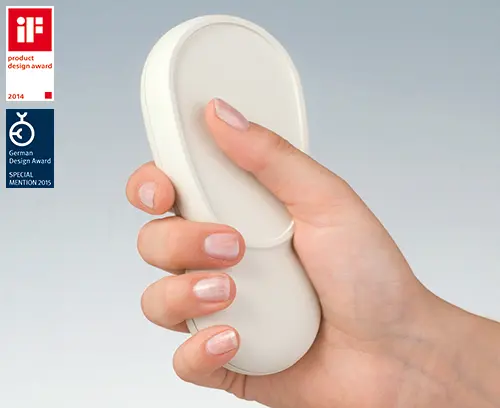

    * iF product design award 2014 | German Design Award 2015 *
  • the enclosures are designed to provide an natural grasp position which guides the operator’s hands to the controls
  • gentle and at the same time rugged
  • huge number of possible applications

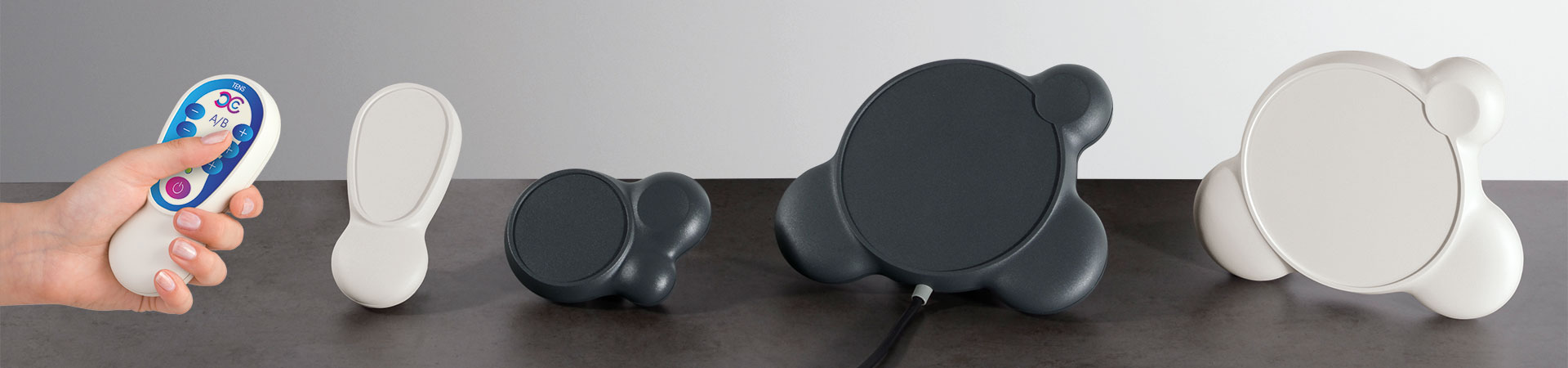

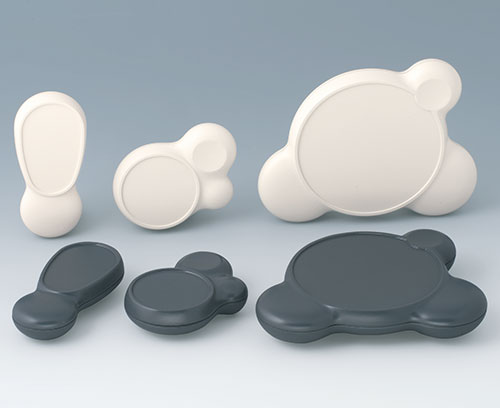

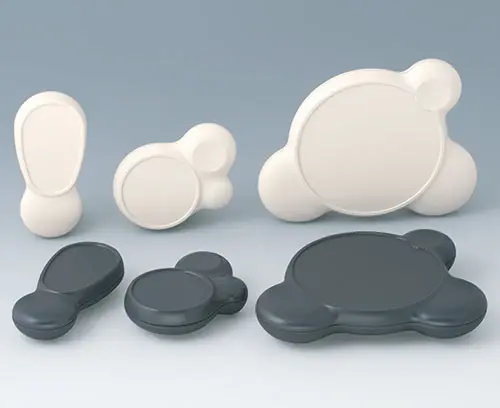

  • 3 types

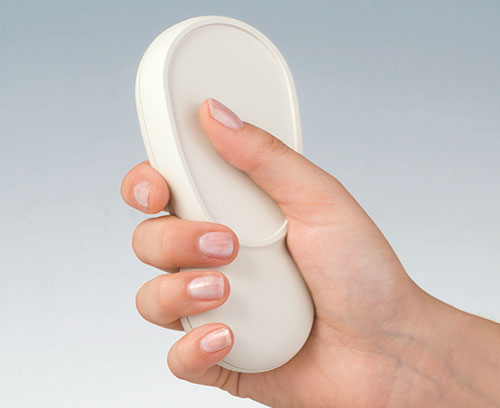

  • UNIT – for single handed operation with keypad area and grip

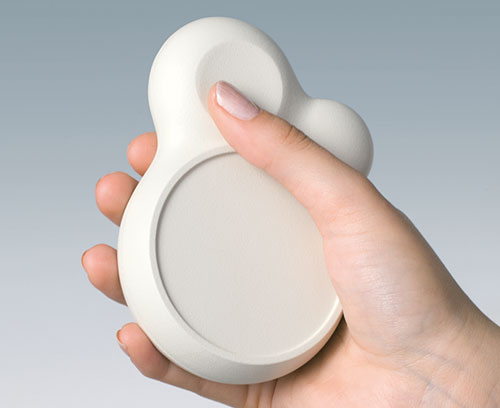

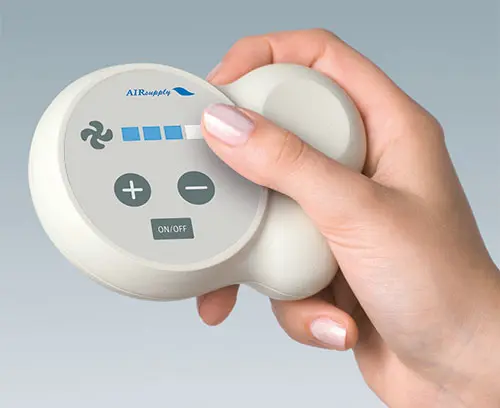

  • CONTROL – can be held with one hand and operated with the other. Separate keypad, activation and grip areas

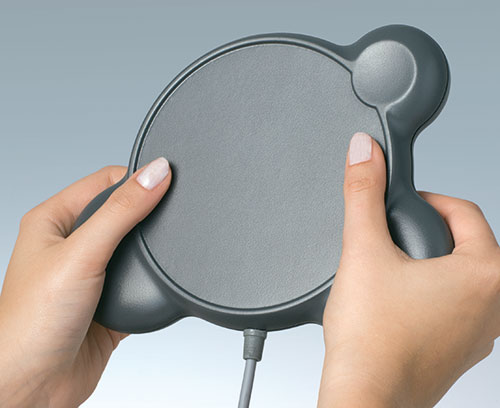

  • PANEL – for handheld or desktop use. With keypad, activation and two grip areas

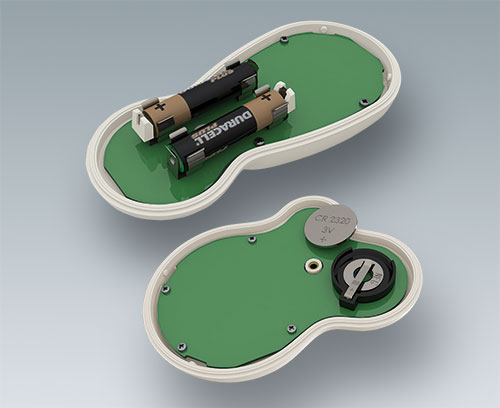

  • battery clips and ø 12-23 mm button cells can be accommodated

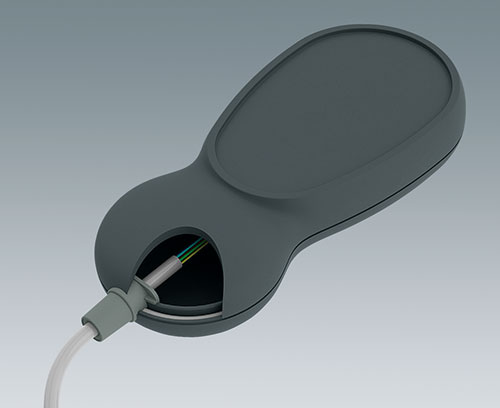

  • cable glands can be fitted at any position on the circumference of the enclosure

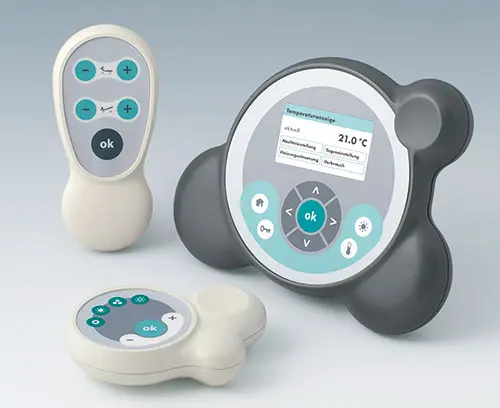

  • recessed operating area for protecting the membrane keypad or decorative foil/label
  • ABS (UL 94 HB), two colours
  • optional IP 54 sealing kit
  • internal screw pillars for PCBs

Designer Statement

"'Wow, this fits your hand perfectly!', was the first comment on this mobile product with universal design. The intelligent form of BLOB was created by optimising ergonomic requirements. Whether young or old, everyone should be able to use these handheld enclosures intuitively. They are also flexible enough to accommodate a wide variety of applications and needs of the user. Where does the name come from? From architecture: Blob stands for 'Binary Large OBject', a teardrop-shaped connection that can be formed in an unlimited number of ways."
Martin Nußberger, polyform Industrie Design

Generate PDF
  • Video
  • Application Examples

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

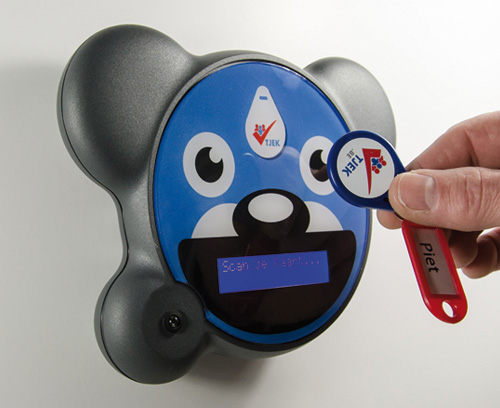

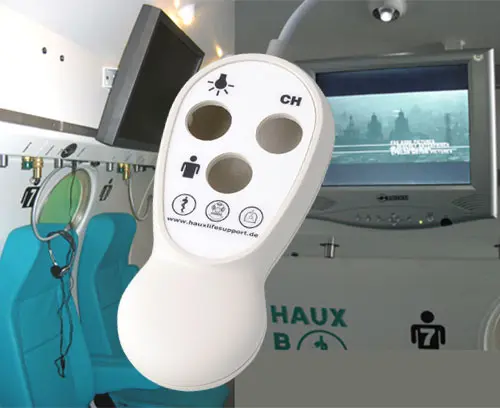

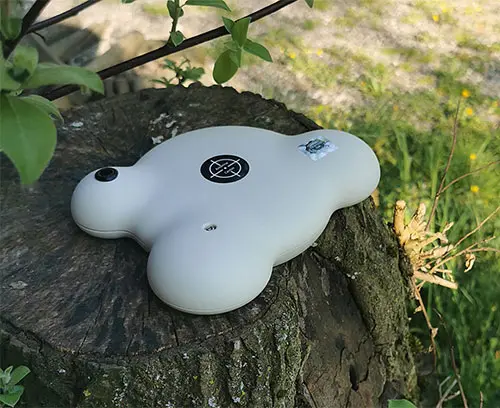

Application fields

Following the principles of “Universal Design”, BLOB supports applications that are flexible enough to meet the needs of a large number of people with different hand sizes and grasping volumes.

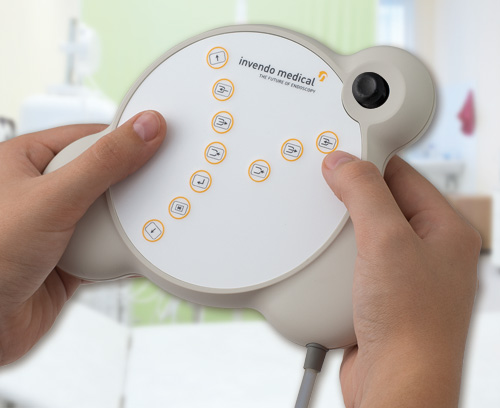

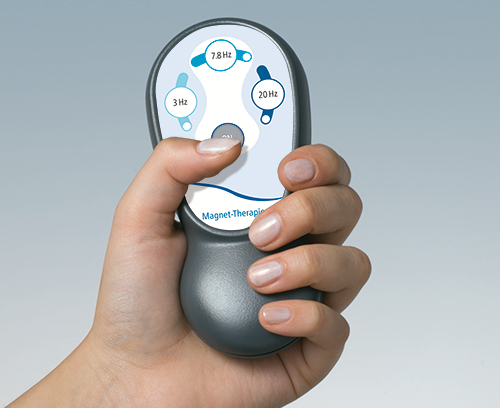

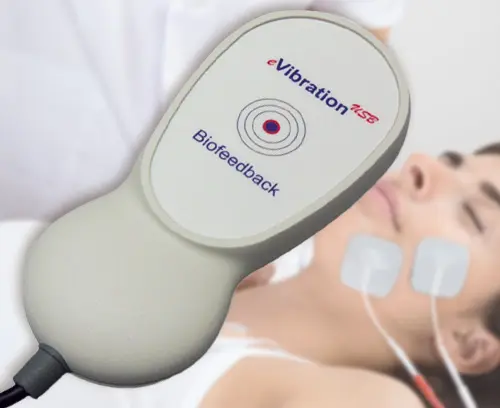

For many different kinds of user-oriented applications, wireless or with cable. As self-sufficient or complementary units, or in a network with other equipment. Diagnostics, therapy, laboratory, industry, office, household and leisure time.

  • Browse Full List
  • Accessories
  • View Customising Options
B2510107 BLOB UNIT

B2510107

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2510107

BLOB UNIT
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
130x60x30mm
IP 54 opt.
B2510108 BLOB UNIT

B2510108

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2510108

BLOB UNIT
product added to your basket
ABS (UL 94 HB)
lava
130x60x30mm
IP 54 opt.
B2512107 BLOB CONTROL

B2512107

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2512107

BLOB CONTROL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
114x76x31mm
IP 54 opt.
B2512108 BLOB CONTROL

B2512108

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2512108

BLOB CONTROL
product added to your basket
ABS (UL 94 HB)
lava
114x76x31mm
IP 54 opt.
B2514107 BLOB PANEL

B2514107

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2514107

BLOB PANEL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
200x165x36mm
IP 54 opt.
B2514108 BLOB PANEL

B2514108

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2514108

BLOB PANEL
product added to your basket
ABS (UL 94 HB)
lava
200x165x36mm
IP 54 opt.
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket

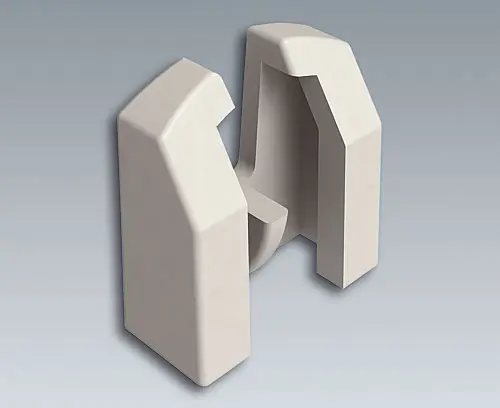

A9193033 Polarity reversal protection device, positive terminal AA

A9193033

Polarity reversal protection device, positive terminal AA For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193033

Polarity reversal protection device, positive terminal AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

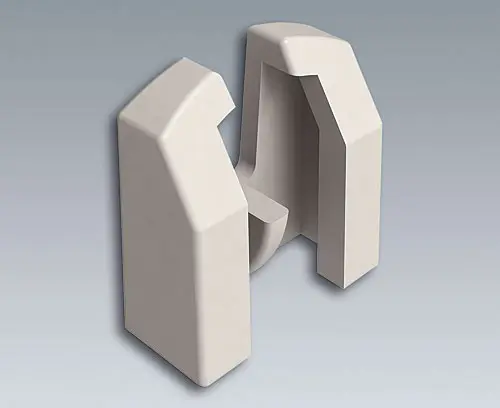

A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193034

Polarity reversal protection device, positive terminal AAA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

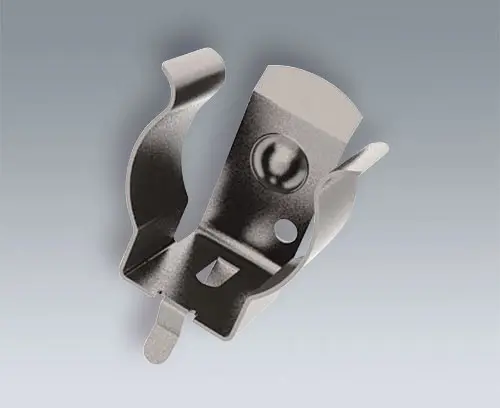

A9193035 Battery clip, AA

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193035

Battery clip, AA
product added to your basket
Steel
nickel-plated

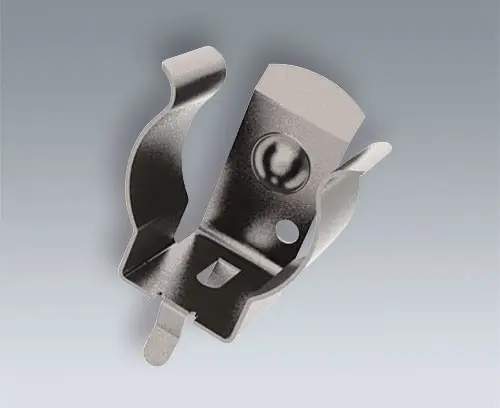

A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193036

Battery clip, AAA
product added to your basket
Steel
nickel-plated

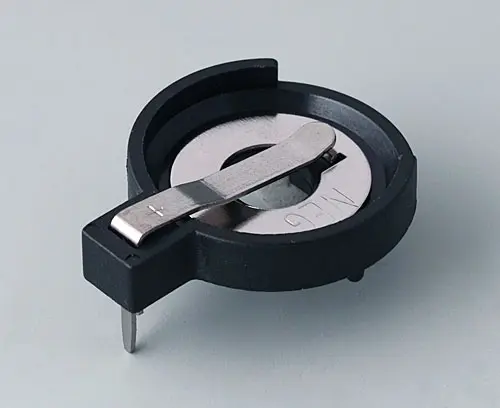

A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193037

Button cell holder, Ø 20 mm
product added to your basket

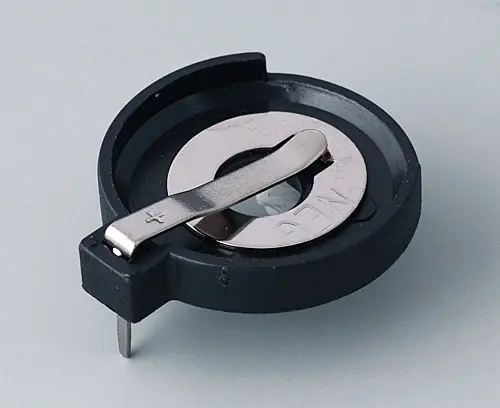

A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193038

Button cell holder, Ø 23 mm
product added to your basket
A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193039

Button cell holder, Ø 12 mm
product added to your basket

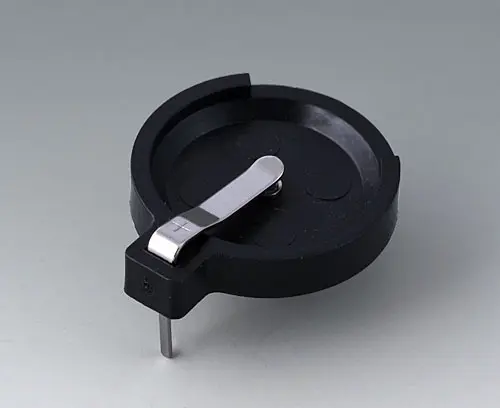

A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193040

Button cell holder, Ø 16 mm
product added to your basket

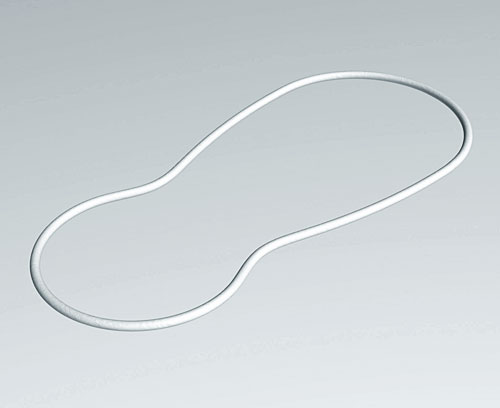

B2610001 Sealing Unit

B2610001

Sealing Unit Application: for increasing the protection class, of BLOB UNIT.

Supply 1 sealing

Close

B2610001

Sealing Unit
product added to your basket

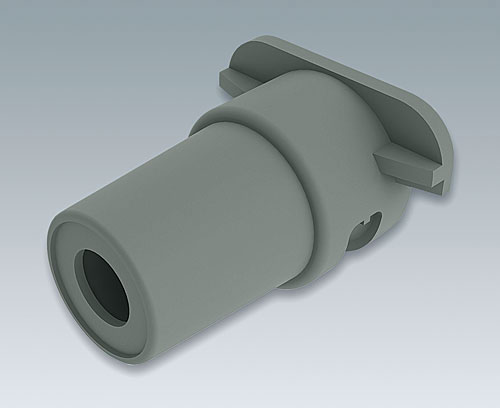

B2610101 Cable strain, 5.0 - 5.9

B2610101

Cable strain, 5.0 - 5.9 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 5.0 - 5.9 mm

Supply 1 cable bushing

Close

B2610101

Cable strain, 5.0 - 5.9
product added to your basket
TPE
volcano

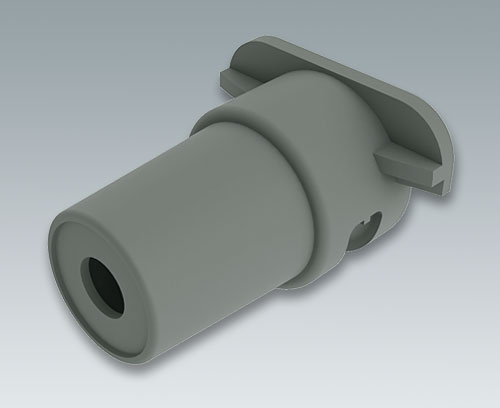

B2610111 Cable strain, 4.2 - 5.0

B2610111

Cable strain, 4.2 - 5.0 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 4.2 - 5.0 mm

Supply 1 cable bushing

Close

B2610111

Cable strain, 4.2 - 5.0
product added to your basket
TPE
volcano

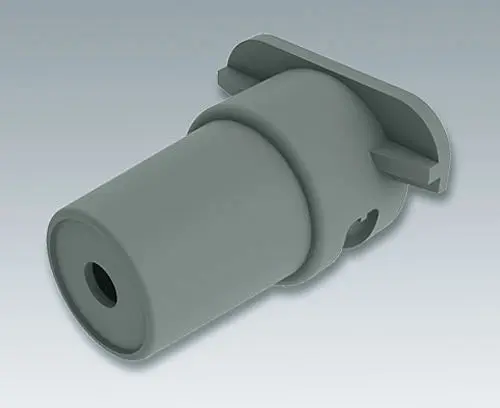

B2610121 Cable strain, 3.4 - 4.2

B2610121

Cable strain, 3.4 - 4.2 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 3.4 - 4.2 mm

Supply 1 cable bushing

Close

B2610121

Cable strain, 3.4 - 4.2
product added to your basket
TPE
volcano

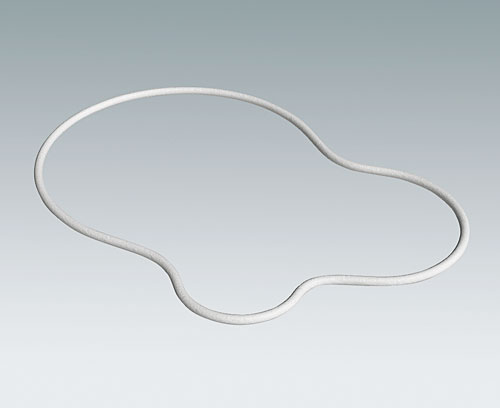

B2612001 Sealing Control

B2612001

Sealing Control

Application: for increasing the protection class, of BLOB CONTROL.

Supply 1 sealing

Close

B2612001

Sealing Control
product added to your basket

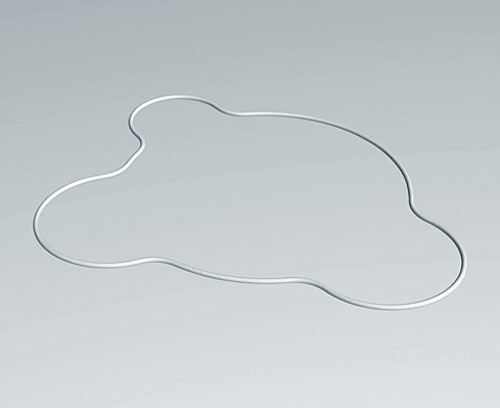

B2614001 Sealing Panel

B2614001

Sealing Panel Application: for increasing the protection class, of BLOB PANEL.

Supply 1 sealing

Close

B2614001

Sealing Panel
product added to your basket

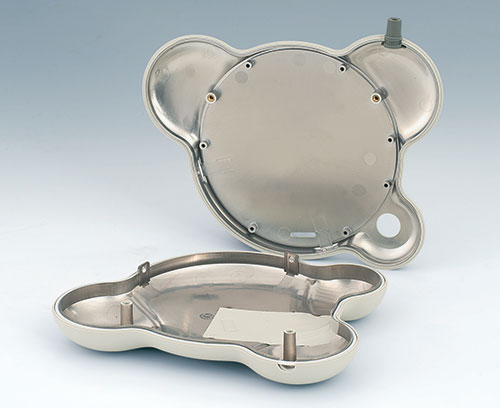

Customising options for Blob

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
