EURO CASE

Euro Case

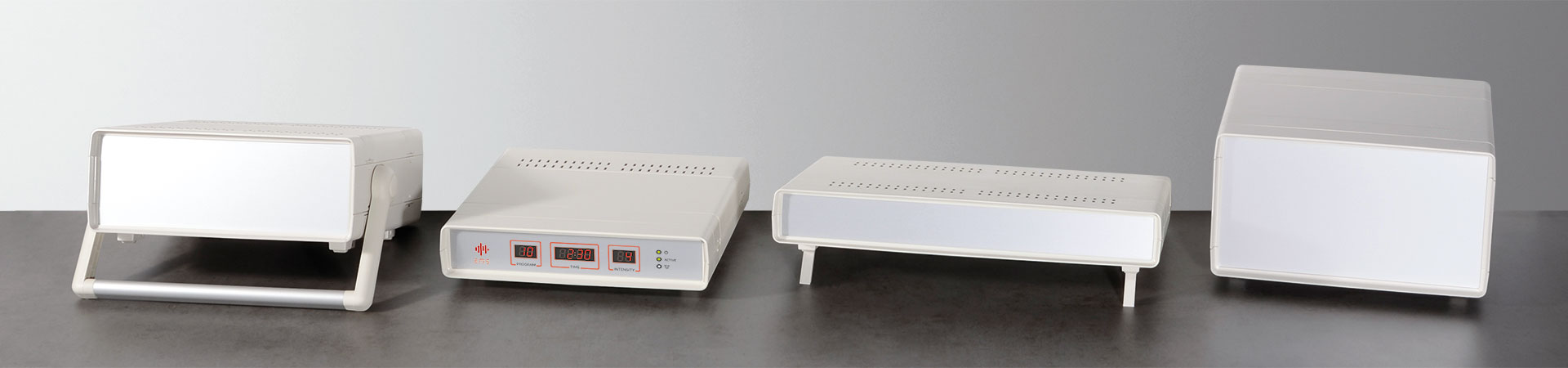

Large instrument enclosures

Our EURO CASE is smart, tough and very easy to assemble. The case shells, side and snap-in panels all have a strong clip together mechanism which does not require screws.

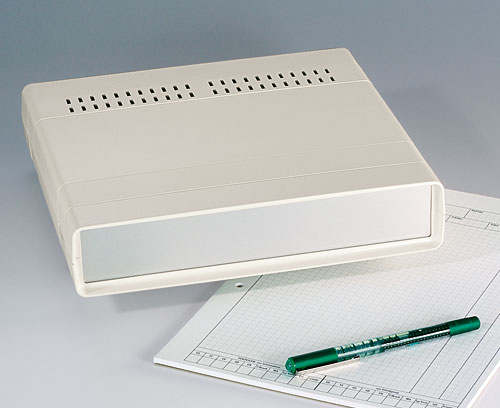

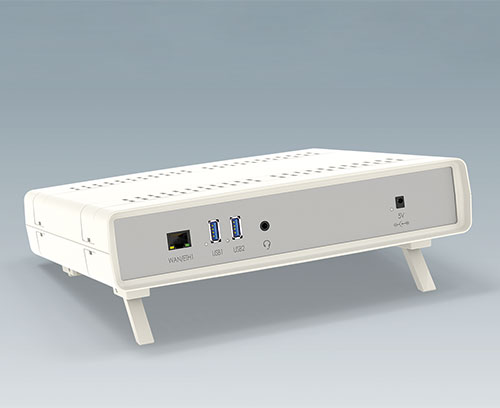

  • plastic enclosures for desktop or portable electronic instruments

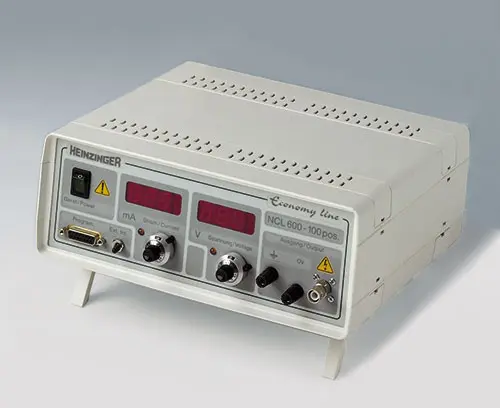

  • plenty of space for operating elements and interfaces

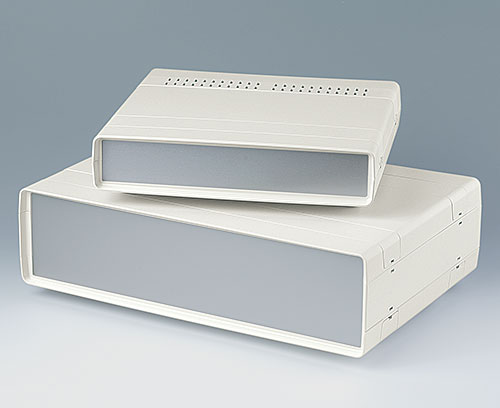

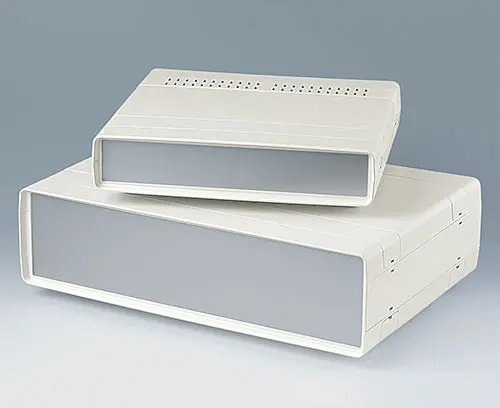

  • two standard widths: 42 TE & 63 TE
  • four heights: 1 HE, 2 HE, 3 HE, 6 HE; side panels in three sizes (0.5 HE, 1 HE and 2 HE)

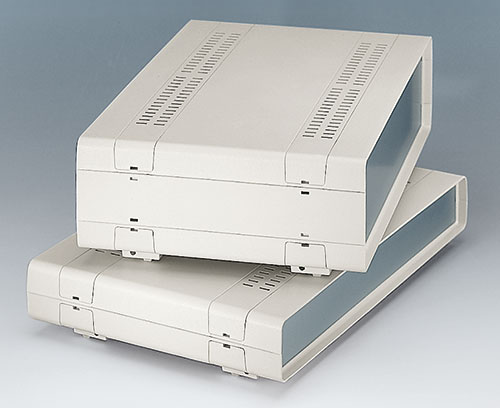

  • additional side panels can be configured to allow for larger case heights i.e. for several assemblies to be stacked together in one unit

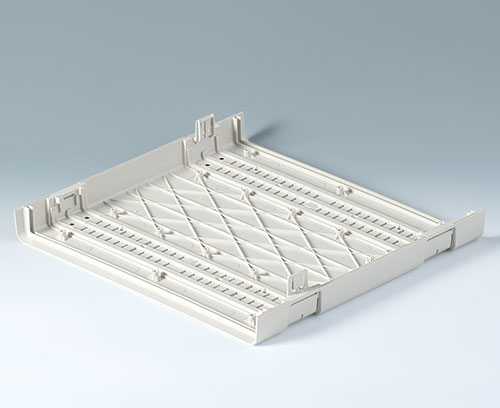

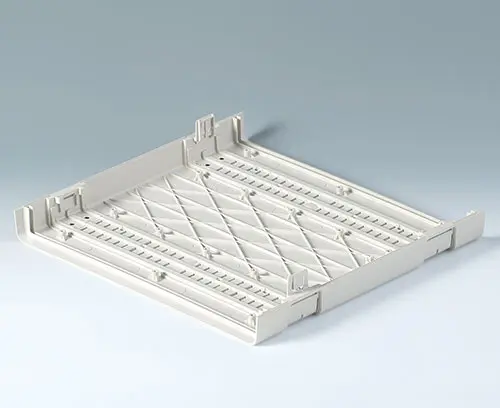

  • injection-moulded reinforcing ribs ensure that these conveniently light cases have a high degree of torsional resistance and rigidity

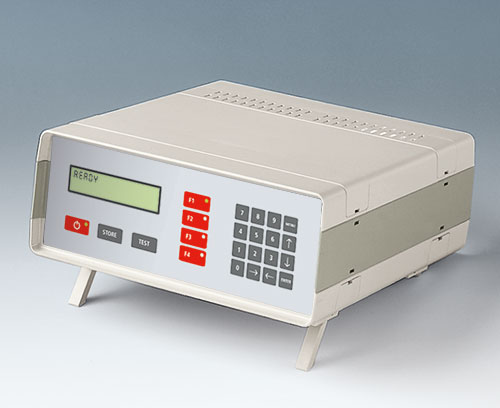

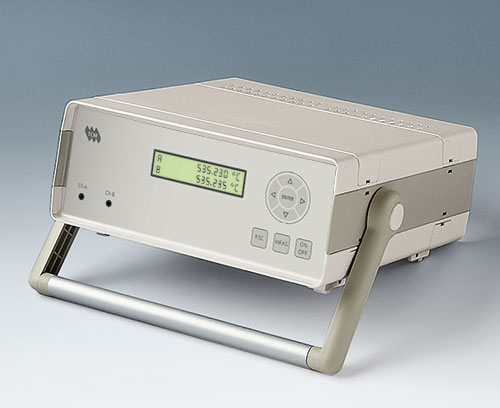

  • ergonomic operation when using the tilt feet, or the robust carry handle bar which is also designed for portable use.
  • problems in cooling can be addressed by the snap-in panels with integrated ventilation slots
  • robust clip-together assembly
  • minimum amount of assembly required thanks to the special OKW snap-lock mechanism
  • aluminium front panels ordered separately, simply slide-in
  • customize the EURO CASE to your own corporate design, e.g. by selecting the side panels and snap-in panels in your company’s colours
  • protection class < IP 40
  • internal screw pillars for PCBs etc.
  • four non-slip case feet included

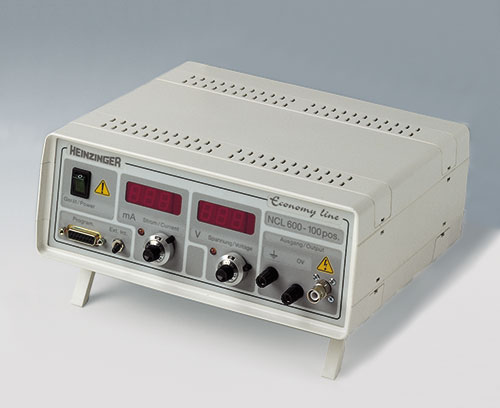

  • Application Examples

Application fields

  • Measuring and control technology
  • Peripheral devices
  • Laboratory equipment
  • Medical and wellness devices
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel
A0314270 Front / rear panel 42 TE 1 HE

A0314270

Front / rear panel 42 TE 1 HE Front/rear panel for case 42 TE 1 HE.

Supply 1 front panel

Close

A0314270

Front / rear panel 42 TE 1 HE
product added to your basket
Aluminium
matt anodised
250.8x46.3x2mm
A0316370 Front / rear panel 63 TE 1 HE

A0316370

Front / rear panel 63 TE 1 HE Front/rear panel for case 63 TE 1 HE.

Supply 1 front panel

Close

A0316370

Front / rear panel 63 TE 1 HE
product added to your basket
Aluminium
matt anodised
357.8x46.3x2mm
A0324270 Front / rear panel 42 TE 2 HE

A0324270

Front / rear panel 42 TE 2 HE Front/rear panel for case 42 TE 2 HE.

Supply 1 front panel

Close

A0324270

Front / rear panel 42 TE 2 HE
product added to your basket
Aluminium
matt anodised
250.8x90.7x2mm
A0326370 Front / rear panel 63 TE 2 HE

A0326370

Front / rear panel 63 TE 2 HE Front/rear panel for case 63 TE 2 HE.

Supply 1 front panel

Close

A0326370

Front / rear panel 63 TE 2 HE
product added to your basket
Aluminium
matt anodised
357.8x90.7x2mm
A0334270 Front / rear panel 42 TE 3 HE

A0334270

Front / rear panel 42 TE 3 HE Front/rear panel for case 42 TE 3 HE.

Supply 1 front panel

Close

A0334270

Front / rear panel 42 TE 3 HE
product added to your basket
Aluminium
matt anodised
250.8x135.2x2mm
A0336370 Front / rear panel 63 TE 3 HE

A0336370

Front / rear panel 63 TE 3 HE Front/rear panel for case 63 TE 3 HE.

Supply 1 front panel

Close

A0336370

Front / rear panel 63 TE 3 HE
product added to your basket
Aluminium
matt anodised
357.8x135.2x2mm
A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

Close

A0350007

Tilt foot
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0354270 Front / rear panel 42 TE 1.5 HE

A0354270

Front / rear panel 42 TE 1.5 HE Front/rear panel for case 42 TE 1.5 HE.

Supply 1 front panel

Close

A0354270

Front / rear panel 42 TE 1.5 HE
product added to your basket
Aluminium
matt anodised
250.8x68.5x2mm
A0366370 Front / rear panel 63 TE 6 HE

A0366370

Front / rear panel 63 TE 6 HE Front/rear panel for case 63 TE 6 HE.

Supply 1 front panel

Close

A0366370

Front / rear panel 63 TE 6 HE
product added to your basket
Aluminium
matt anodised
268.6x357.8x2mm

Customising options for Euro Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
