RAILTEC B

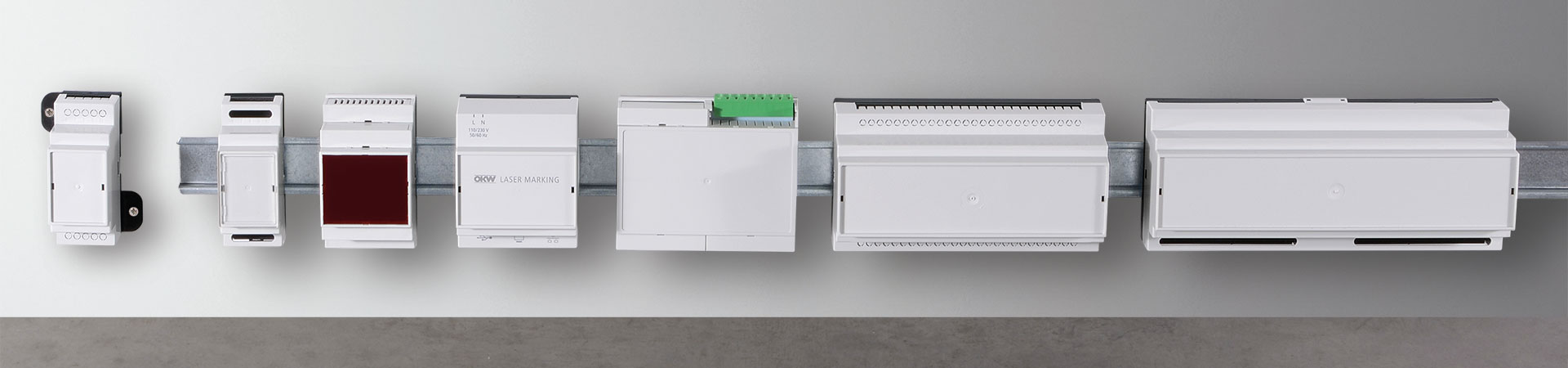

Railtec B

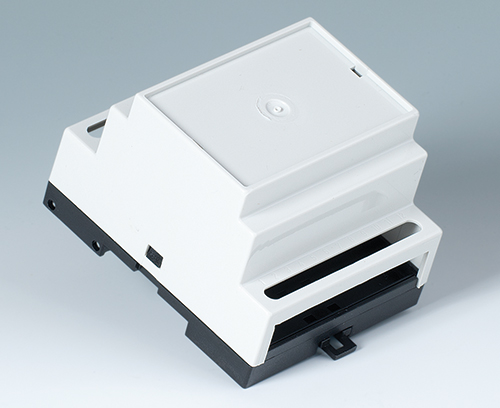

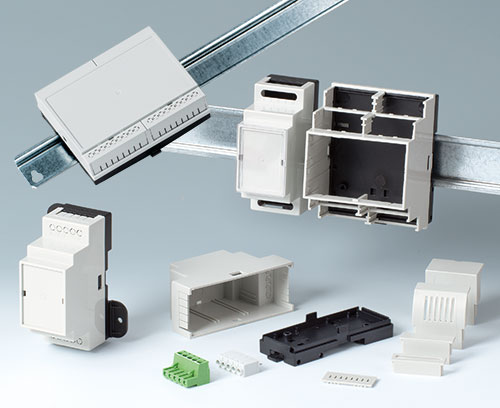

Versatile standard DIN rail enclosures

Our RAILTEC B series of plastic enclosures provides fast and simple mounting on to standard DIN EN 60715 TH35 rails.

  • six sizes (2 to 12 modules wide) according to DIN 43880, unit 1;

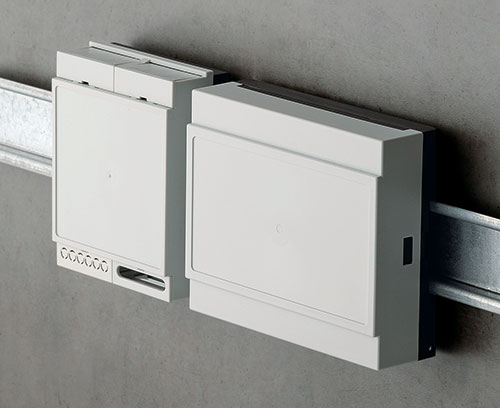

    four sizes (2, 4, 6 & 9 modules wide) with low profile - NEW: 2 versions;

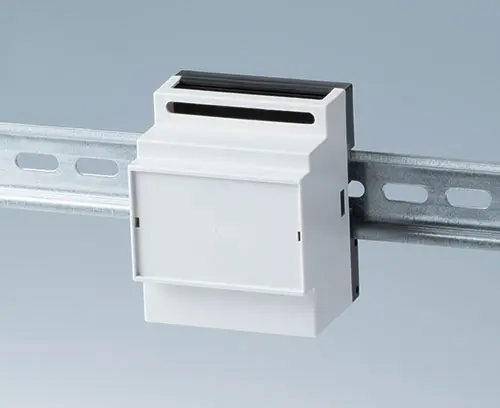

    four sizes (2, 4, 6 & 9 modules wide) with flat/high connection level
  • fully insulated and protected according to VBG 4 and IEC 529/DIN VDE 0470-1
  • flame-resistant material (UL 94 V-0)

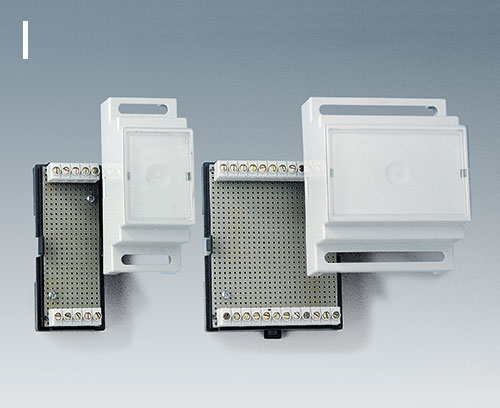

  • version I and XI: for PCB terminal blocks 5.0/5.08 mm pitch
  • version II and XII: for plug headers 5.0/5.08 mm pitch
  • version III and XIII: closed case for front connectors, D-SUB connectors, etc.

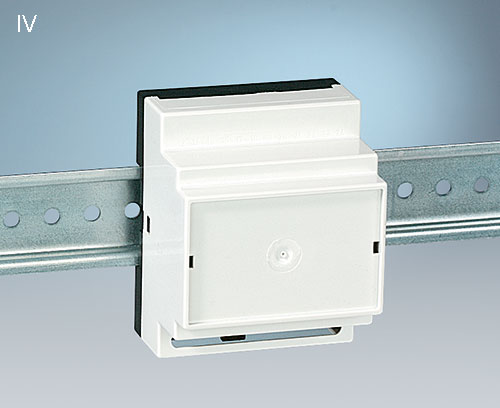

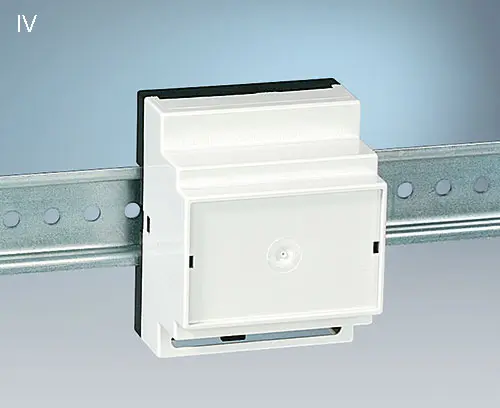

  • version IV: for PCB terminal blocks 5.0/5.08 mm pitch (1 row)

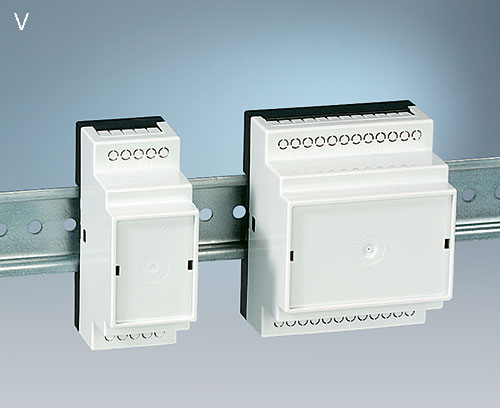

  • version V: with knockout perforations 5.0 mm pitch

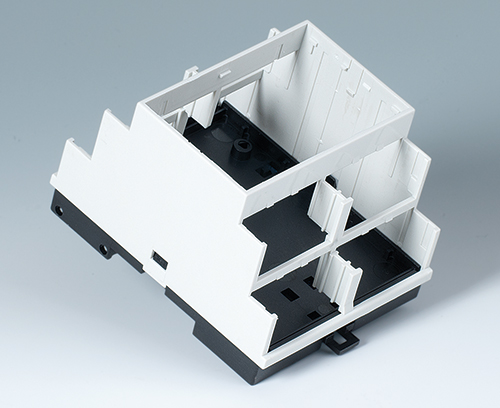

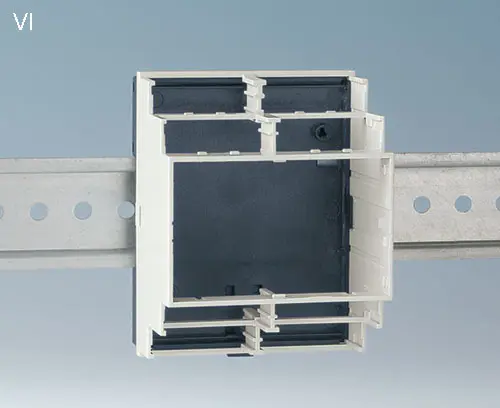

  • version VI: open case for fitting different combinations of terminal guards and partition plate; optionally 1 or 2 connection levels

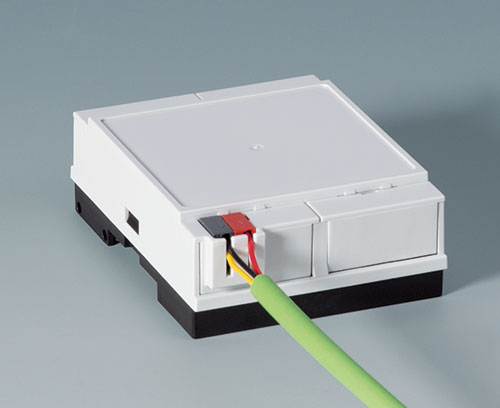

  • KNX cover to fit 2 and 4 modules of series VI and flat top parts
  • suitable for DIN rails EN 60715 TH35 or direct wall mounting
  • with/without ventilation slots for good heat dissipation
  • flexible assembly: PCB positioning in all 3 directions; base part with fixing pillars, top parts with guide ridges
  • DIN rail clip pre-assembled in base part
  • transparent lid (acc.) protects display and operation elements
  • protection class < IP 40

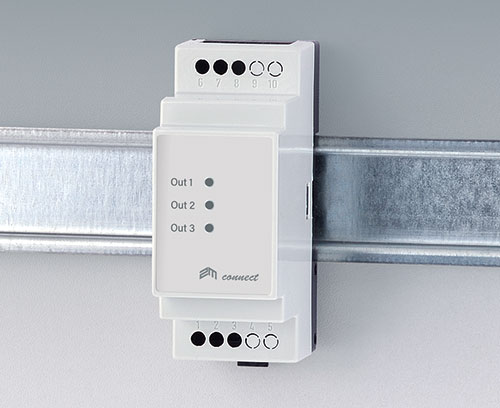

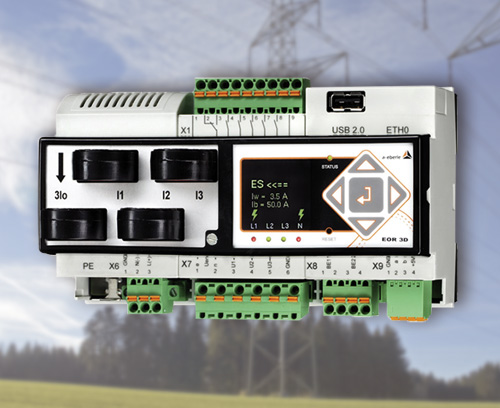

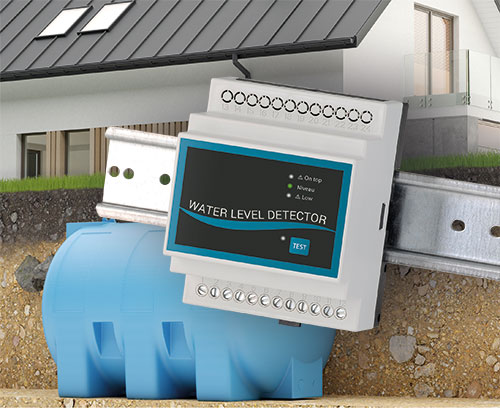

  • Application Examples

Application fields

  • Universal use as installation case
  • Corresponding to the regulations of the machine-building and motorcar industry
  • Smart Factory / Industry 4.0

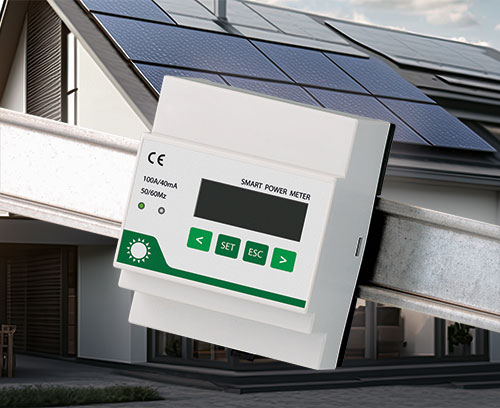

  • Technical equipment for building automation and SMART-HOME
  • Especially for the control equipment for example lighting systems
  • Select Versions
  • Accessories

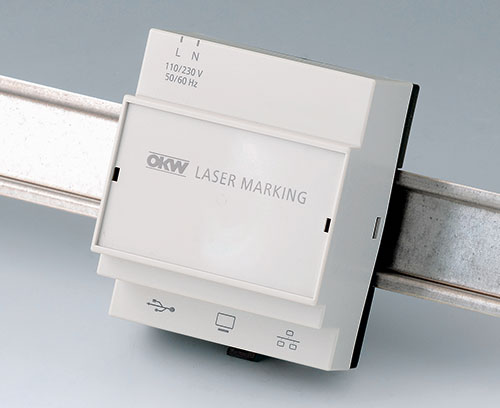

  • View Customising Options

Select which version/size you want below or browse full product list

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket

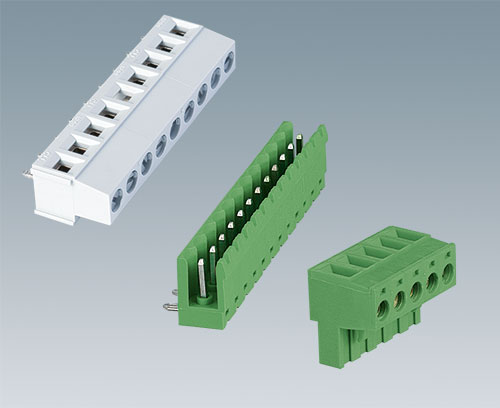

B6600111 Terminal block, block 5.0

B6600111

Terminal block, block 5.0 PCB terminal block, 5.0. 36-pin.

Supply 1 piece

Close

B6600111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)
light grey

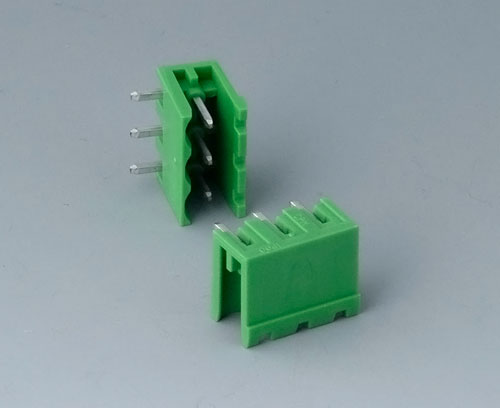

B6600222 Plug header, block 5.08

B6600222

Plug header, block 5.08 Male terminal block, 5.08. 3-pin.

Supply 1 piece

Close

B6600222

Plug header, block 5.08
product added to your basket
PA 68 (UL 94 V-0)

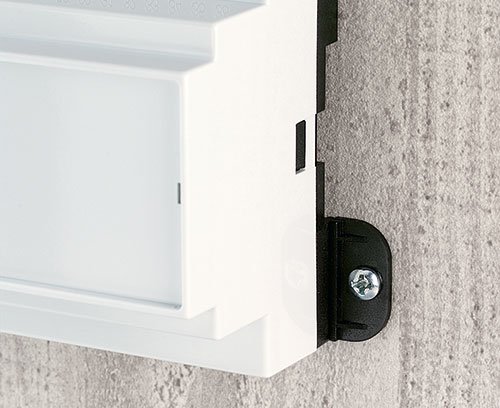

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Close

B6600334

Wall suspension elements
product added to your basket
PPO (UL 94 V-0)
black
B6601100 Lid, 2 modules

B6601100

Lid, 2 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6601100

Lid, 2 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6601111 Terminal block, block 5.0

B6601111

Terminal block, block 5.0 PCB terminal block, 5.0. 5-pin.

Supply 1 piece

Close

B6601111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)

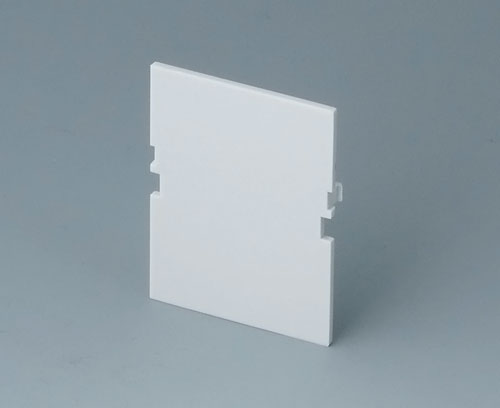

B6601180 Front panel, 2 modules, Vers. VI

B6601180

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601180

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
32x42mm
B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Close

B6601222

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Close

B6601223

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6601480 Front panel, 2 modules, Vers. VI

B6601480

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601480

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
32x42mm
B6601580 Front panel, 2 modules, Vers. VI

B6601580

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601580

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
32x42mm
B6602100 Lid, 3 modules

B6602100

Lid, 3 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6602100

Lid, 3 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6602180 Front panel, 3 modules, Vers. VI

B6602180

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602180

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
49x42mm
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Close

B6602222

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Close

B6602223

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)

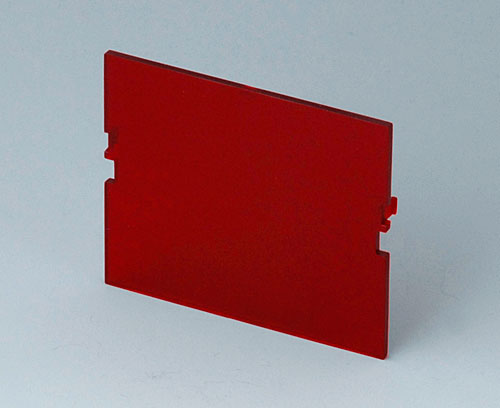

B6602480 Front panel, 3 modules, Vers. VI

B6602480

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602480

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
49x42mm

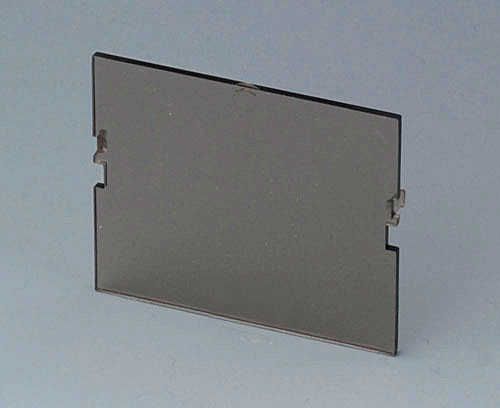

B6602580 Front panel, 3 modules, Vers. VI

B6602580

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602580

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
42x49mm
B6603100 Lid, 4 modules

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6603100

Lid, 4 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6603111 Terminal block, block 5.0

B6603111

Terminal block, block 5.0 PCB terminal block, 5.0. 12-pin.

Supply 1 piece

Close

B6603111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)

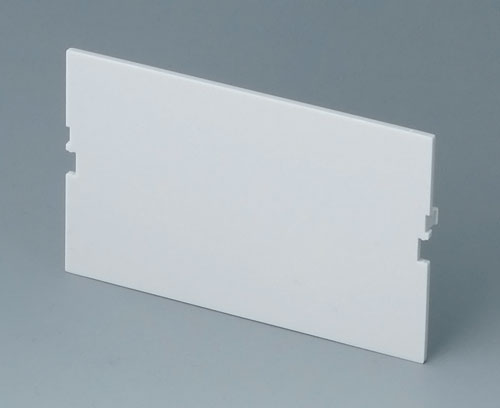

B6603180 Front panel, 4 modules, Vers. VI

B6603180

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603180

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
67x42mm

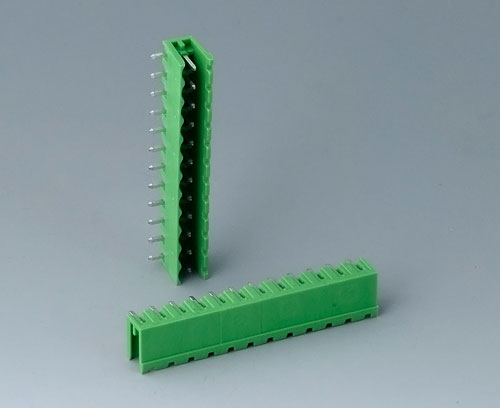

B6603222 Plug header, block 5.08

B6603222

Plug header, block 5.08 Male terminal block, 5.08. 12-pin.

Supply 1 piece

Close

B6603222

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6603223 Plug header, block 5.08

B6603223

Plug header, block 5.08 Female terminal block, 5.08. 12-pin.

Supply 1 piece

Close

B6603223

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6603480 Front panel, 4 modules, Vers. VI

B6603480

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603480

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
67x42mm

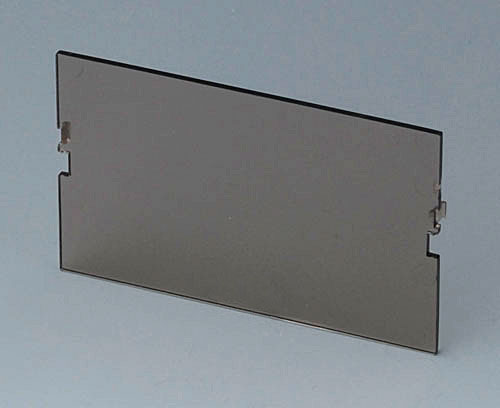

B6603580 Front panel, 4 modules, Vers. VI

B6603580

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603580

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
67x42mm
B6604100 Lid, 6 modules

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6604100

Lid, 6 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6604111 Terminal block, block 5.0

B6604111

Terminal block, block 5.0 PCB terminal block, 5.0. 18-pin.

Supply 1 piece

Close

B6604111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)

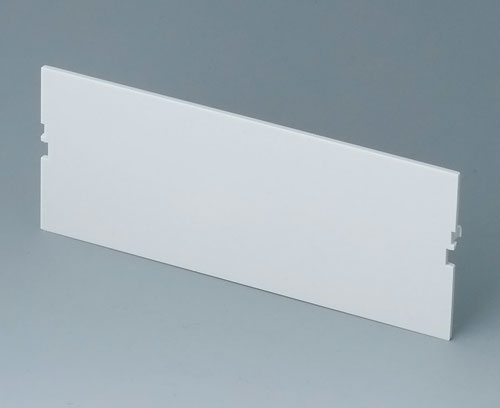

B6604180 Front panel, 6 modules, Vers. VI

B6604180

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604180

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
102x42mm
B6604222 Plug header, block 5.08

B6604222

Plug header, block 5.08 Male terminal block, 5.08. 18-pin.

Supply 1 piece

Close

B6604222

Plug header, block 5.08
product added to your basket
PA 68 (UL 94 V-0)
B6604223 Plug header, block 5.08

B6604223

Plug header, block 5.08 Female terminal block, 5.08. 18-pin.

Supply 1 piece

Close

B6604223

Plug header, block 5.08
product added to your basket
PA 68 (UL 94 V-0)
B6604480 Front panel, 6 modules, Vers. VI

B6604480

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604480

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
102x42mm

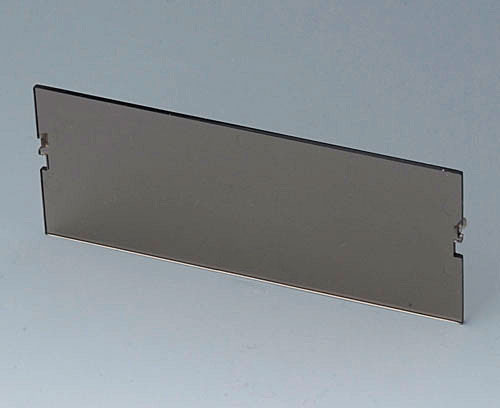

B6604580 Front panel, 6 modules, Vers. VI

B6604580

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604580

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
102x42mm
B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6605100

Lid, 9 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6605111 Terminal block, block 5.0

B6605111

Terminal block, block 5.0 PCB terminal block, 5.0. 13-pin.

Supply 1 piece

Close

B6605111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)

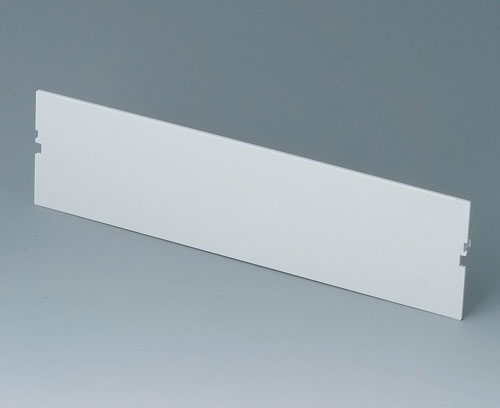

B6605180 Front panel, 9 modules, Vers. VI

B6605180

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605180

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
155x42mm

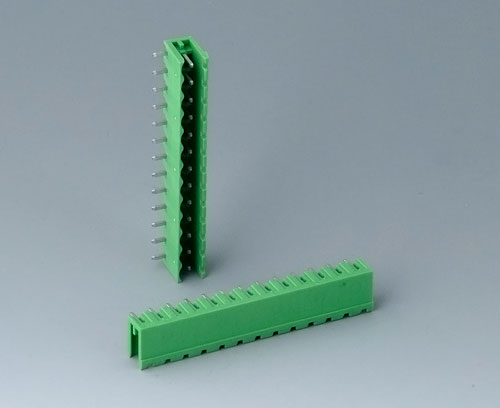

B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

Close

B6605222

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6605223 Plug header, block 5.08

B6605223

Plug header, block 5.08 Female terminal block, 5.08. 13-pin.

Supply 1 piece

Close

B6605223

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)

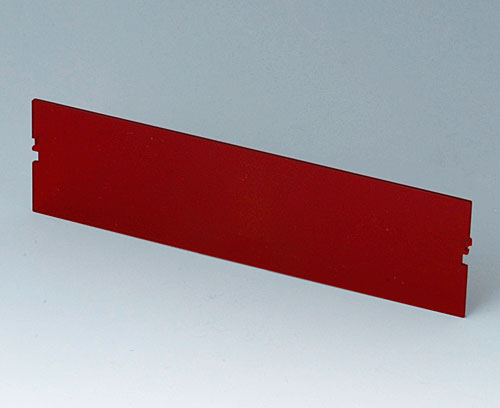

B6605480 Front panel, 9 modules, Vers. VI

B6605480

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605480

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
155x42mm

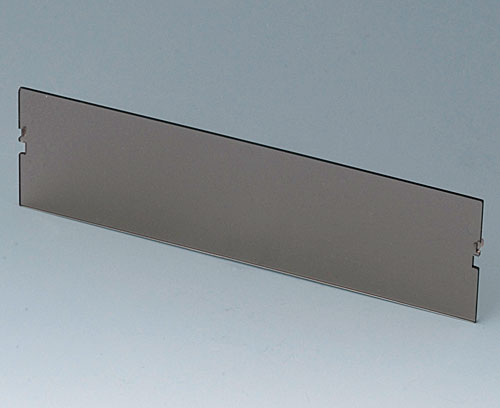

B6605580 Front panel, 9 modules, Vers. VI

B6605580

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605580

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
155x42mm
B6606100 Lid, 12 modules

B6606100

Lid, 12 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6606100

Lid, 12 modules
product added to your basket
PC (UL 94 V-0)
transparent
B6606111 Terminal block, block 5.0

B6606111

Terminal block, block 5.0 PCB terminal block, 5.0. 16-pin.

Supply 1 piece

Close

B6606111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)
B6606180 Front panel, 12 modules, Vers. VI

B6606180

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606180

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light grey
206x42mm
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Close

B6606222

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Close

B6606223

Plug header, block 5.08
product added to your basket
PA 6 (UL 94 V-0)
B6606480 Front panel, 12 modules, Vers. VI

B6606480

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606480

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
206x42mm
B6606580 Front panel, 12 modules, Vers. VI

B6606580

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606580

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
206x42mm
B6607111 Terminal block, block 5.0

B6607111

Terminal block, block 5.0 PCB terminal block, 5.0. 6-pin.

Supply 1 piece

Close

B6607111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)

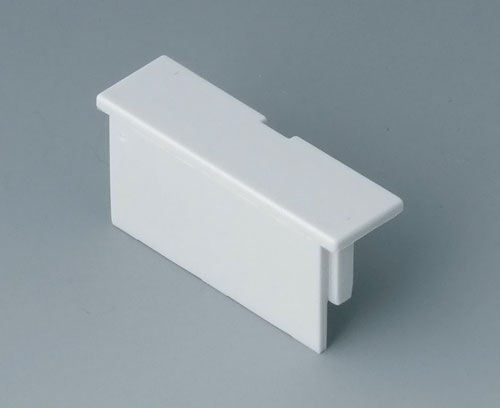

B6607140 Terminal guards, flat

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6607140

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey

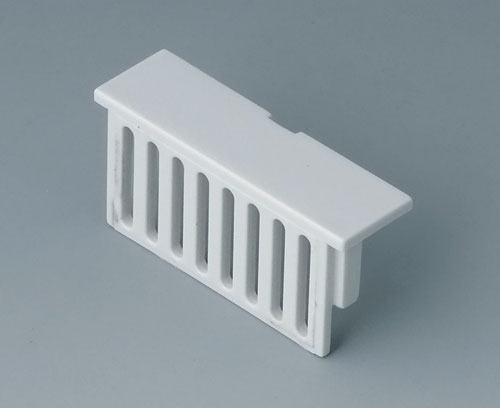

B6607141 Terminal guards, flat

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6607141

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey

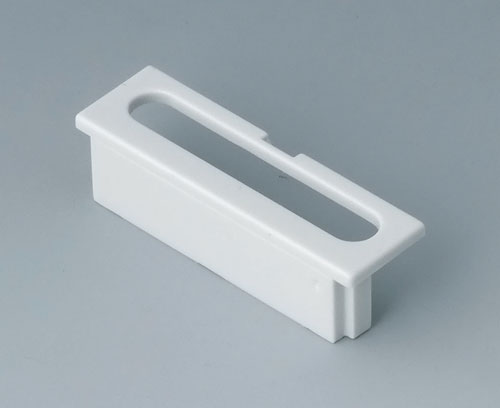

B6607142 Terminal guards, flat

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 6-poles

Supply 1 piece

Close

B6607142

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey
B6607143 Terminal guards, flat

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

Close

B6607143

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey
B6607145 KNX Cover, flat

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

Close

B6607145

KNX Cover, flat
product added to your basket
PC (UL 94 V-0)
light grey

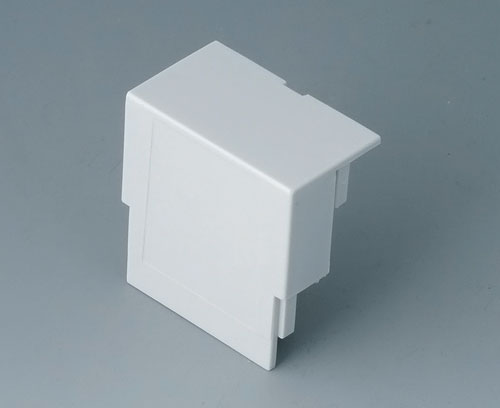

B6607160 Terminal guards, high

B6607160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6607160

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey
B6607161 Terminal guards, high

B6607161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6607161

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey

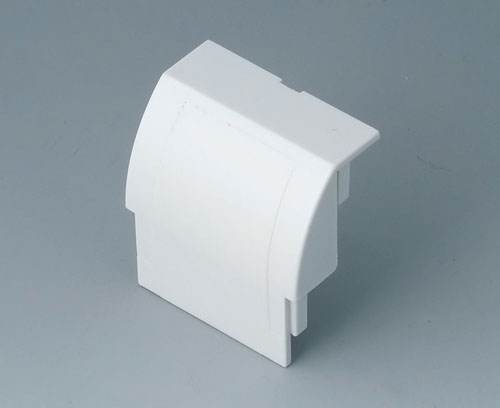

B6607162 Terminal guards, high

B6607162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Close

B6607162

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey
B6607163 Terminal guards, high

B6607163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Close

B6607163

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey

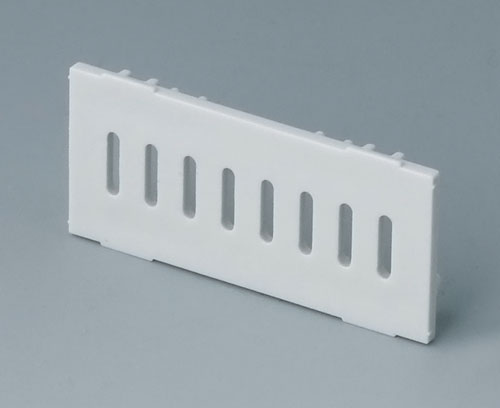

B6607191 Partition plate

B6607191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Close

B6607191

Partition plate
product added to your basket
PC (UL 94 V-0)
light grey
B6608111 Terminal block, block 5.0

B6608111

Terminal block, block 5.0 PCB terminal block, 5.0. 9-pin.

Supply 1 piece

Close

B6608111

Terminal block, block 5.0
product added to your basket
PA 68 (UL 94 V-0)
B6608140 Terminal guards, flat

B6608140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6608140

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey

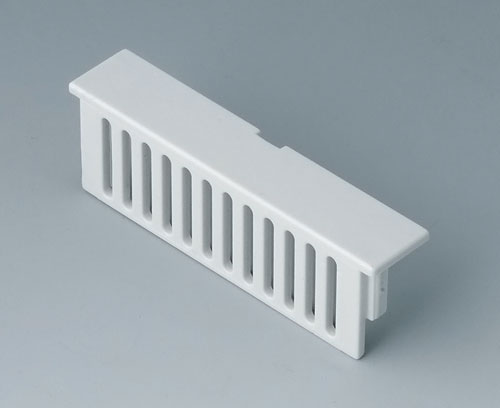

B6608141 Terminal guards, flat

B6608141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6608141

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey

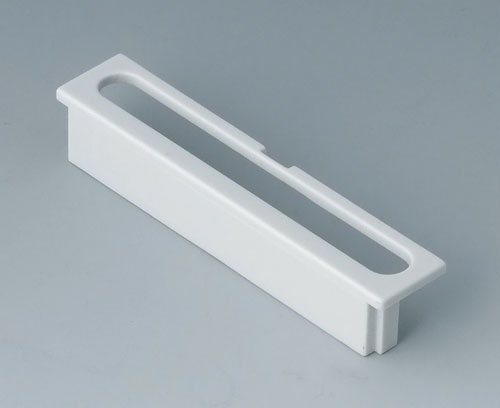

B6608142 Terminal guards, flat

B6608142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 9-poles

Supply 1 piece

Close

B6608142

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey
B6608143 Terminal guards, flat

B6608143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

Close

B6608143

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light grey

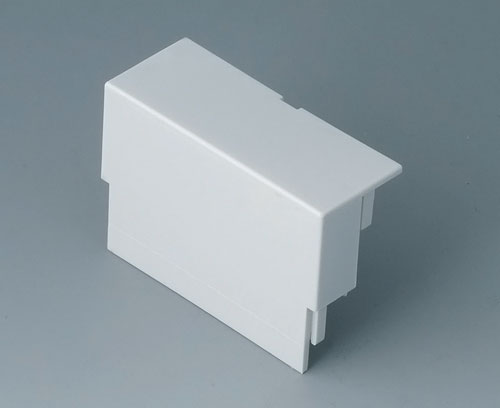

B6608160 Terminal guards, high

B6608160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6608160

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey
B6608161 Terminal guards, high

B6608161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6608161

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey
B6608162 Terminal guards, high

B6608162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Close

B6608162

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey

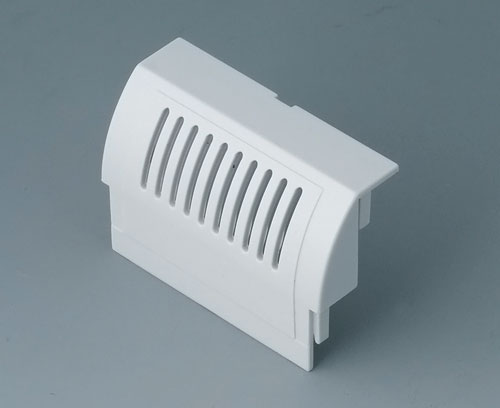

B6608163 Terminal guards, high

B6608163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Close

B6608163

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light grey
B6608191 Partition plate

B6608191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Close

B6608191

Partition plate
product added to your basket
PC (UL 94 V-0)
light grey

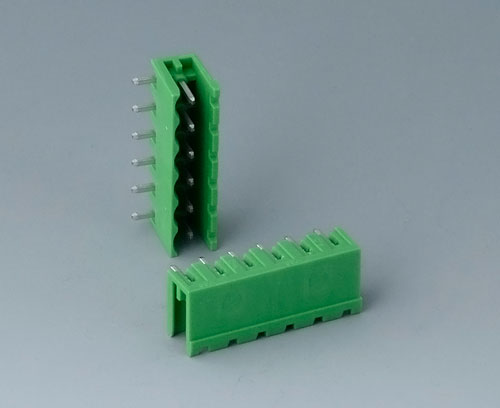

B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

Close

B6608222

Plug header, block 5.08
product added to your basket
PA 68 (UL 94 V-0)
B6608223 Plug header, block 5.08

B6608223

Plug header, block 5.08 Female terminal block, 5.08. 6-pin.

Supply 1 piece

Close

B6608223

Plug header, block 5.08
product added to your basket
PA 68 (UL 94 V-0)

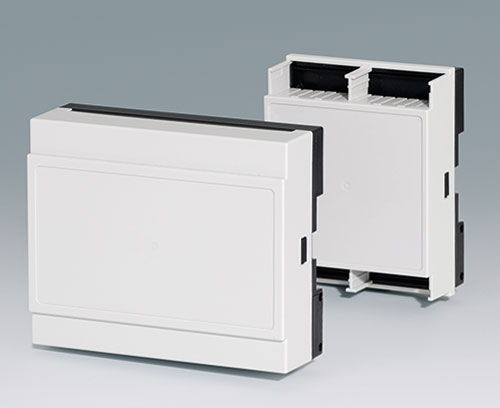

Customising options for Railtec B

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
