Accessories for enclosures
Soft-Case

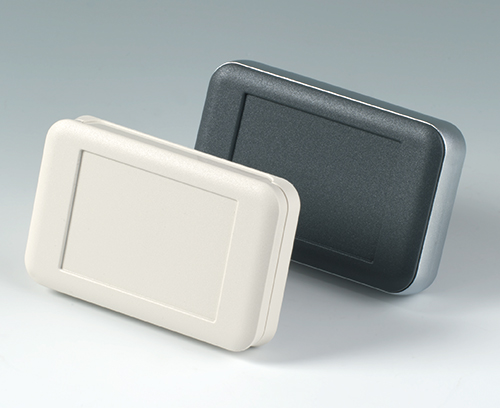

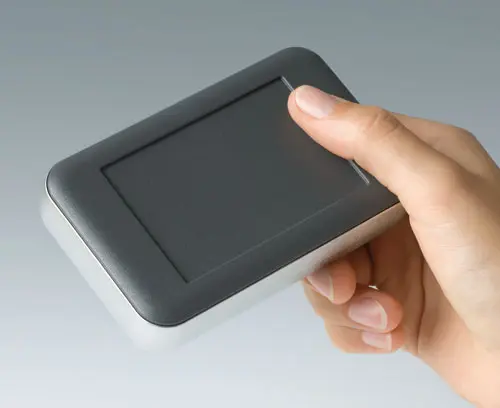

Wide-format handheld enclosures

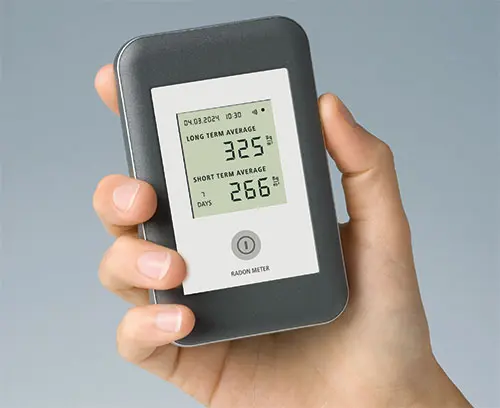

SOFT-CASE plastic enclosures convince design engineers, because they correspond with today’s design and technology needs.
- handy design with soft contours for a pleasant touch sensation
- unique “wide-format” offers a generous interface area as well as sufficient room for larger displays, while also ensuring user comfort

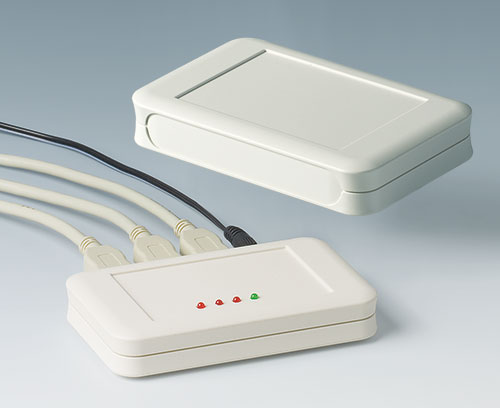

- raised connector mounting panel on the wide edge to accommodate more connections

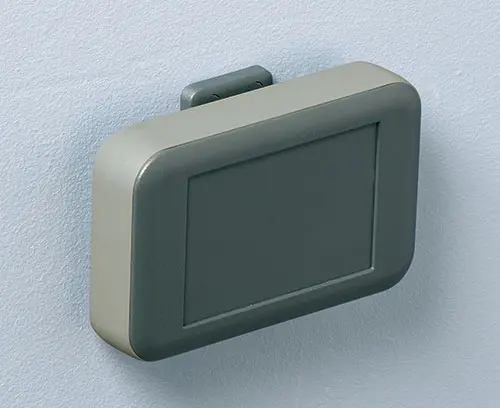

- universal use for handheld, desktop and wall mount applications

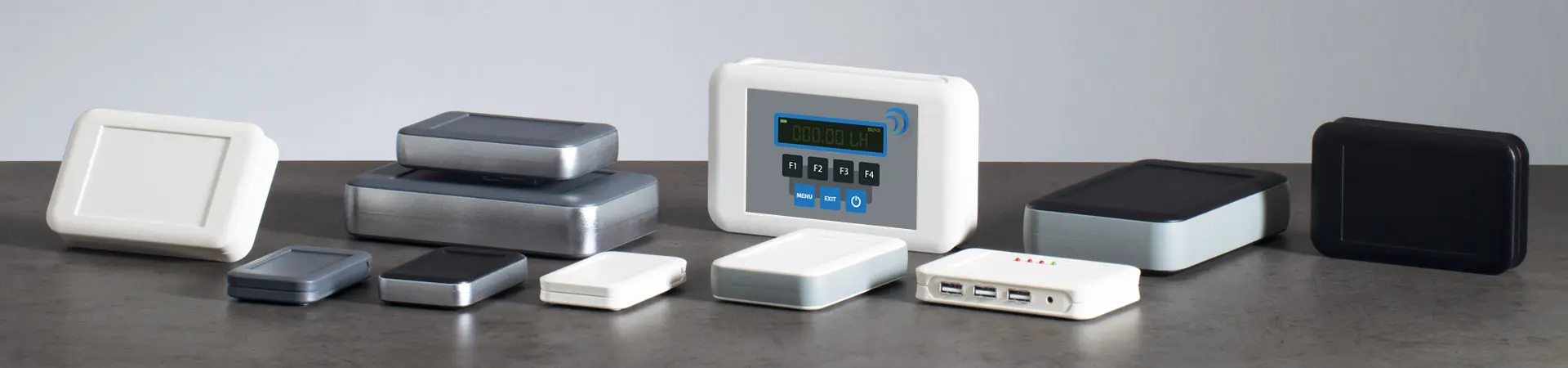

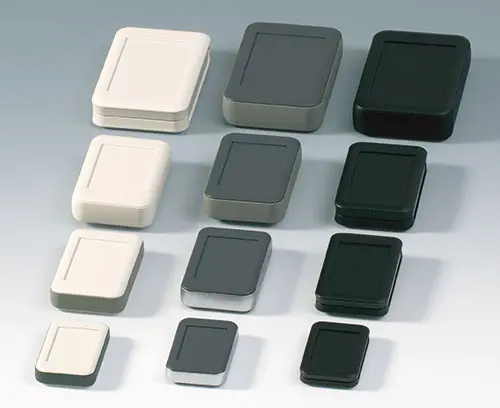

- four sizes

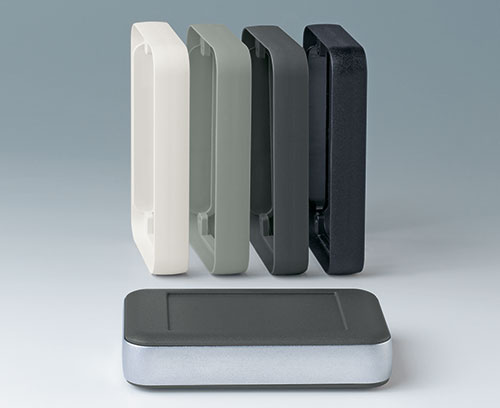

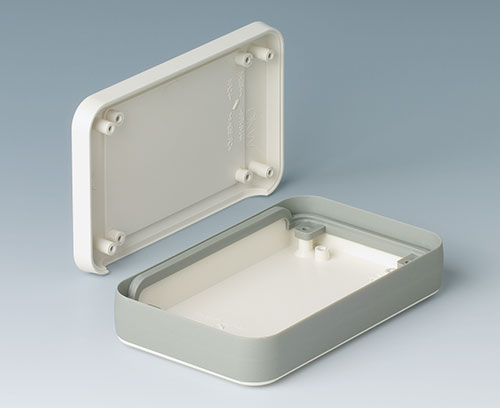

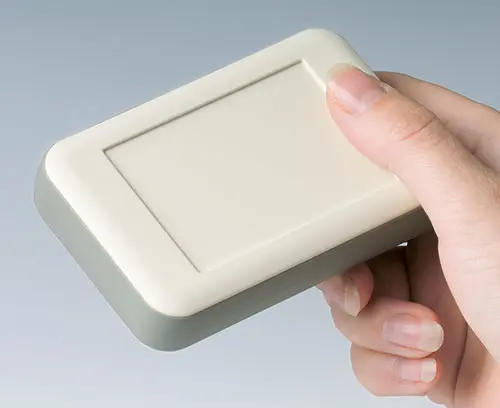

- optional intermediate rings provide more installation height. Different versions: ABS rings in case colour or chromated, soft TPE ring
- with soft TPE ring protection class IP 54 possible (enclosure versions without battery compartment in ABS or PMMA)

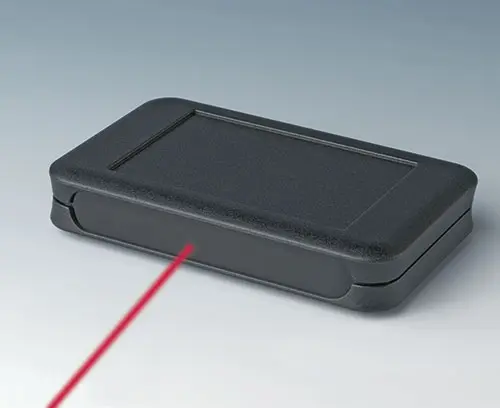

- two materials: ABS (UL 94 HB) or PMMA infra-red light-permeable (UL 94 HB)

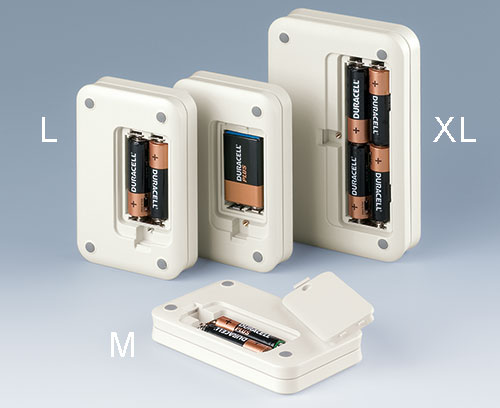

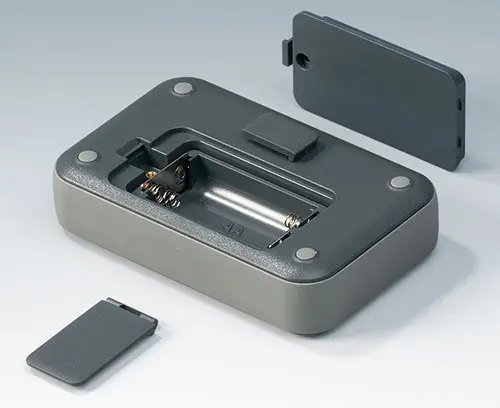

- without/with battery compartment for 2 x AAA, 2 x AA, 4 x AA or 1 x 9 V;
- clip-on battery compartment lid can be screw fixed

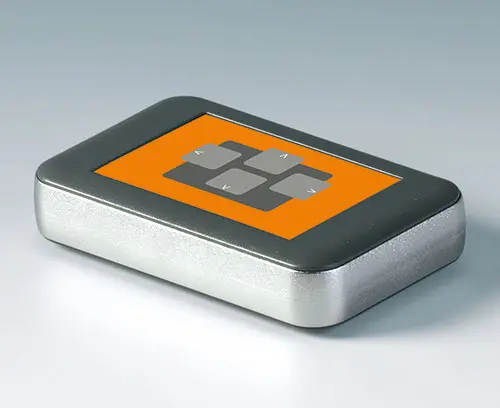

- recessed operating area for protecting the membrane keypad or decorative foil/label

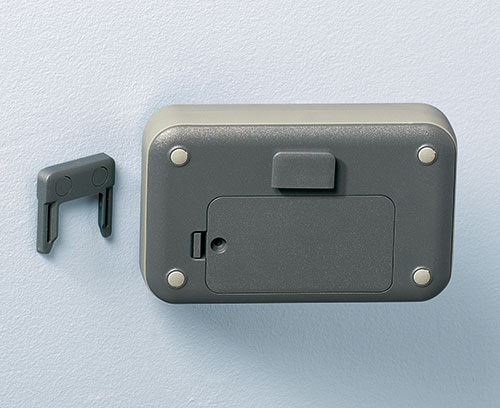

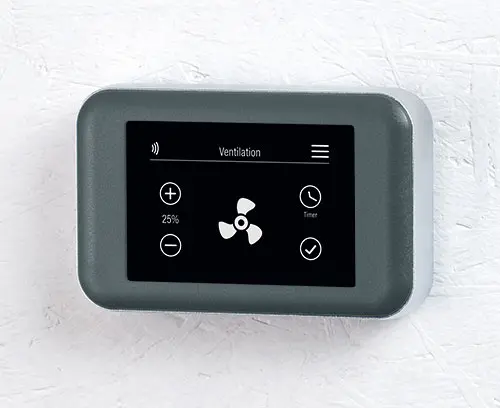

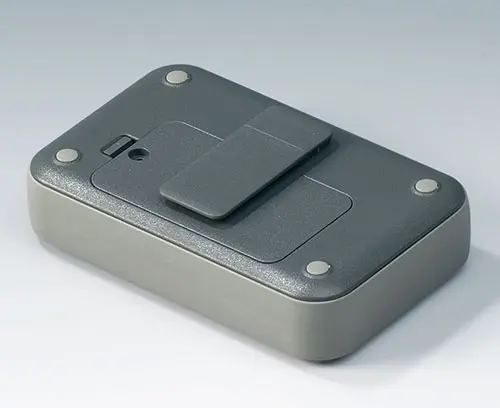

- combi-clip serves as a belt clip and/or wall suspension element (accessory)

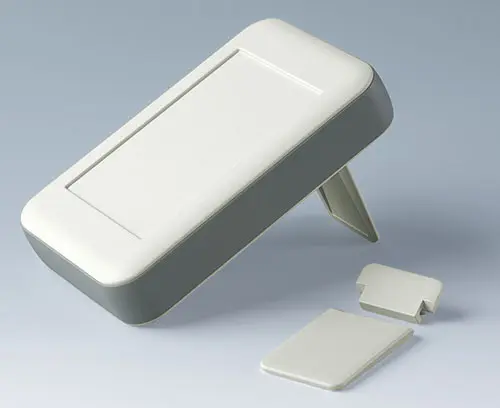

- tilt foot bar for ergonomic canting on a desk
- internal fastening pillars for PCBs
Application Fields

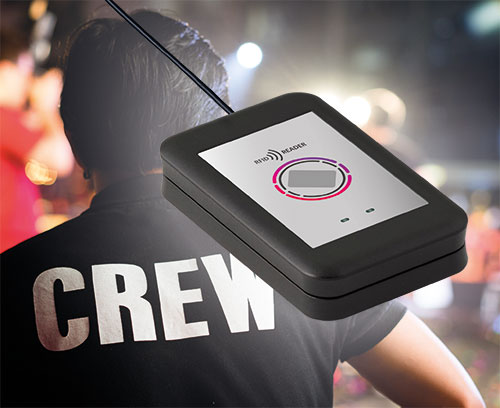

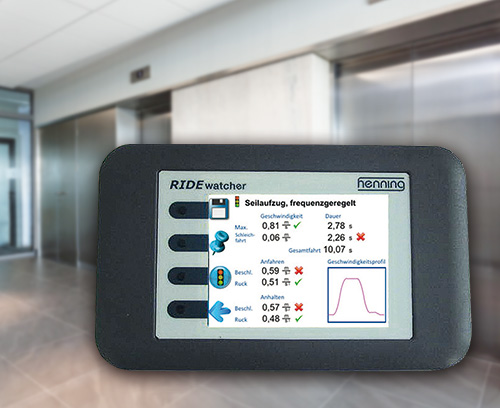

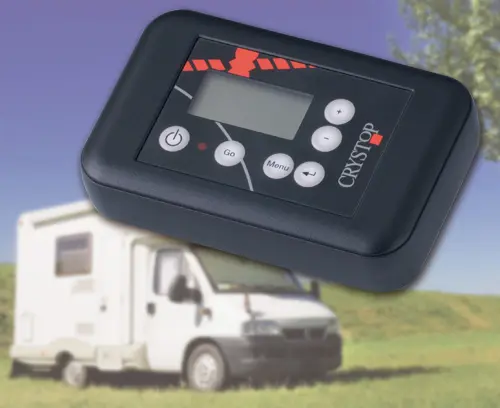

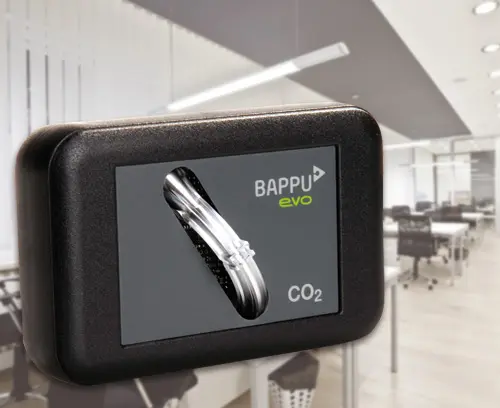

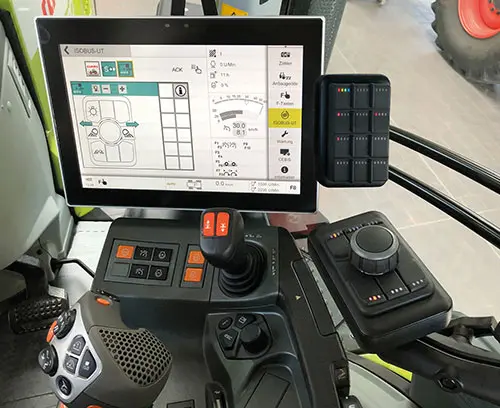

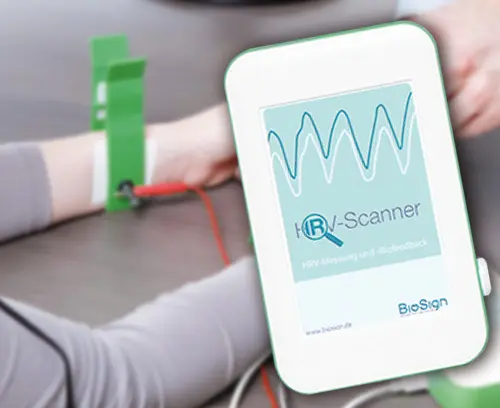

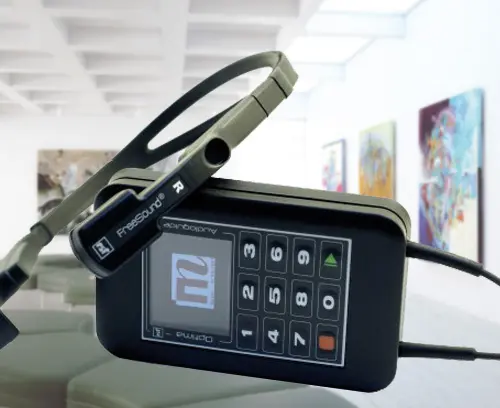

All types of remote control devices, wireless or with cable, measurement and control engineering, digital control technology, medical and laboratory technology, peripheral and interface equipment, communications technology, IoT/IIoT, environmental engineering, energy management, etc.
Select which version/size you want below or browse full product list
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)product added to your basket
A9100001

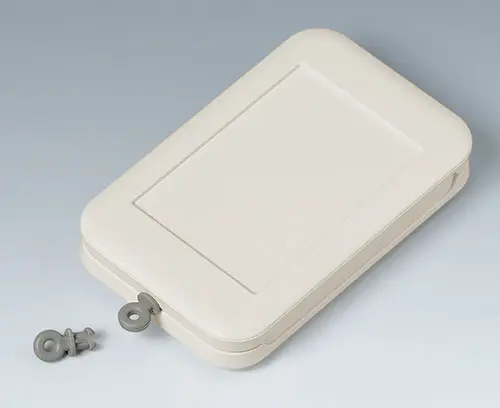

Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletproduct added to your basket
volcano
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletproduct added to your basket
volcano

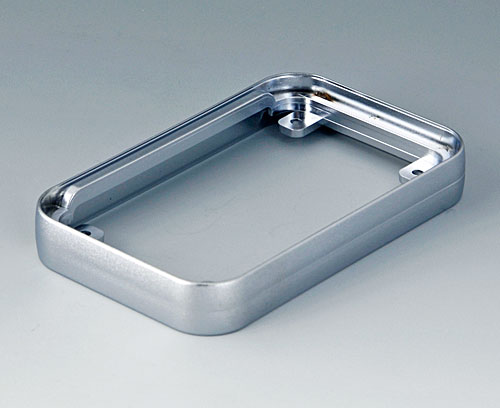

A9150011
Intermediate ring S
Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9150011
Intermediate ring Sproduct added to your basket
matt chromed
54x85x12mm
A9150017

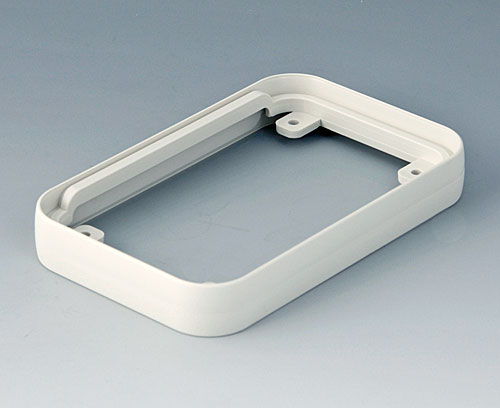

Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150017
Intermediate ring Sproduct added to your basket
off-white RAL 9002
54x85x12mm

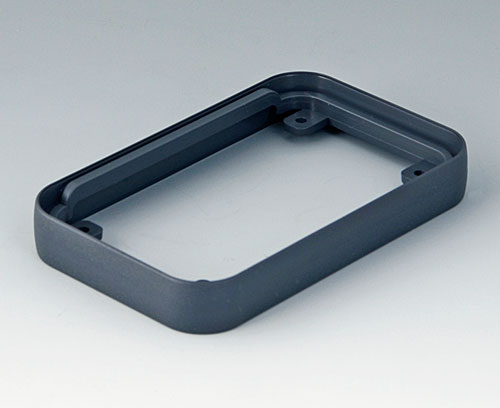

A9150018
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150018
Intermediate ring Sproduct added to your basket
lava
54x85x12mm
A9150118
Intermediate protection ring S
Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9150118
Intermediate protection ring Sproduct added to your basket
volcano
54x85x12mm
A9150219
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9150219
Intermediate ring Sproduct added to your basket
black RAL 9005
54x85x12mm
A9151010
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9151010
Set of battery clips, 2 x AAAproduct added to your basket
nickel-plated

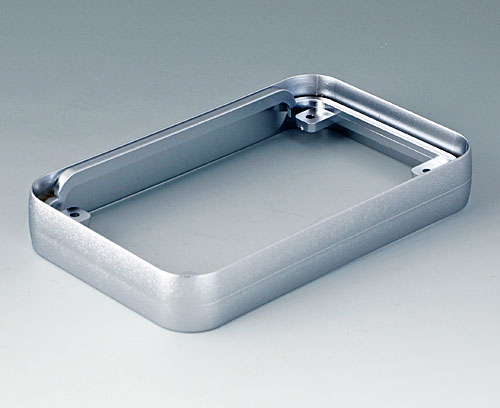

A9151011
Intermediate ring M
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9151011
Intermediate ring Mproduct added to your basket
matt chromed
68x108x16mm
A9151017
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151017
Intermediate ring Mproduct added to your basket
off-white RAL 9002
68x108x16mm
A9151018
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151018
Intermediate ring Mproduct added to your basket
lava
68x108x16mm
A9151118
Intermediate protection ring M
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151118
Intermediate protection ring Mproduct added to your basket
volcano
68x108x16mm
A9151219
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9151219
Intermediate ring Mproduct added to your basket
black RAL 9005
68x108x16mm
A9152010
Set of battery clips, 2/4 x AA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9152010
Set of battery clips, 2/4 x AAproduct added to your basket
nickel-plated
A9152011
Intermediate ring L
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9152011
Intermediate ring Lproduct added to your basket
matt chromed
76x120x21mm
A9152017
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152017
Intermediate ring Lproduct added to your basket
off-white RAL 9002
76x120x21mm

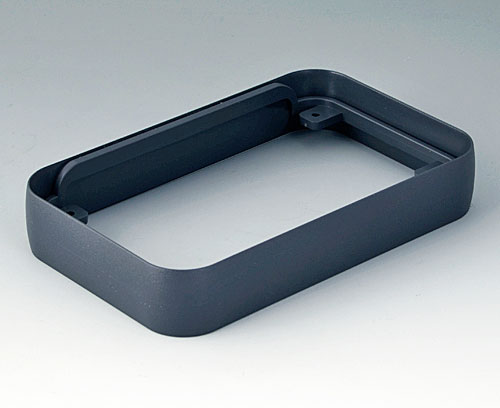

A9152018
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152018
Intermediate ring Lproduct added to your basket
lava
76x120x21mm

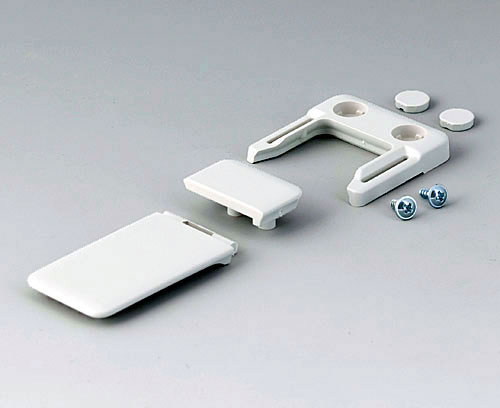

A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-Clipproduct added to your basket
off-white RAL 9002
45x27mm

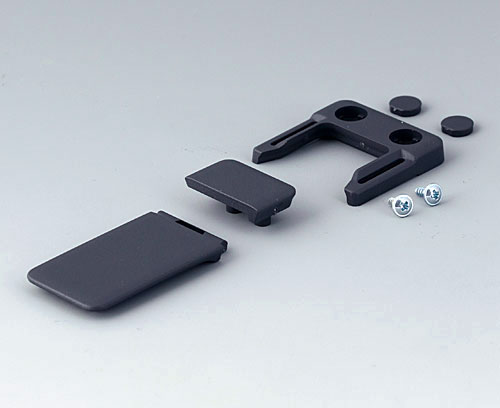

A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-Clipproduct added to your basket
lava
45x27mm

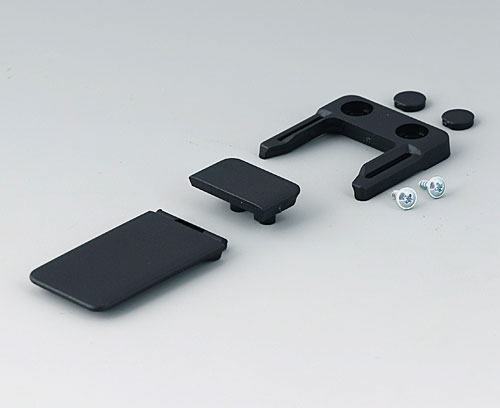

A9152049
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152049
Combi-Clipproduct added to your basket
black RAL 9005
45x27mm

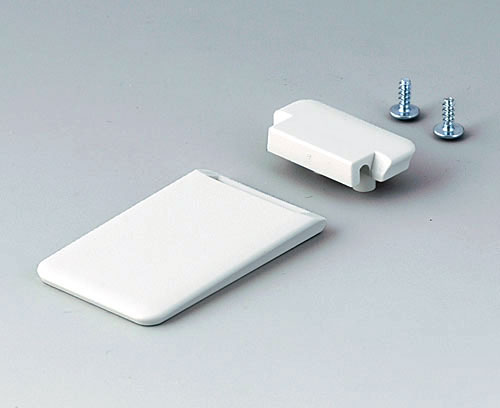

A9152057
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152057
Tilt foot barproduct added to your basket
off-white RAL 9002

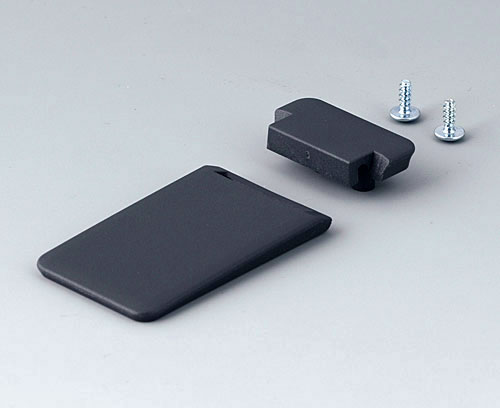

A9152058
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152058
Tilt foot barproduct added to your basket
lava
A9152059
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152059
Tilt foot barproduct added to your basket
black RAL 9005
A9152118
Intermediate protection ring L
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152118
Intermediate protection ring Lproduct added to your basket
volcano
76x120x21mm

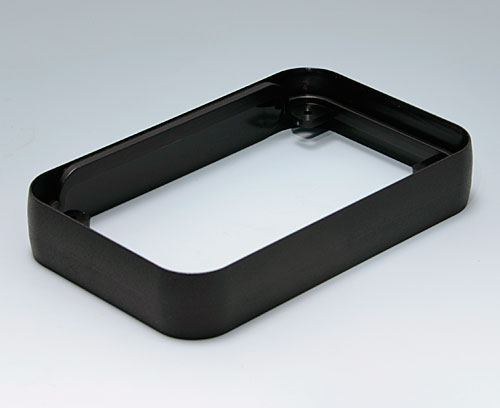

A9152219
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9152219
Intermediate ring Lproduct added to your basket
black RAL 9005
76x120x21mm
A9153011
Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XLproduct added to your basket
matt chromed
96x154x26mm
A9153017
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XLproduct added to your basket
off-white RAL 9002
96x154x26mm
A9153018
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XLproduct added to your basket
lava
96x154x26mm
A9153118
Intermediate ring XL
Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XLproduct added to your basket
volcano
96x154x26mm

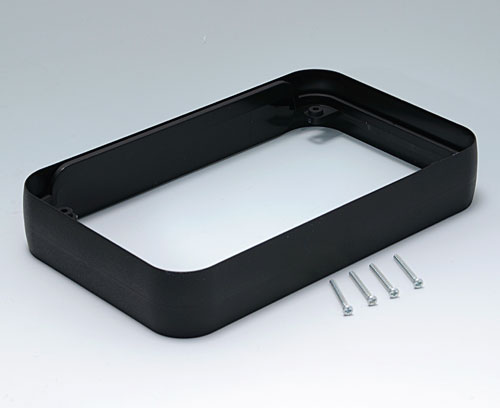

A9153219
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XLproduct added to your basket
black RAL 9005
96x154x26mm
A9174006
Set of battery clips, 1 x 9 V
For contacting the battery.
Supply 2 single contacts
A9174006
Set of battery clips, 1 x 9 Vproduct added to your basket
tin-plated
Customising options for Soft-Case
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
