Accessories for enclosures
A8050500

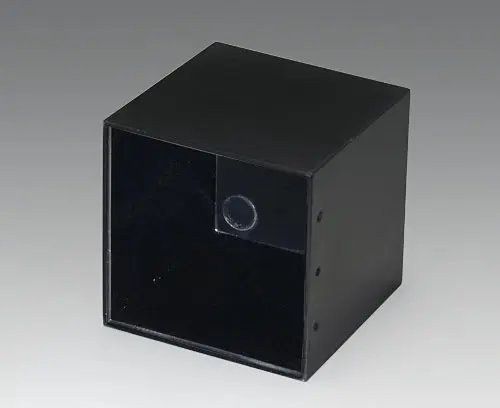

POTTING BOXES, Vers. I
Special case for potting electronic assemblies. Especially resistant to deformation, extreme temperatures, not resistant to fracture. Production-limited surface quality.
Supply1 case
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A8050500
Please select the product details you would like to include in the PDF.
Add to my basket
Customising options for A8050500
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Length
50.7 mm
Width
50.7 mm
Height
49.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 157 KB
- AutoCAD DWG-File 284 KB
- AutoCAD DXF-File 842 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 72 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013721.x_t 237 KB
- 00013721.step 601 KB
- 00013721.sat 469 KB
Weight/1 part
20 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Taiwan
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A8050500 and don't forget to request a quotation!
